Grundfos 99800193 - CM 15-3 P-S-G-V-AQQV H-A-A-N | Horizontal | End Suction | Centrifugal

GRUNDFOSSKU: 99800193

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 99800193 - CM 15-3 P-S-G-V-AQQV H-A-A-N is a high-performance horizontal end suction centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned brand Grundfos, this pump is engineered for reliability and efficiency, making it an ideal choice for both single and multi-stage pumping needs.

This model is part of the CM Service Special series, which is known for its robust construction and versatility. It is suitable for various applications, including water supply, heating, and cooling systems. The CM 15-3 P-S-G-V-AQQV H-A-A-N features a close-coupled design that simplifies installation and maintenance, ensuring optimal performance in demanding environments.

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you're having trouble locating the right item, our experts are here to help!

Explore the reliability and efficiency of the Grundfos CM 15-3 P-S-G-V-AQQV H-A-A-N pump today and experience the quality that Grundfos is known for.

EAN 5713834478604
Approvals CE
Approvals for drinking water WRAS
Built-in motor protection NONE
Cable included (Yes/No) N
Code for rubber V
Code for shaft seal AQQV
Connect code S
Connection 2 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Frame size 132DA
Frequency converter NONE
Gross weight 108.0 lb
Housing Stainless steel
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 3
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Mains frequency 60 Hz
Material code G
Material Pricing Group 35
Max pressure at stated temp 232 psi / 194 °F
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.59
Model A
Motor standard NEMA
Net weight 102.0 lb
Pump housing Stainless steel
Pump speed on which pump data are based 3480 rpm
Pump version P
Pumped liquid Water
Range of ambient temperature -4 .. 131 °F
Rated current 7.55 A
Rated flow 89.8 US gpm
Rated head 197.4 ft
Rated power - P2 5.5 kW
Rated speed 3550 rpm
Rated voltage 3 x 575 V V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Service factor 1
Size 132DA
Size of inlet connection 2 inch
Size of outlet connection 2 inch
Standard NEMA
Starting current 15.4
Suitable for 50/60 Hz N
Terminal box position 12
Type of connection NPT(F)
Version P

Motor Curves

Dimensional Drawing

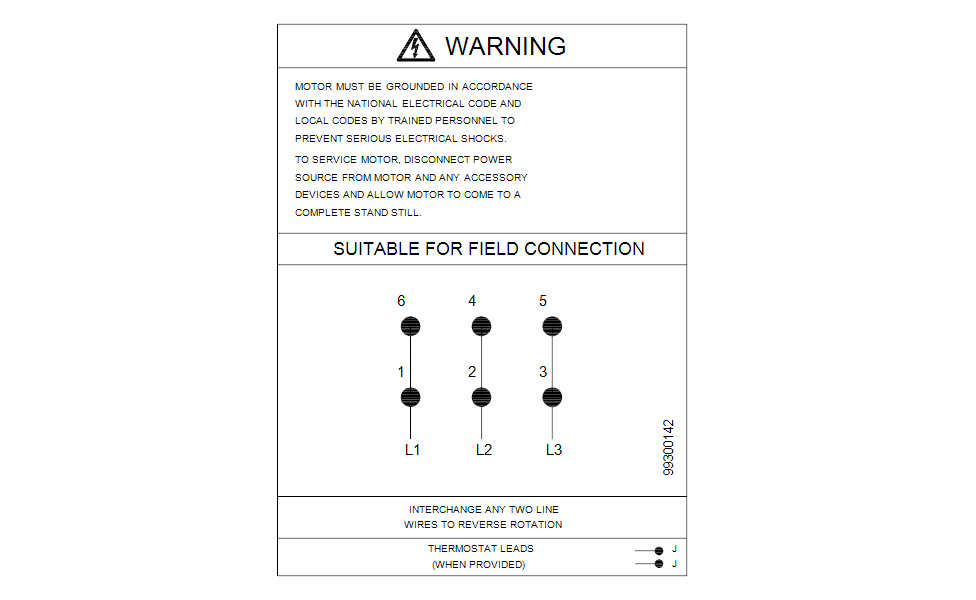

DWiring Diagram
