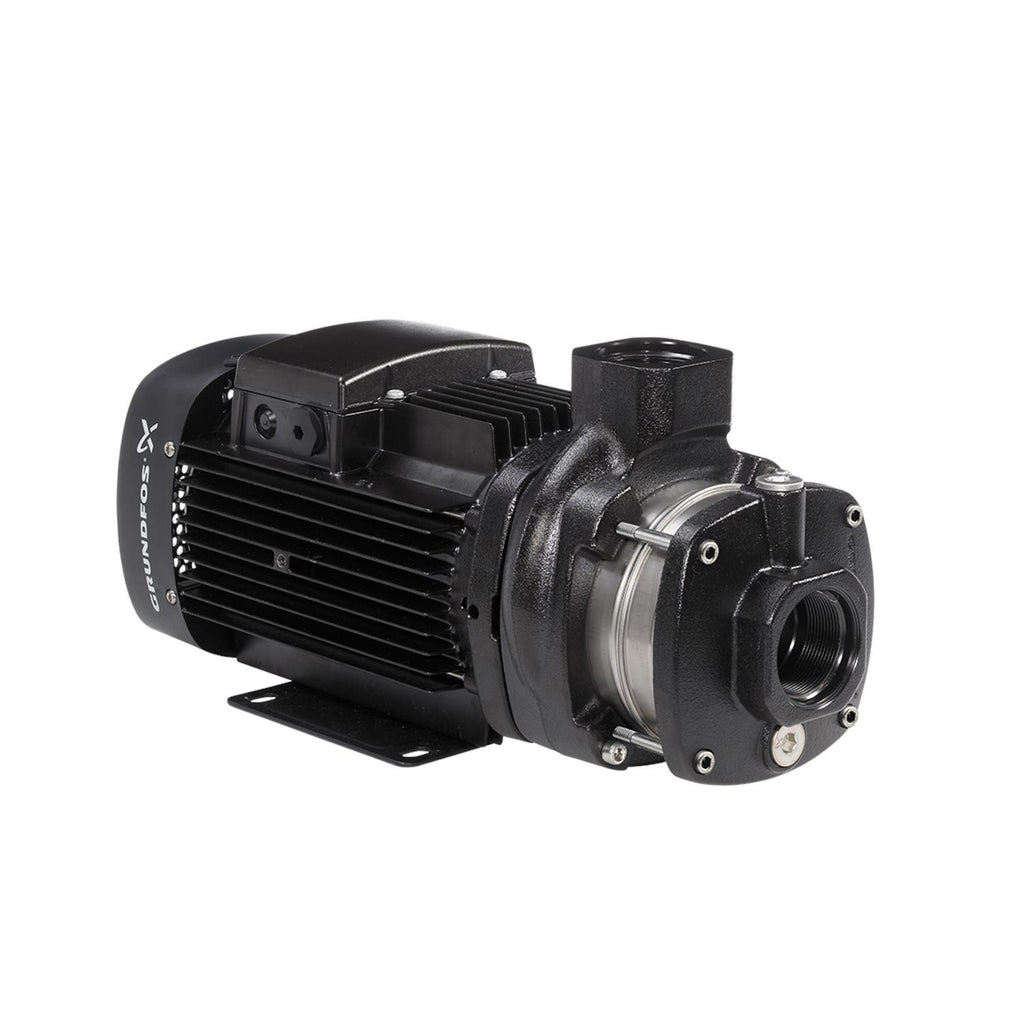

Grundfos 99059746 - CM 15-3 A-S-A-E-AQQE E-A-A-N | Horizontal | End Suction | Centrifugal

Save $1,776.98
GRUNDFOSSKU: 99059746

Price:
Sale price$2,086.02 Regular price$3,863.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

The Grundfos CM 15-3 A-S-A-E-AQQE E-A-A-N is a horizontal, end-suction centrifugal pump suited for industrial and commercial systems where compact, reliable fluid transfer is required. Technicians and facility maintenance teams commonly use this pump in booster and process applications.

Key features

  • Horizontal end-suction centrifugal design for straightforward installation and service
  • Compatible with booster, close-coupled, and multistage system configurations
  • Provides reliable, efficient pumping performance to support continuous operation

Applications

Typical uses include building booster systems, HVAC circulation, light industrial process pumping, and general water transfer tasks where a compact centrifugal unit is appropriate.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99059746

EAN 5712605981732
Applications Heating, Air-conditioning, Pressure boosting, Domestic water supply, Industrial applications
Approvals CE
Approvals for drinking water WRAS
Built-in motor protection NONE
Cable included (Yes/No) N
Code for rubber E
Code for shaft seal AQQE
Connect code S
Connection 2 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Frame size 132EB
Frequency converter NONE
Gross weight 126.0 lb
Housing Cast iron
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 3
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Mains frequency 60 Hz
Material code A
Material Pricing Group 35
Max pressure at stated temp 145 psi / 194 °F
Maximum operating pressure 10 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor standard NEMA
Net weight 121.0 lb
Outlet position 12
Product family CM
Pump housing Cast iron
Pump speed on which pump data are based 3480 rpm
Pump version A
Pumped liquid Water
Range of ambient temperature -4 .. 131 °F
Rated current 23
Rated flow 89.8 US gpm
Rated head 210.8 ft
Rated power - P2 6.4 kW
Rated speed 3530-3550 rpm
Rated voltage 3 x 208-230YY/440-480Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1
Size 132EB
Size of inlet connection 2 inch
Size of outlet connection 2 inch
Standard NEMA
Suitable for 50/60 Hz N
Terminal box position 12
Type of connection NPT(F)
Version A

Motor Curves

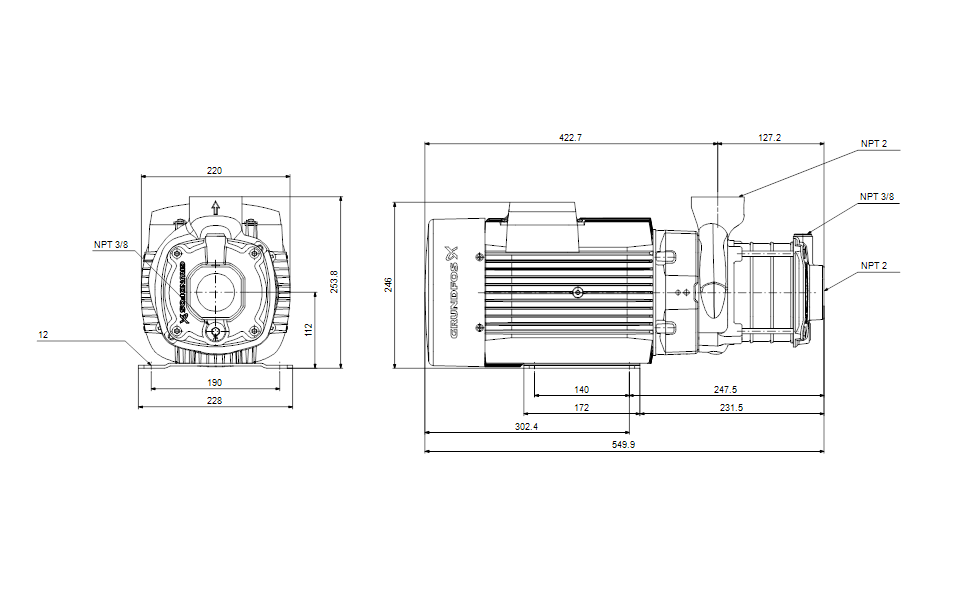

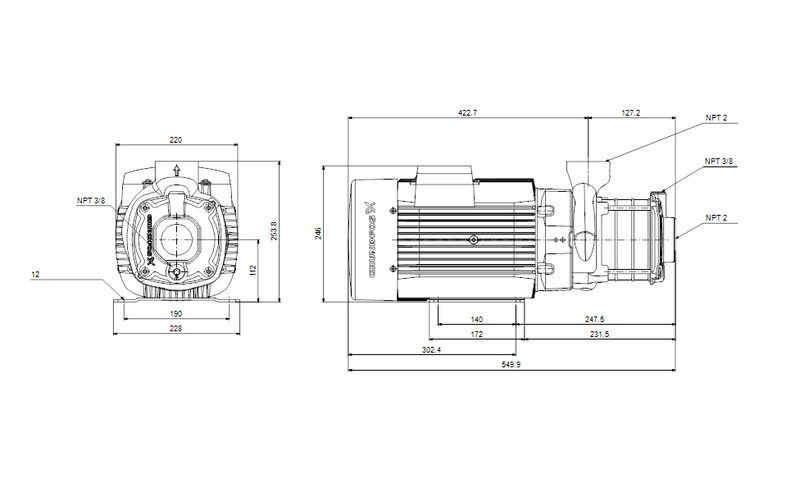

Dimensional Drawing

DWiring Diagram
