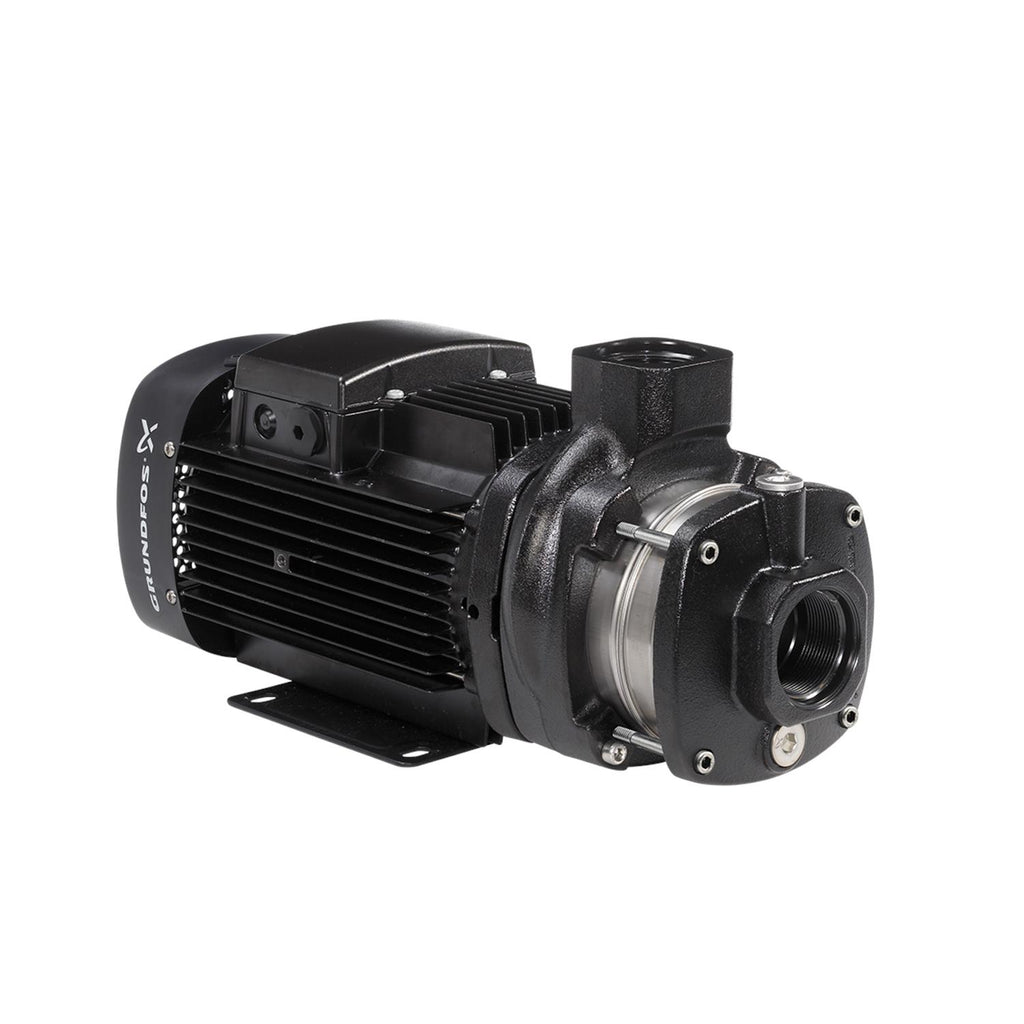

Grundfos 98667856 - CM 15-3 A-R-A-E-AQQE J-A-A-N | Horizontal | End Suction | Centrifugal

GRUNDFOSSKU: 98667856

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

This Grundfos CM 15-3 centrifugal pump is a horizontal, end-suction unit suited for industrial fluid handling and building services. Contractors and maintenance teams use this model for general-purpose pumping where reliable performance is required.

Key features

  • Manufactured by Grundfos for industrial and commercial applications
  • Centrifugal, end-suction horizontal design suitable for close-coupled installations
  • Provides efficient fluid transfer and simplified maintenance for routine service tasks

Applications

Typical uses include booster systems, HVAC circulation, light industrial process pumping, and other general centrifugal duties where a horizontal end-suction pump is specified.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 98667856

EAN 5711499257893
Applications Heating, Air-conditioning, Pressure boosting, Domestic water supply, Industrial applications
Approvals CE
Approvals for drinking water WRAS
Built-in motor protection NONE
Cable included (Yes/No) N
Code for rubber E
Code for shaft seal AQQE
Connect code R
Connection 2 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Frame size 132EB
Frequency converter NONE
Gross weight 126.0 lb
Housing Cast iron
IE Efficiency class IE3
Impeller Stainless steel
Impellers 3
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Mains frequency 50 Hz
Material code A
Material Pricing Group 35
Max pressure at stated temp 145 psi / 194 °F
Maximum operating pressure 10 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor standard IEC
Net weight 121.0 lb
Outlet position 12
Product family CM
Pump housing Cast iron
Pump speed on which pump data are based 2900 rpm
Pump version A
Pumped liquid Water
Range of ambient temperature -4 .. 131 °F
Rated current 9.45-10.6 A
Rated flow 89.8 US gpm
Rated head 210.8 ft
Rated power - P2 3.7 kW
Rated speed 2960-2970 rpm
Rated voltage 3 x 380-415 V V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1
Size 132EB
Size of inlet connection 2 inch
Size of outlet connection 2 inch
Standard IEC
Starting current 1660-1690 %
Suitable for 50/60 Hz Y
Terminal box position 12
Type of connection Rp
Version A

Motor Curves

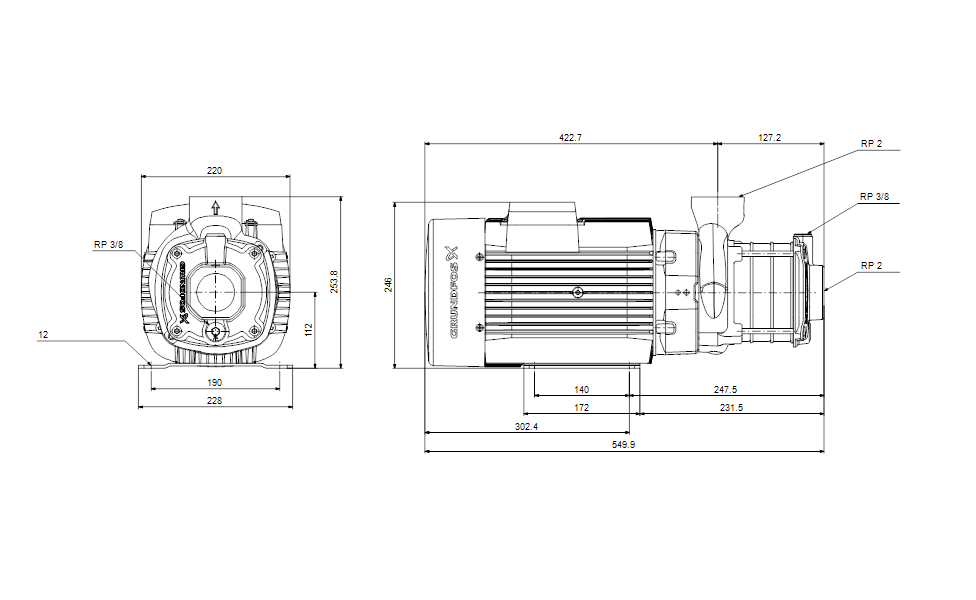

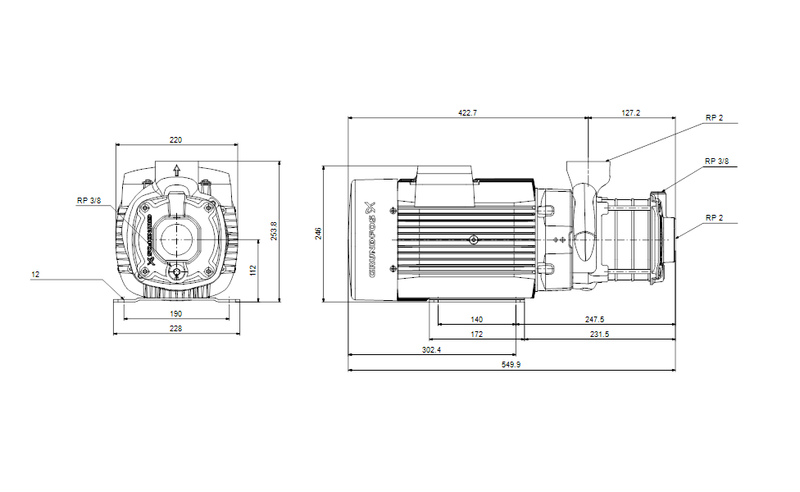

Dimensional Drawing

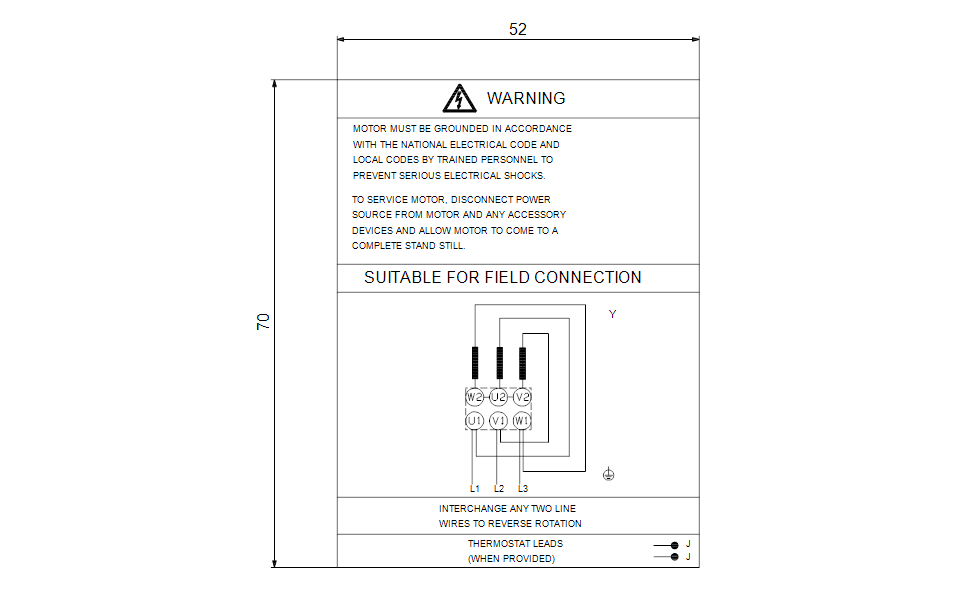

DWiring Diagram
