Grundfos 99838516 - CM 15-2 X-S-I-V-AQQV J-A-A-N | Horizontal | End Suction | Centrifugal

GRUNDFOSSKU: 99838516

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 99838516 - CM 15-2 X-S-I-V-AQQV J-A-A-N is a horizontal, end-suction centrifugal pump suited for industrial and commercial service technicians and plant maintenance crews.

Key features

  • Designed for a range of industrial applications and service replacements
  • Fits applications listed under centrifugal, booster, close-coupled, and multistage pump categories
  • Delivers reliable end-suction performance for general pumping and system support

Applications

Commonly used for building services, booster systems, HVAC circulation, light industrial transfer, and general process pumping where a horizontal end-suction centrifugal is specified.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99838516

EAN 5713835002686
Approvals CE
Built-in motor protection NONE
Cable included (Yes/No) N
Code for rubber V
Code for shaft seal AQQV
Connect code S
Connection 2 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Frame size 112CA
Frequency converter NONE
Gross weight 108.0 lb
Housing Stainless steel
IE Efficiency class IE3
Impeller Stainless steel
Impellers 2
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Mains frequency 50 Hz
Material code I
Material Pricing Group 35
Max pressure at stated temp 232 psi / 194 °F
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.59
Model A
Motor standard NEMA
Net weight 102.0 lb
Pump housing Stainless steel
Pump speed on which pump data are based 2900 rpm
Pump version X
Pumped liquid Water
Range of ambient temperature -4 .. 131 °F
Rated current 5.2-5.1 A
Rated flow 89.8 US gpm
Rated head 126.7 ft
Rated power - P2 2.3 kW
Rated speed 2960-2970 rpm
Rated voltage 3 x 380-415 V V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Service factor 1
Size 112CA
Size of inlet connection 2 inch
Size of outlet connection 2 inch
Standard NEMA
Starting current 1550-1535 %
Suitable for 50/60 Hz Y
Terminal box position 12
Type of connection NPT(F)
Version X

Motor Curves

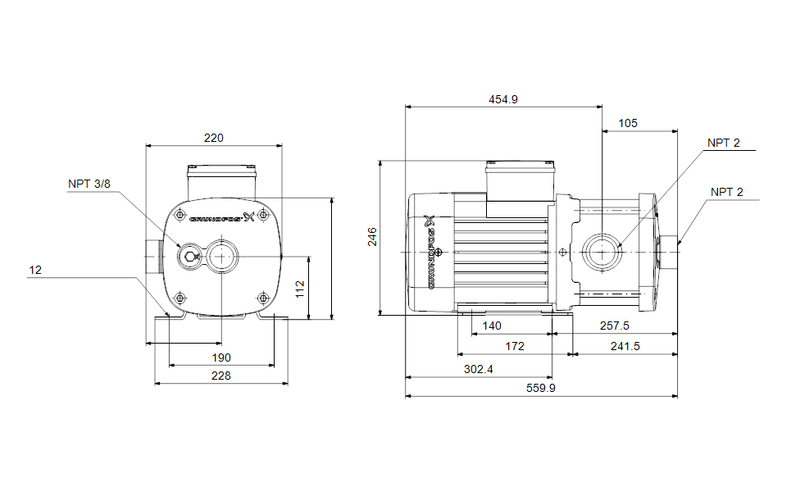

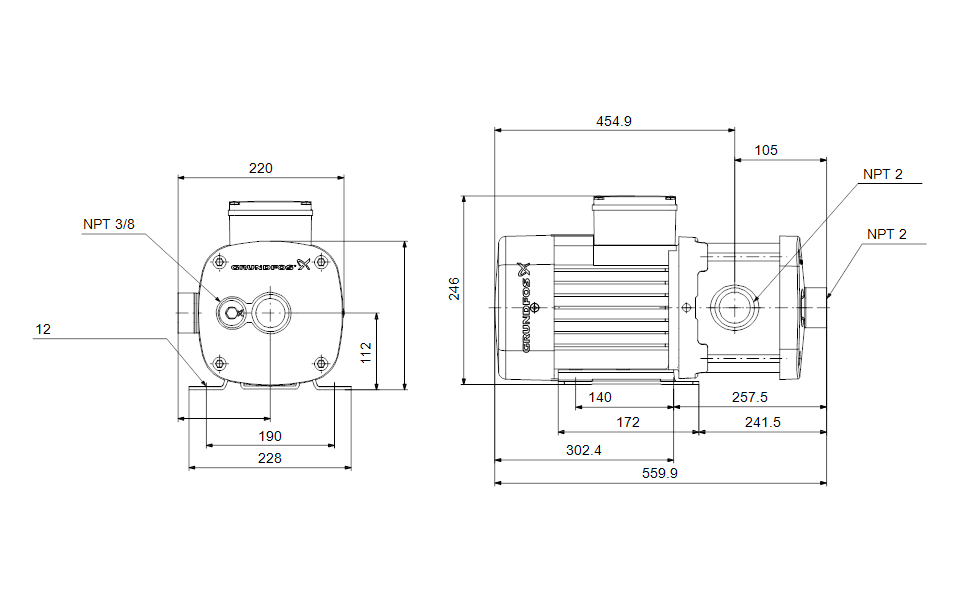

Dimensional Drawing

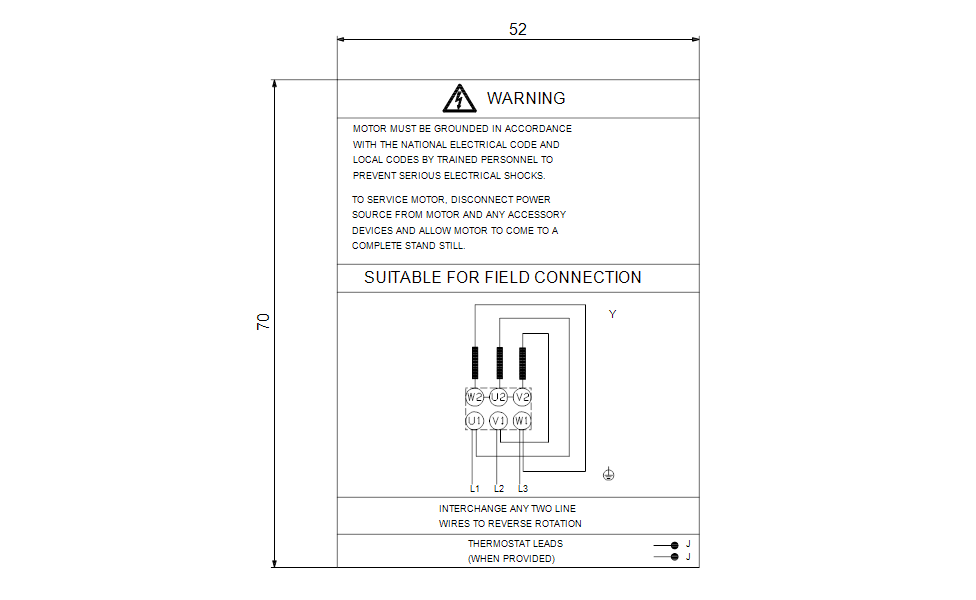

DWiring Diagram
