Grundfos 99377534 - CM 15-2 A-S-G-E-AQQE H-A-A-N | Horizontal | End Suction | Centrifugal

GRUNDFOSSKU: 99377534

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 99377534 is a CM series horizontal end-suction centrifugal pump used in industrial and commercial fluid handling. The CM 15-2 A-S-G-E-AQQE H-A-A-N configuration suits users needing a compact, robust pump for boosting and transfer applications.

Key features

  • Horizontal end-suction centrifugal design for straightforward installation and serviceability
  • Part of the CM family compatible with booster and close-coupled applications
  • Provides reliable fluid transfer and pressure boosting for general industrial use

Applications

Typical uses include building services, pressure boosting, process water transfer, and general industrial liquid handling where a compact centrifugal pump is required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99377534

EAN 5713828122216
Applications Heating, Air-conditioning, Pressure boosting, Domestic water supply, Industrial applications
Approvals CE
Approvals for drinking water WRAS
Built-in motor protection NONE
Cable included (Yes/No) N
Code for rubber E
Code for shaft seal AQQE
Connect code S
Connection 2 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Frame size 112CA
Frequency converter NONE
Gross weight 108.0 lb
Housing Stainless steel
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 2
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Mains frequency 60 Hz
Material code G
Material Pricing Group 35
Max pressure at stated temp 232 psi / 194 °F
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.59
Model A
Motor standard NEMA
Net weight 102.0 lb
Outlet position 12
Product family CM
Pump housing Stainless steel
Pump speed on which pump data are based 3480 rpm
Pump version A
Pumped liquid Water
Range of ambient temperature -4 .. 131 °F
Rated current 5.35 A
Rated flow 89.8 US gpm
Rated head 126.7 ft
Rated power - P2 4 kW
Rated speed 3550 rpm
Rated voltage 3 x 575 V V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1
Size 112CA
Size of inlet connection 2 inch
Size of outlet connection 2 inch
Standard NEMA
Starting current 13.55
Suitable for 50/60 Hz N
Terminal box position 12
Type of connection NPT(F)
Version A

Motor Curves

Dimensional Drawing

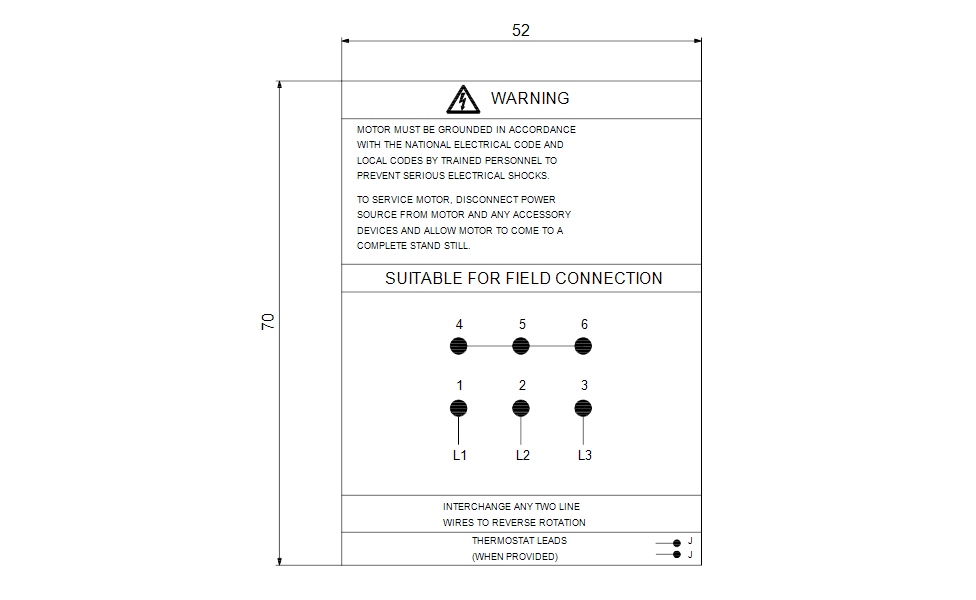

DWiring Diagram
