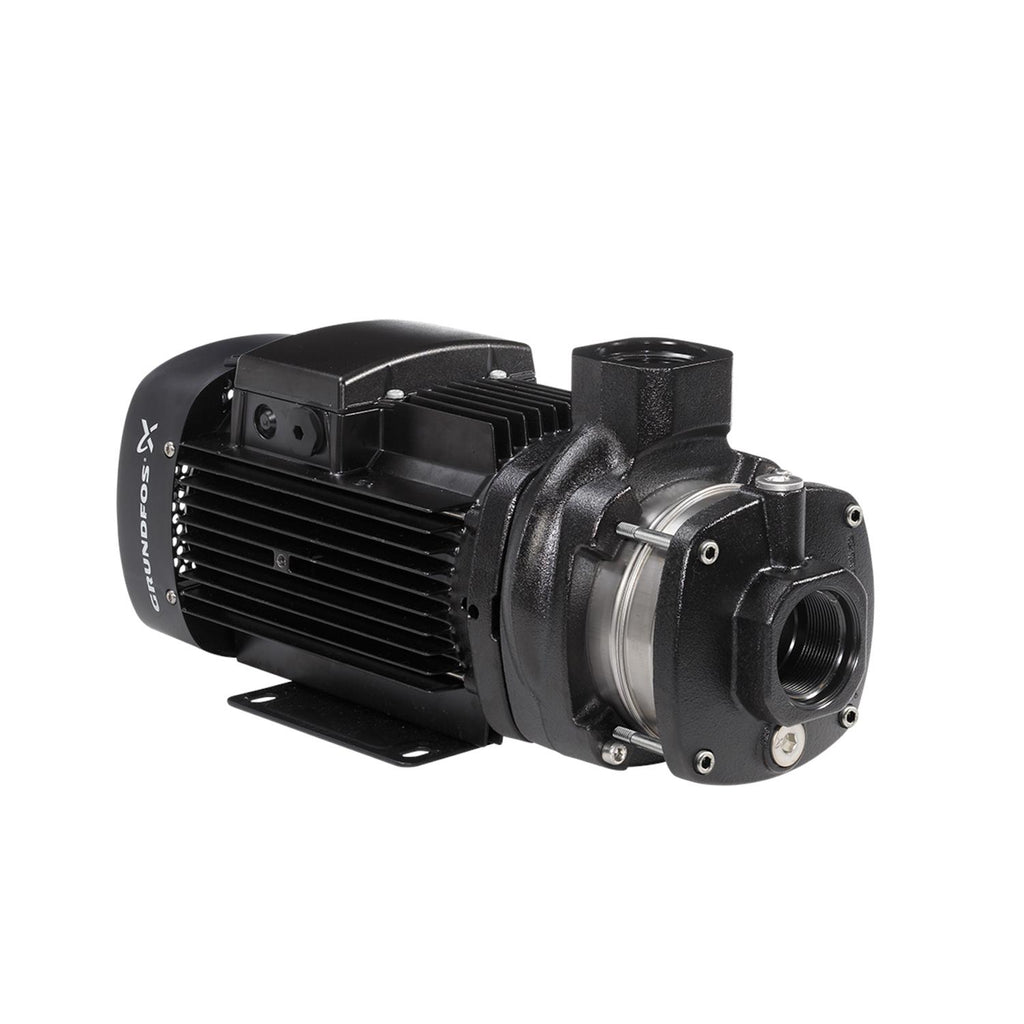

Grundfos 99377521 - CM 15-2 A-S-A-V-AQQV H-A-A-N | Horizontal | End Suction | Centrifugal

GRUNDFOSSKU: 99377521

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 99377521 is a CM-series horizontal end-suction centrifugal pump suited for industrial and commercial fluid handling. The CM 15-2 A-S-A-V-AQQV H-A-A-N model fits applications requiring compact, reliable pumping performance.

Key features

  • Manufactured for various industrial applications, providing durable construction and consistent operation
  • Compatible with centrifugal, close-coupled, and horizontal multistage configurations as indicated by product tags
  • End-suction design offers straightforward installation and serviceability for routine maintenance

Applications

Typical uses include booster systems, HVAC and hydronic circulation, water transfer, pressure boosting, and general industrial process pumping.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99377521

EAN 5713828122155
Applications Heating, Air-conditioning, Pressure boosting, Domestic water supply, Industrial applications
Approvals CE
Approvals for drinking water WRAS
Built-in motor protection NONE
Cable included (Yes/No) N
Code for rubber V
Code for shaft seal AQQV
Connect code S
Connection 2 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Frame size 112CA
Frequency converter NONE
Gross weight 117.0 lb
Housing Cast iron
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 2
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Mains frequency 60 Hz
Material code A
Material Pricing Group 35
Max pressure at stated temp 145 psi / 194 °F
Maximum operating pressure 10 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor standard NEMA
Net weight 112.0 lb
Outlet position 12
Product family CM
Pump housing Cast iron
Pump speed on which pump data are based 3480 rpm
Pump version A
Pumped liquid Water
Range of ambient temperature -4 .. 131 °F
Rated current 5.35 A
Rated flow 89.8 US gpm
Rated head 140.2 ft
Rated power - P2 4 kW
Rated speed 3550 rpm
Rated voltage 3 x 575 V V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Service factor 1
Size 112CA
Size of inlet connection 2 inch
Size of outlet connection 2 inch
Standard NEMA
Starting current 13.55
Suitable for 50/60 Hz N
Terminal box position 12
Type of connection NPT(F)
Version A

Motor Curves

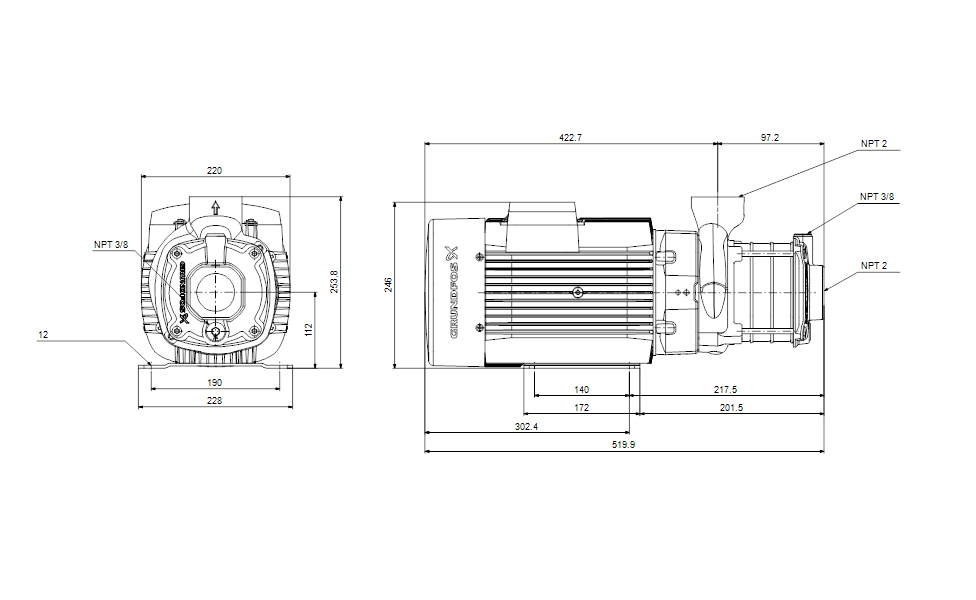

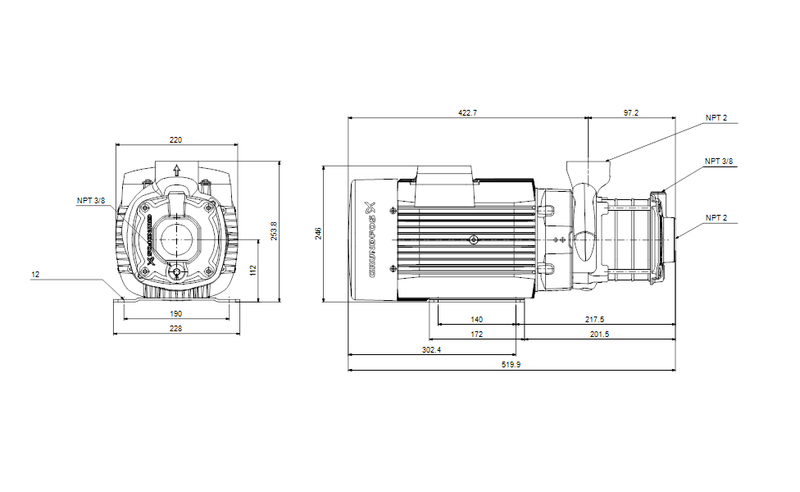

Dimensional Drawing

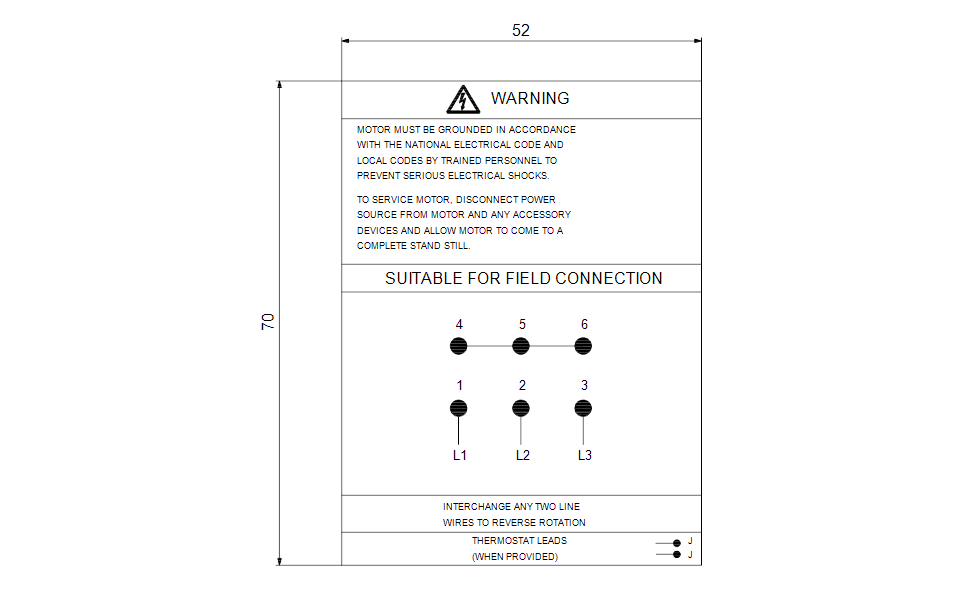

DWiring Diagram
