Grundfos 96807002 - CM 15-2 A-S-G-E-AVBE E-A-A-N | Horizontal | End Suction | Centrifugal

GRUNDFOSSKU: 96807002

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 96807002 is a horizontal, end-suction centrifugal pump (CM 15-2 A-S-G-E-AVBE E-A-A-N) designed for industrial and commercial fluid handling. It is intended for use by maintenance technicians, contractors, and facility managers needing a compact, reliable replacement unit.

Key features

  • End-suction centrifugal design for general duty pumping
  • Compatible with CM series and horizontal/multistage centrifugal applications
  • Provides dependable performance and straightforward installation for common booster and process systems

Applications

Suitable for booster systems, HVAC fluid circulation, light industrial process pumping, and other general centrifugal pump duties where a compact horizontal unit is required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 96807002

EAN 5700310919492
Applications Heating, Air-conditioning, Pressure boosting, Domestic water supply, Industrial applications
Approvals CE
Approvals for drinking water ACS
Built-in motor protection NONE
Cable included (Yes/No) N
Code for rubber E
Code for shaft seal AVBE
Connect code S
Connection 2 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Frame size 100BB
Frequency converter NONE
Gross weight 83.1 lb
Housing Stainless steel
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 2
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Mains frequency 60 Hz
Material code G
Material Pricing Group 35
Max pressure at stated temp 145 psi / 104 °F
Maximum operating pressure 10 bar
Minimum efficiency index, MEI ≥ 0.59
Model A
Motor standard NEMA
Net weight 77.5 lb
Outlet position 12
Product family CM
Pump housing Stainless steel
Pump speed on which pump data are based 3480 rpm
Pump version A
Pumped liquid Water
Range of ambient temperature -4 .. 131 °F
Rated current 14
Rated flow 89.8 US gpm
Rated head 126.7 ft
Rated power - P2 4 kW
Rated speed 3520-3530 rpm
Rated voltage 3 x 220-230YY/440-480Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1
Size 100BB
Size of inlet connection 2 inch
Size of outlet connection 2 inch
Standard NEMA
Suitable for 50/60 Hz N
Terminal box position 12
Type of connection NPT(F)
Version A

Motor Curves

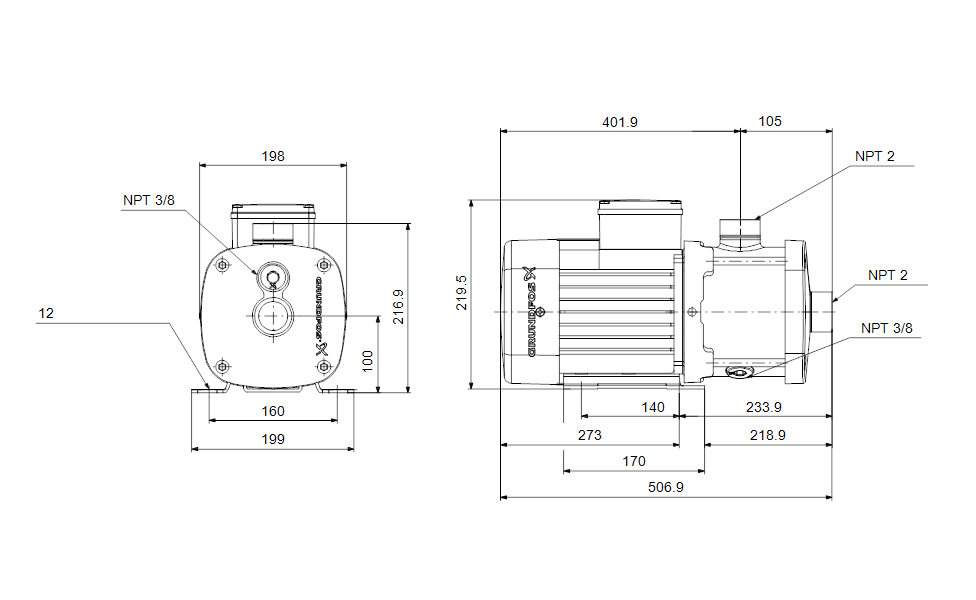

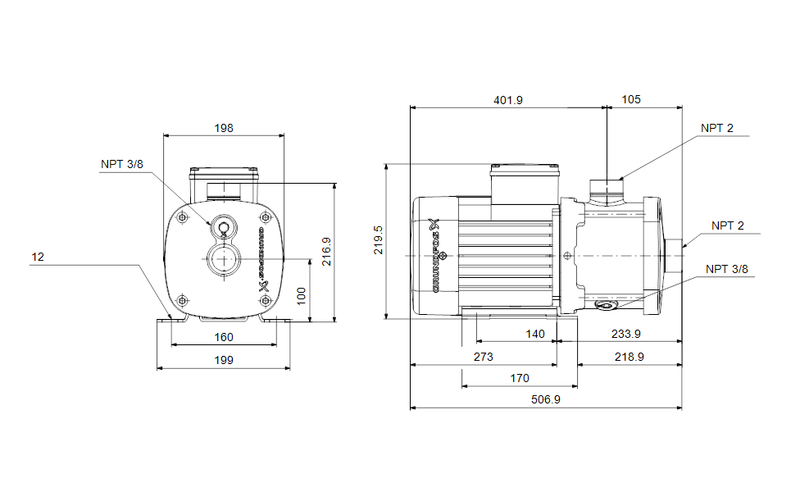

Dimensional Drawing

DWiring Diagram
