Grundfos 97798776 - CM 15-1 A-R-A-V-AQQV J-A-A-N | Horizontal | End Suction | Centrifugal

GRUNDFOSSKU: 97798776

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97798776 - CM 15-1 A-R-A-V-AQQV J-A-A-N

The Grundfos 97798776 - CM 15-1 A-R-A-V-AQQV J-A-A-N is a high-performance horizontal end suction centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned vendor Grundfos, this pump is engineered for reliability and efficiency, making it an ideal choice for both single and multi-stage pumping needs.

As a part of the Grundfos Centrifugal Pumps range, the CM 15-1 model is particularly suited for boosting water pressure and handling various fluids in commercial and industrial settings. Its robust design ensures longevity and optimal performance, even in demanding environments.

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5710625129301
Approvals CE
Approvals for drinking water WRAS
Built-in motor protection NONE
Cable included (Yes/No) N
Code for rubber V
Code for shaft seal AQQV
Connect code R
Connection 2 inch
Curve tolerance ISO9906:2012 3B
Density 998.2 kg/m³
Enclosure class (IEC 34-5) IP55
Frame size 90HA
Frequency converter NONE
Gross weight 35.5 kg
Housing Cast iron
IE Efficiency class IE3
Impeller Stainless steel
Impellers 1
Insulation class (IEC 85) F
Liquid temperature range -20 .. 90 °C
Mains frequency 50 Hz
Material code A
Material Pricing Group 35
Max pressure at stated temp 10 bar / 90 °C
Maximum operating pressure 10 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor standard IEC
Net weight 33.0 kg
Pump housing Cast iron
Pump speed on which pump data are based 2900 rpm
Pump version A
Pumped liquid Water
Range of ambient temperature -20 .. 55 °C
Rated current 3.50-3.80 A
Rated flow 17 m³/h
Rated head 21.19 m
Rated power - P2 1.45 kW
Rated speed 2950-2955 rpm
Rated voltage 3 x 380-415 V V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 20 °C
Service factor 1
Size 90HA
Size of inlet connection 2 inch
Size of outlet connection 2 inch
Standard IEC
Starting current 1040-1090 %
Suitable for 50/60 Hz Y
Terminal box position 12
Type of connection Rp
Version A

Motor Curves

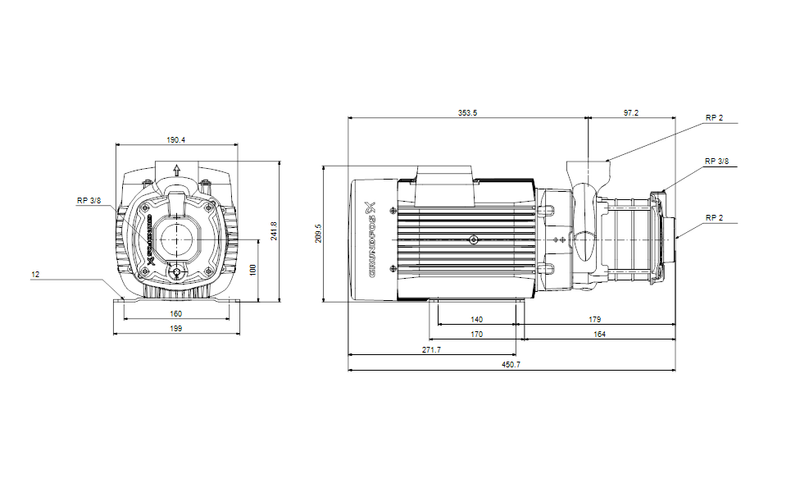

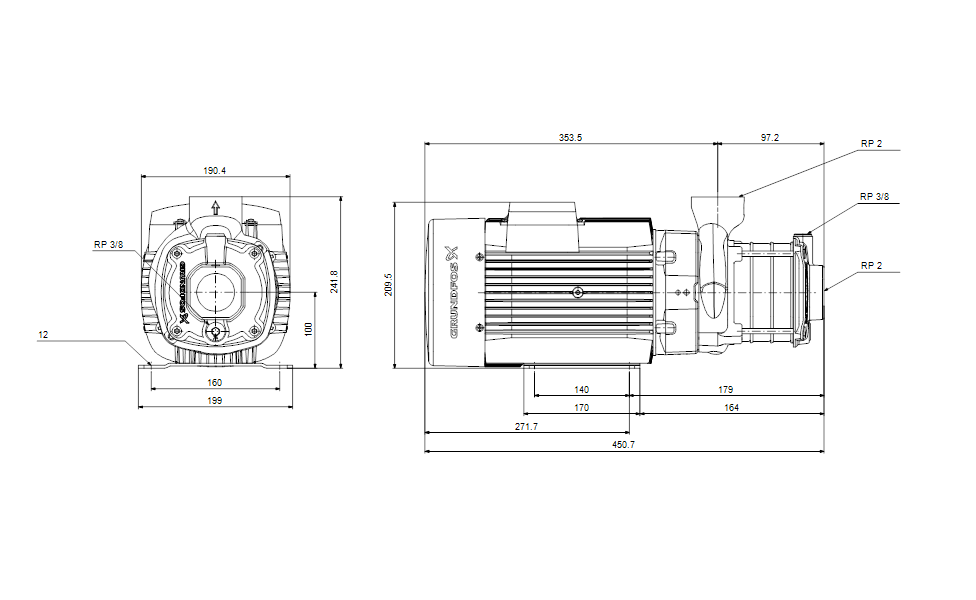

Dimensional Drawing

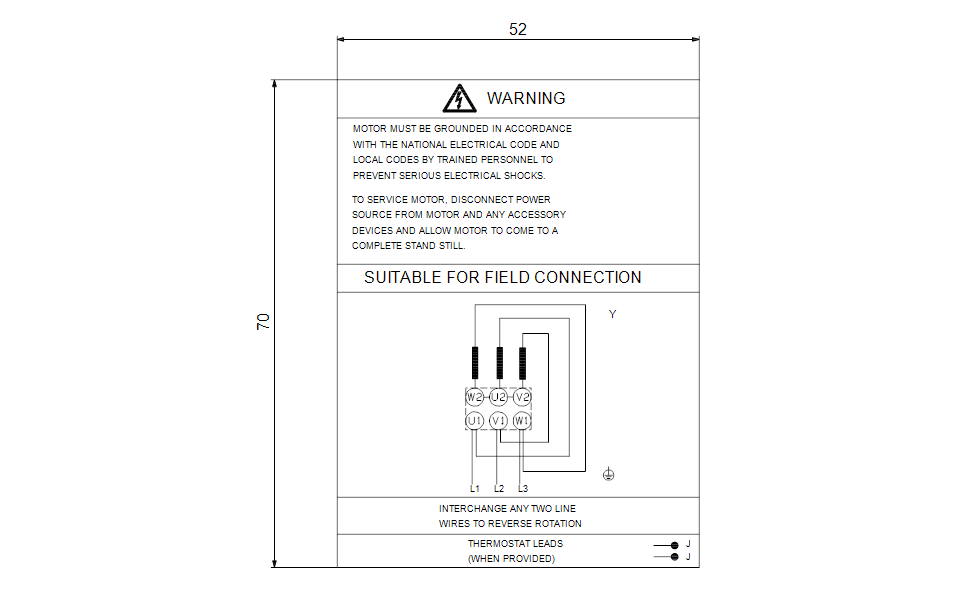

DWiring Diagram
