Grundfos 97568819 - CM 15-1 A-R-A-E-AQQE J-A-A-N | Horizontal | End Suction | Centrifugal

GRUNDFOSSKU: 97568819

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 97568819 CM 15-1 A-R-A-E-AQQE J-A-A-N is a horizontal, end-suction centrifugal pump suited for industrial and commercial fluid transfer. Typical users include maintenance teams and contractors seeking a replacement for centrifugal pump systems.

Key features

  • Service Special unit designed for repair and replacement scenarios
  • Centrifugal, end-suction horizontal configuration for common pump installations
  • Provides reliable fluid transfer and ease of replacement to minimize downtime

Applications

Suitable for general industrial pumping, booster systems, HVAC circulation, and facility maintenance where centrifugal or close-coupled horizontal units are used.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 97568819

EAN 5700318677271
Approvals CE
Approvals for drinking water WRAS
Built-in motor protection NONE
Cable included (Yes/No) N
Code for rubber E
Code for shaft seal AQQE
Connect code R
Connection 2 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Frame size 90HA
Frequency converter NONE
Gross weight 78.3 lb
Housing Cast iron
IE Efficiency class IE3
Impeller Stainless steel
Impellers 1
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Mains frequency 50 Hz
Material code A
Material Pricing Group 35
Max pressure at stated temp 145 psi / 194 °F
Maximum operating pressure 10 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor standard IEC
Net weight 72.7 lb
Pump housing Cast iron
Pump speed on which pump data are based 2900 rpm
Pump version A
Pumped liquid Water
Range of ambient temperature -4 .. 131 °F
Rated current 3.50-3.80 A
Rated flow 74.8 US gpm
Rated head 69.52 ft
Rated power - P2 1.45 kW
Rated speed 2950-2955 rpm
Rated voltage 3 x 380-415 V V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1
Size 90HA
Size of inlet connection 2 inch
Size of outlet connection 2 inch
Standard IEC
Starting current 1040-1090 %
Suitable for 50/60 Hz Y
Terminal box position 12
Type of connection Rp
Version A

Motor Curves

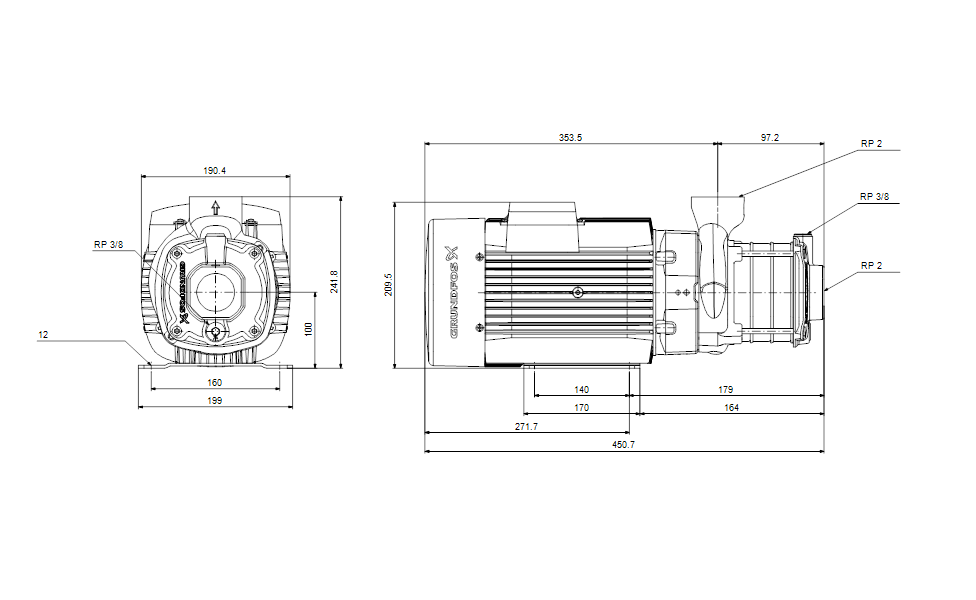

Dimensional Drawing

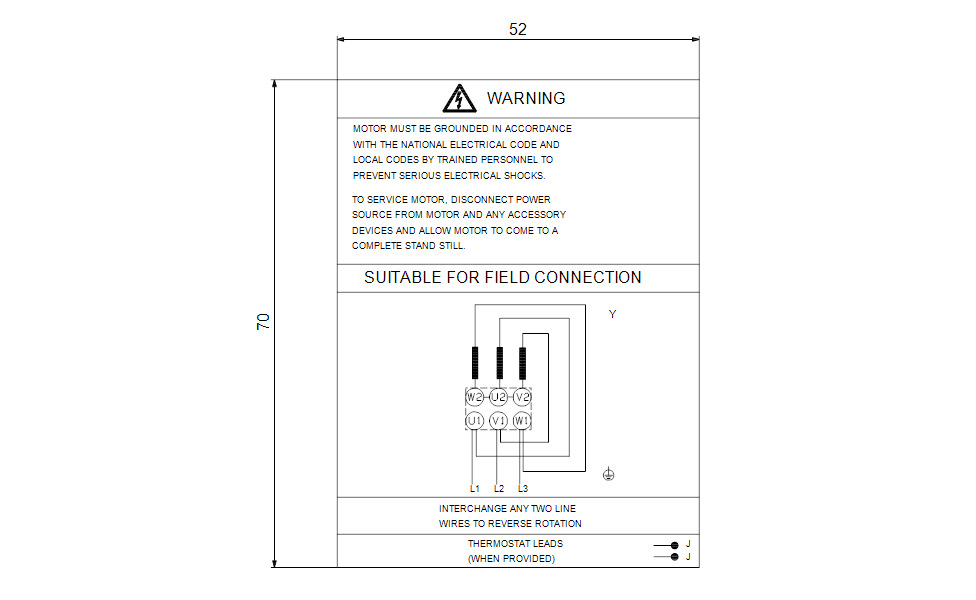

DWiring Diagram
