Grundfos 98853784 - CM 10-3 A-R-I-E-AQQE J-A-A-N | Horizontal | End Suction | Centrifugal

GRUNDFOSSKU: 98853784

Price:
Sale price$4,450.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 98853784 — CM 10-3 A-R-I-E-AQQE J-A-A-N is a horizontal end-suction centrifugal pump intended for industrial and commercial fluid handling. This CM-series unit suits users needing a compact, close-coupled solution for general service and booster applications.

Key features

  • CM series design for reliable centrifugal pumping in horizontal configuration
  • Commonly used in booster and close-coupled pump arrangements (tags: Cm, Cm Cme)
  • Provides straightforward installation and serviceability for routine system maintenance

Applications

Typical uses include building services, water supply boost, HVAC circulation, and light industrial process transfer. Keep claims general and verify system requirements before ordering.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 98853784

EAN 5712602417906
Applications Heating, Air-conditioning, Pressure boosting, Domestic water supply, Industrial applications
Approvals CE
Approvals for drinking water WRAS
Built-in motor protection NONE
Cable included (Yes/No) N
Code for rubber E
Code for shaft seal AQQE
Connect code R
Connection 1 1/2 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Frame size 112CA
Frequency converter NONE
Gross weight 108.0 lb
Housing Stainless steel
IE Efficiency class IE3
Impeller Stainless steel
Impellers 3
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Mains frequency 50 Hz
Material code I
Material Pricing Group 35
Max pressure at stated temp 232 psi / 194 °F
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.52
Model A
Motor standard IEC
Net weight 103.0 lb
Outlet position 12
Product family CM
Pump housing Stainless steel
Pump speed on which pump data are based 2900 rpm
Pump version A
Pumped liquid Water
Range of ambient temperature -4 .. 131 °F
Rated current 5.2-5.1 A
Rated flow 52.8 US gpm
Rated head 179.7 ft
Rated power - P2 2.3 kW
Rated speed 2960-2970 rpm
Rated voltage 3 x 380-415 V V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1
Size 112CA
Size of inlet connection 1 1/2 inch
Size of outlet connection 1 1/2 inch
Standard IEC
Starting current 1550-1535 %
Suitable for 50/60 Hz Y
Terminal box position 12
Type of connection Rp
Version A

Motor Curves

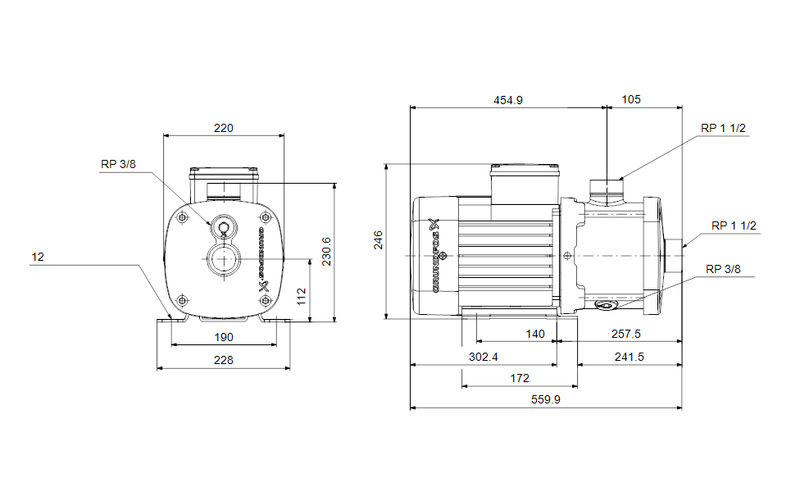

Dimensional Drawing

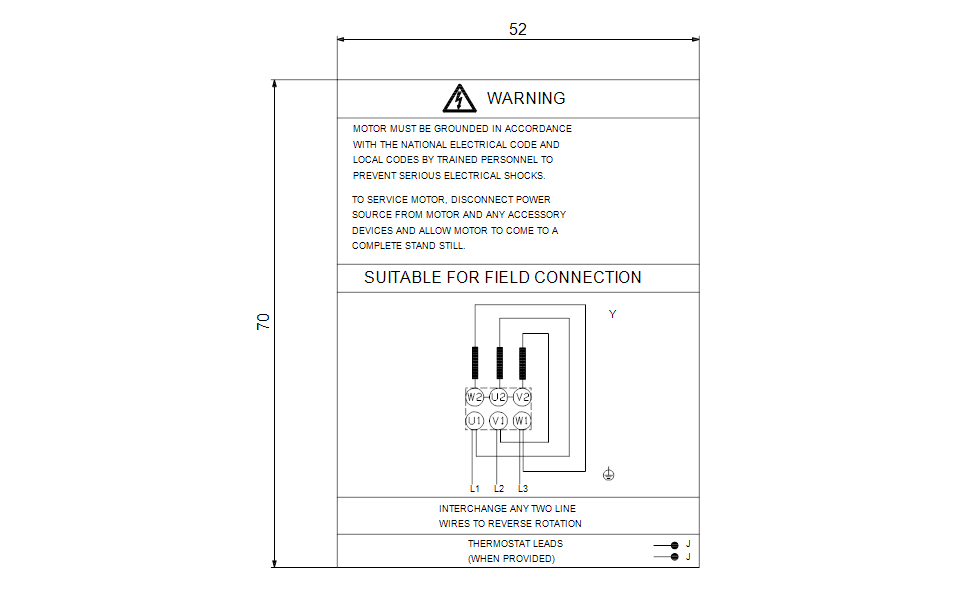

DWiring Diagram
