Grundfos 99397210 - CM 10-2 A-R-A-V-AQQV E1-A-A-N | Horizontal | End Suction | Centrifugal

GRUNDFOSSKU: 99397210

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 99397210 is a CM-series horizontal end-suction centrifugal pump suited for industrial and commercial fluid-handling systems, commonly used by service technicians and contractors requiring a replacement unit that fits CM 10-2 configurations.

Key features

  • Factory-designed for industrial service and replacement applications
  • Horizontal, end-suction centrifugal layout compatible with close-coupled and multistage setups
  • Durable construction for reliable operation in booster and general transfer duties

Applications

Suitable for booster systems, HVAC water transfer, general service pumping, and other industrial fluid-handling roles where a CM-series pump is specified.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99397210

EAN 5713828446350
Approvals CE
Built-in motor protection NONE
Cable included (Yes/No) N
Code for rubber V
Code for shaft seal AQQV
Connect code R
Connection 1 1/2 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Frame size 90HA
Frequency converter NONE
Gross weight 81.2 lb
Housing Cast iron
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 2
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Mains frequency 60 Hz
Material code A
Material Pricing Group 35
Max pressure at stated temp 145 psi / 194 °F
Maximum operating pressure 10 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor standard IEC
Net weight 75.7 lb
Pump housing Cast iron
Pump speed on which pump data are based 3480 rpm
Pump version A
Pumped liquid Water
Range of ambient temperature -4 .. 131 °F
Rated current 8
Rated flow 52.8 US gpm
Rated head 128 ft
Rated power - P2 2.2 kW
Rated speed 3500-3520 rpm
Rated voltage 3 x 208-230YY/440-480Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Service factor 1
Size 90HA
Size of inlet connection 1 1/2 inch
Size of outlet connection 1 1/2 inch
Standard IEC
Starting current 930-980 %
Suitable for 50/60 Hz N
Terminal box position 12
Type of connection Rp
Version A

Motor Curves

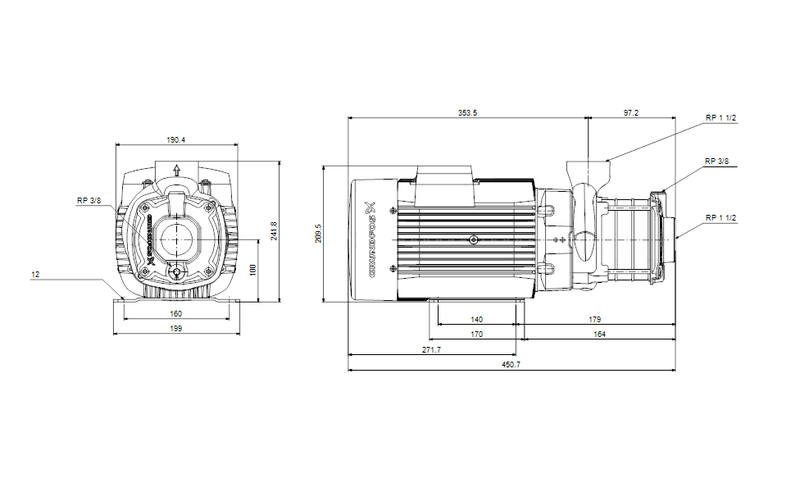

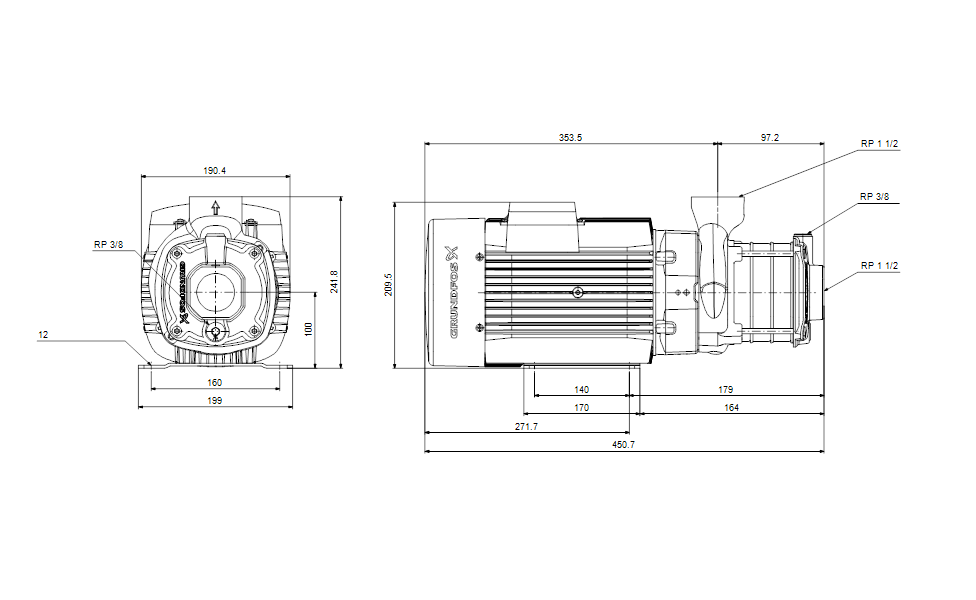

Dimensional Drawing

DWiring Diagram
