Grundfos 99080237 - CM 10-2 A-R-I-E-AQQE J-A-A-N | Horizontal | End Suction | Centrifugal

GRUNDFOSSKU: 99080237

Price:
Sale price$2,975.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 99080237 is a CM-series centrifugal pump suited to horizontal, end-suction installations; typical users include industrial maintenance and facilities teams needing reliable replacement units.

Key features

  • Built for industrial applications and replacement duties
  • End-suction, horizontal centrifugal configuration for common pump skids
  • Designed to provide stable flow and simplified serviceability for routine maintenance

Applications

Common uses include booster service, HVAC and hydronic circulation, light industrial process transfer, and retrofit or replacement in close-coupled pump systems.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99080237

EAN 5712606358717
Applications Heating, Air-conditioning, Pressure boosting, Domestic water supply, Industrial applications
Approvals CE
Approvals for drinking water WRAS
Built-in motor protection NONE
Cable included (Yes/No) N
Code for rubber E
Code for shaft seal AQQE
Connect code R
Connection 1 1/2 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Frame size 90HA
Frequency converter NONE
Gross weight 70.0 lb
Housing Stainless steel
IE Efficiency class IE3
Impeller Stainless steel
Impellers 2
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Mains frequency 50 Hz
Material code I
Material Pricing Group 35
Max pressure at stated temp 232 psi / 194 °F
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.52
Model A
Motor standard IEC
Net weight 64.5 lb
Outlet position 12
Product family CM
Pump housing Stainless steel
Pump speed on which pump data are based 2900 rpm
Pump version A
Pumped liquid Water
Range of ambient temperature -4 .. 131 °F
Rated current 3.30-3.60 A
Rated flow 52.8 US gpm
Rated head 116.3 ft
Rated power - P2 1.27 kW
Rated speed 2960-2970 rpm
Rated voltage 3 x 380-415 V V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1
Size 90HA
Size of inlet connection 1 1/2 inch
Size of outlet connection 1 1/2 inch
Standard IEC
Starting current 1100-1150 %
Suitable for 50/60 Hz Y
Terminal box position 12
Type of connection Rp
Version A

Motor Curves

Dimensional Drawing

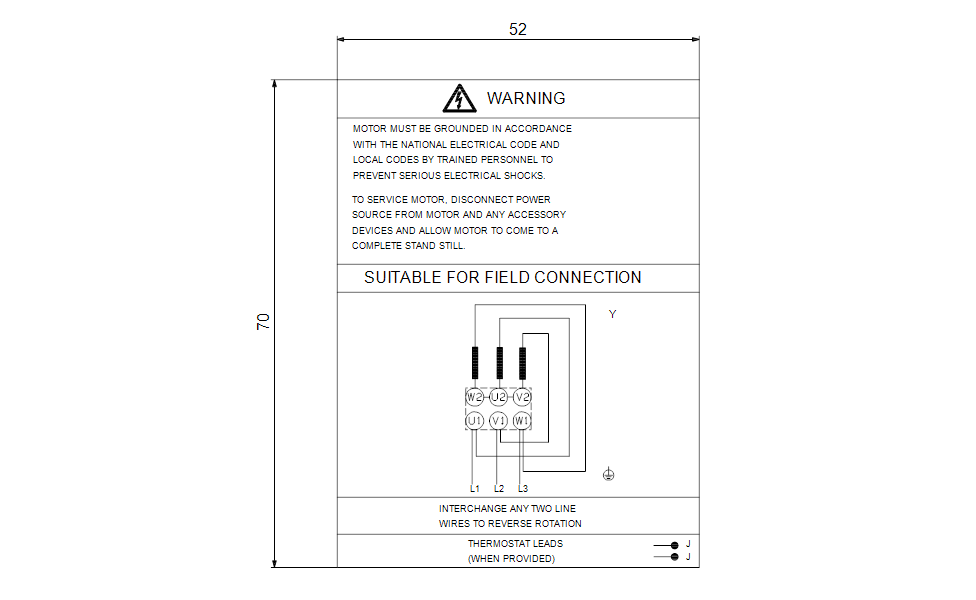

DWiring Diagram
