Grundfos 98771564 - CM 10-2 A-R-A-E-AQQE F-A-A-N | Horizontal | End Suction | Centrifugal

GRUNDFOSSKU: 98771564

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark

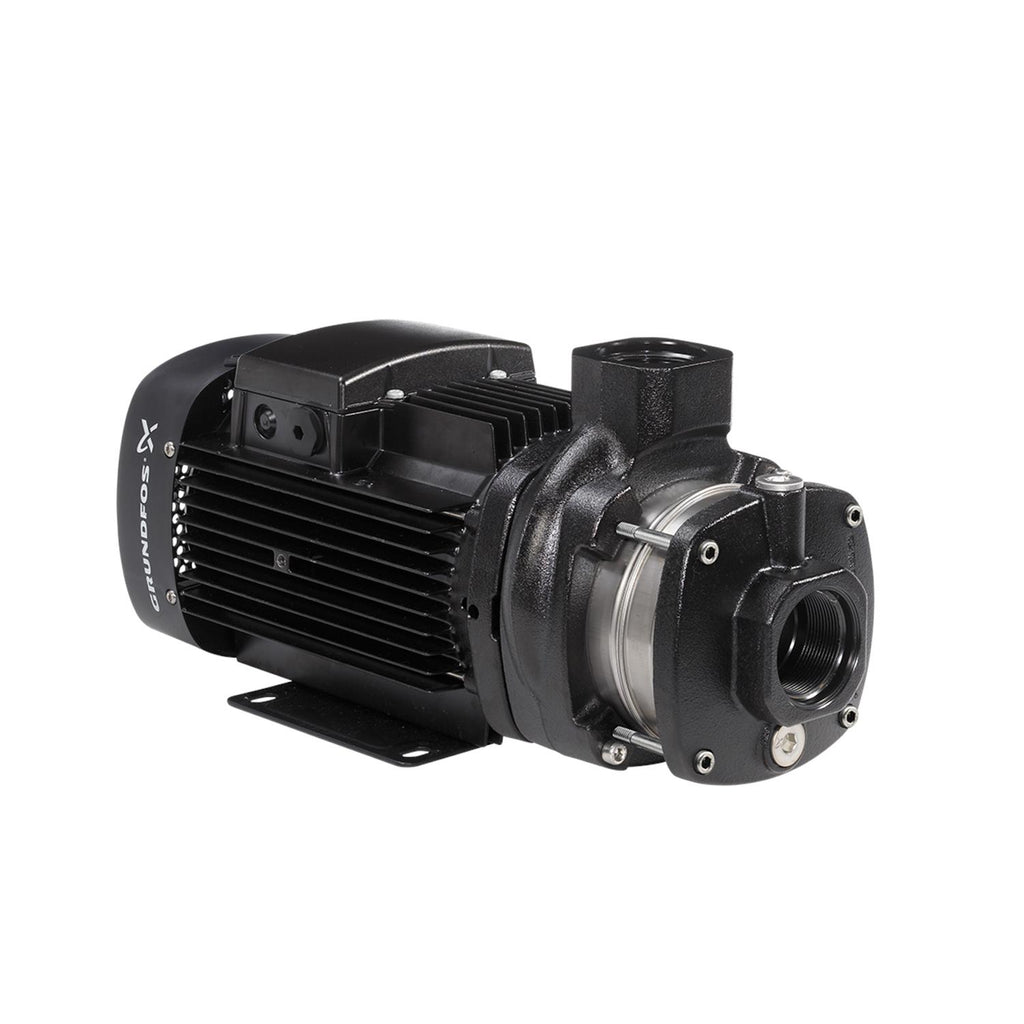

CM 10-2 A-R-A-E-AQQE F-A-A-N · Horizontal Multistage End-Suction Pump
CM2.01HP220-240D/380-415YV3-Phase50 HzIE3IP55Stainless steel

The Grundfos 98771564 (CM 10-2 A-R-A-E-AQQE F-A-A-N) is a Horizontal Multistage End-Suction Pump. Reliable, quiet, compact horizontal end-suction pump. Modular design for flexible performance selection. For water supply, pressure boosting, and liquid transfer. Nominal performance: 44US gpm at 88.88ft. Rated 220-240D/380-415YV, 3-Phase, 50 Hz. Applications include HVAC: Heating, HVAC: Air Conditioning, Plumbing: Pressure Boosting and more.

Power
2.01HP
Voltage
220-240D/380-415YV
Phase
3-Phase
Max Flow
44US gpm
Max Head
88.88ft
Max Pressure
145.04psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
IE3 motor — reduces operating cost over service life
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Genuine Grundfos Part

OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.

Full Traceability

Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.

Authorized Source

PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.

Confirm Compatibility

Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.

Technical Support Available

PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.

Contact for Availability

Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.

Model Information — CM 10-2 A-R-A-E-AQQE F-A-A-N
Series: CM
Model Code: CM 10-2 A-R-A-E-AQQE F-A-A-N
Impeller Material: Stainless steel
Housing Material: Cast iron
Shaft Seal: AQQE
Technical Specifications
Model Number 98771564
Product Series CM
Series Description Horizontal Multistage End-Suction Pump
Power 2.01HP
Voltage 220-240D/380-415YV
Phase 3-Phase
Frequency 50 Hz
Motor Speed 2890-2910rpm
Pump Speed 2900rpm
Full Load Current 5,70/3,30A
Motor Efficiency Class IE3
Insulation Class F
Protection Class (IP) IP55
Nominal Flow 44US gpm
Nominal Head 88.88ft
Max Operating Pressure 145.04psi
Max Fluid Temperature 194°F
Max Ambient Temperature 131°F
Inlet Connection 1 1/2inch
Outlet Connection 1 1/2inch
Pipe Standard Rp
Impeller Material Stainless steel
Housing Material Cast iron
Shaft Seal AQQE
Approvals / Certifications CE, EAC, UKCA
Applications
HVAC: Heating
HVAC: Air Conditioning
Plumbing: Pressure Boosting
District heating
Residential water pressure boosting
Wash and clean
Industrial heating
Industrial water supply & transfer
Desalination
Municipal water transportation
Rotor & spray irrigation
Ground water transfer
Livestock & Wildlife Watering
Water Treatment Fertigation
Chemigation & Dosing
Pivot & Lateral Irrigation
Frost protection
Solar boosting and water supply solutions
Controls and digital groundwater management
Solar controls and digital water management
Municipal solar solutions
Agriculture solar solutions
Livestock watering with solar solutions
Community solar solutions
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 220-240D/380-415YV, 3-Phase, 50 Hz.
Temperature limits Do not exceed max fluid temperature 194°F or max ambient temperature 131°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. CM pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — CM Series
✓ Product Data Sheet — CM 10-2 A-R-A-E-AQQE F-A-A-N
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
EAN 5712601164436
Applications Heating, Air-conditioning, Pressure boosting, Domestic water supply, Industrial applications
Approvals CE
Approvals for drinking water WRAS
Built-in motor protection NONE
Cable included (Yes/No) N
Code for rubber E
Code for shaft seal AQQE
Connect code R
Connection 1 1/2 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Frame size 90SD
Frequency converter NONE
Gross weight 72.7 lb
Housing Cast iron
IE Efficiency class IE3
Impeller Stainless steel
Impellers 2
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Mains frequency 50 Hz
Material code A
Material Pricing Group 35
Max pressure at stated temp 145 psi / 194 °F
Maximum operating pressure 10 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor standard IEC
Net weight 67.2 lb
Outlet position 12
Product family CM
Pump housing Cast iron
Pump speed on which pump data are based 2900 rpm
Pump version A
Pumped liquid Water
Range of ambient temperature -4 .. 131 °F
Rated current 5.70/3.30 A
Rated flow 44 US gpm
Rated head 88.88 ft
Rated power - P2 1.5 kW
Rated speed 2890-2910 rpm
Rated voltage 3 x 220-240D/380-415Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1
Size 90SD
Size of inlet connection 1 1/2 inch
Size of outlet connection 1 1/2 inch
Standard IEC
Starting current 710-790 %
Suitable for 50/60 Hz N
Terminal box position 12
Type of connection Rp
Version A
Danish VVS No. 385212102
Finnish LVI No. 4925754

Motor Curves

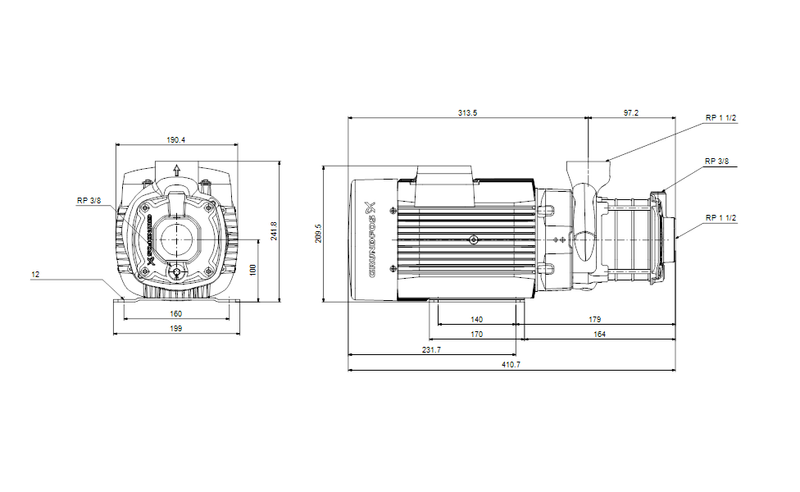

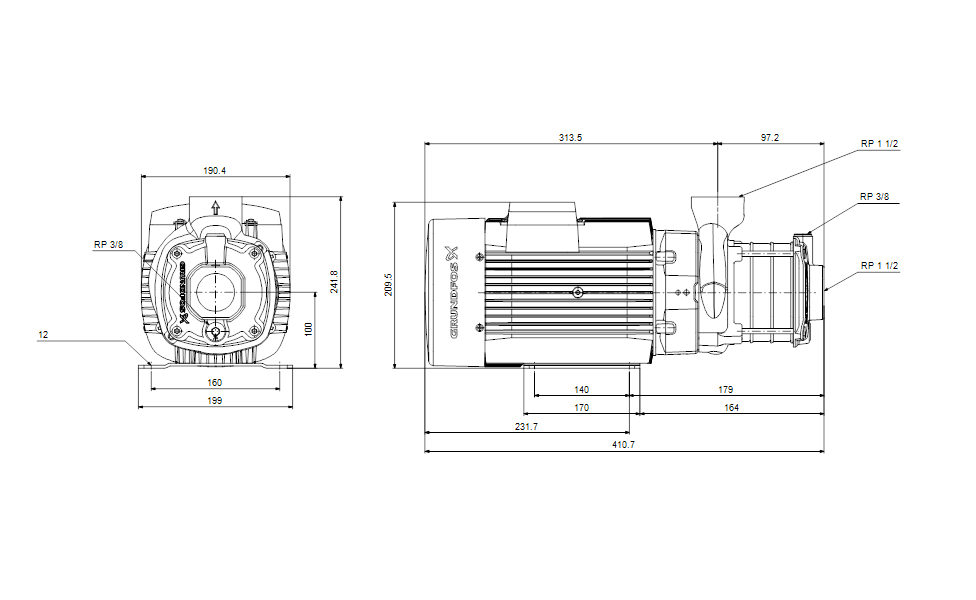

Dimensional Drawing

DWiring Diagram

Recently viewed

Similar Products
