Grundfos 97683505 - CM 10-2 A-S-G-V-AQQV J-A-A-N | Horizontal | End Suction | Centrifugal

GRUNDFOSSKU: 97683505

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 97683505 is a horizontal end-suction centrifugal pump assembly used in industrial service and booster applications; technicians and maintenance teams install it where reliable fluid transfer is required.

Key features

  • Manufactured as an OEM replacement for routine industrial and service-special applications
  • Designed as a centrifugal, end-suction, close-coupled horizontal unit per product family tags
  • Provides straightforward installation and compatibility with existing pump systems for fast service turnaround

Applications

Suitable for general industrial pump systems, booster stations, HVAC circulation, and other centrifugal transfer duties where a horizontal end-suction configuration is specified.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 97683505

EAN 5710621427142
Approvals CE
Approvals for drinking water WRAS
Built-in motor protection NONE
Cable included (Yes/No) N
Code for rubber V
Code for shaft seal AQQV
Connect code S
Connection 1 1/2 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Frame size 90HA
Frequency converter NONE
Gross weight 70.0 lb
Housing Stainless steel
IE Efficiency class IE3
Impeller Stainless steel
Impellers 2
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Mains frequency 50 Hz
Material code G
Material Pricing Group 35
Max pressure at stated temp 232 psi / 194 °F
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.52
Model A
Motor standard NEMA
Net weight 64.5 lb
Pump housing Stainless steel
Pump speed on which pump data are based 2900 rpm
Pump version A
Pumped liquid Water
Range of ambient temperature -4 .. 131 °F
Rated current 3.50-3.80 A
Rated flow 52.8 US gpm
Rated head 116.3 ft
Rated power - P2 1.45 kW
Rated speed 2950-2955 rpm
Rated voltage 3 x 380-415 V V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Service factor 1
Size 90HA
Size of inlet connection 1 1/2 inch
Size of outlet connection 1 1/2 inch
Standard NEMA
Starting current 1040-1090 %
Suitable for 50/60 Hz Y
Terminal box position 12
Type of connection NPT(F)
Version A

Motor Curves

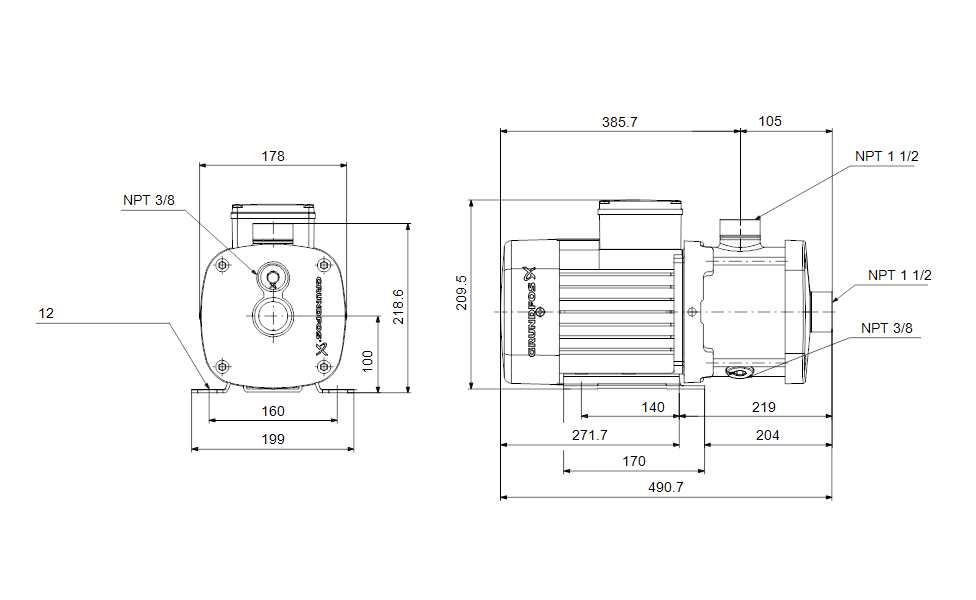

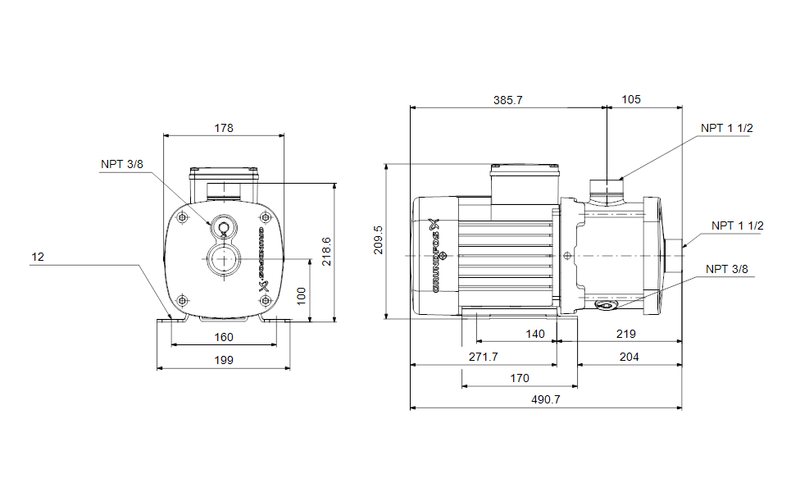

Dimensional Drawing

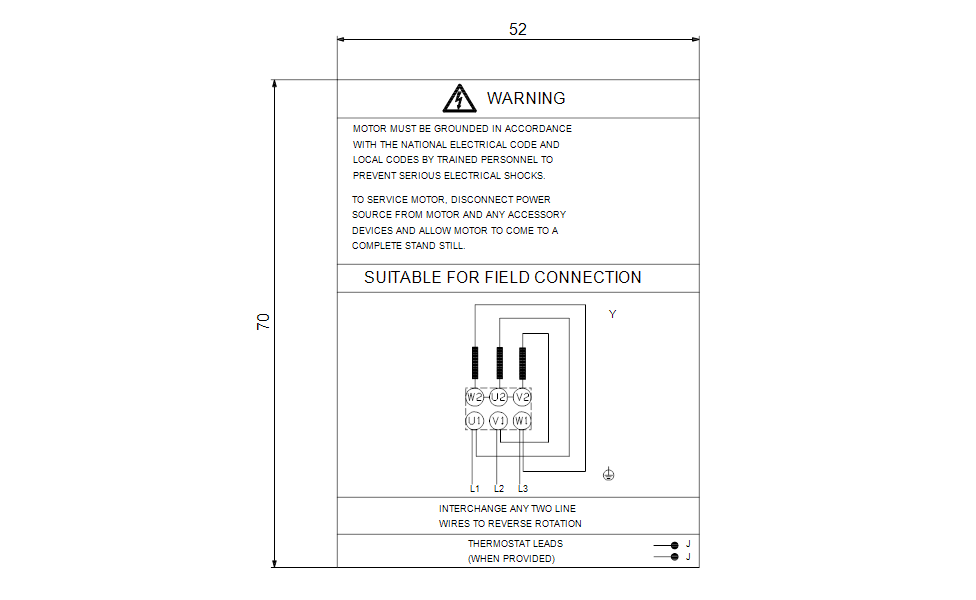

DWiring Diagram
