Grundfos 97647209 - cm-10-2-97647209 | Multistage | Centrifugal | Horizontal

GrundfosSKU: 97647209

Price:
Sale price$3,226.39
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
cm-10-2-97647209 · Horizontal Multistage End-Suction Pump
CM3.35HP440-480 VV3-Phase60 HzIE2 - IE3IP55Stainless steel

The Grundfos 97647209 (cm-10-2-97647209) is a Horizontal Multistage End-Suction Pump. Reliable, quiet, compact horizontal end-suction pump. Modular design for flexible performance selection. For water supply, pressure boosting, and liquid transfer. Nominal performance: 52.8US gpm at 116.3ft. Rated 440-480 VV, 3-Phase, 60 Hz. Applications include HVAC: Heating, HVAC: Air Conditioning, Plumbing: Pressure Boosting and more.

Power
3.35HP
Voltage
440-480 VV
Phase
3-Phase
Max Flow
52.8US gpm
Max Head
116.3ft
Max Pressure
232.06psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
IE2 - IE3 motor — reduces operating cost over service life
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Genuine Grundfos Part

OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.

Full Traceability

Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.

Authorized Source

PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.

Confirm Compatibility

Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.

Technical Support Available

PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.

Contact for Availability

Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.

Model Information — cm-10-2-97647209
Series: CM
Model Code: cm-10-2-97647209
Impeller Material: Stainless steel
Housing Material: Stainless steel
Shaft Seal: AQQE
Technical Specifications
Model Number 97647209
Product Series CM
Series Description Horizontal Multistage End-Suction Pump
Power 3.35HP
Voltage 440-480 VV
Phase 3-Phase
Frequency 60 Hz
Motor Speed 3490-3500rpm
Pump Speed 3480rpm
Full Load Current 4,80-4,60A
Motor Efficiency Class IE2 - IE3
Insulation Class F
Protection Class (IP) IP55
Nominal Flow 52.8US gpm
Nominal Head 116.3ft
Max Operating Pressure 232.06psi
Max Fluid Temperature 248°F
Max Ambient Temperature 131°F
Inlet Connection 1 1/2inch
Outlet Connection 1 1/2inch
Pipe Standard Rp
Impeller Material Stainless steel
Housing Material Stainless steel
Shaft Seal AQQE
Approvals / Certifications CE, EAC, UKCA
Applications
HVAC: Heating
HVAC: Air Conditioning
Plumbing: Pressure Boosting
District heating
Residential water pressure boosting
Wash and clean
Industrial heating
Industrial water supply & transfer
Desalination
Municipal water transportation
Rotor & spray irrigation
Ground water transfer
Livestock & Wildlife Watering
Water Treatment Fertigation
Chemigation & Dosing
Pivot & Lateral Irrigation
Frost protection
Solar boosting and water supply solutions
Controls and digital groundwater management
Solar controls and digital water management
Municipal solar solutions
Agriculture solar solutions
Livestock watering with solar solutions
Community solar solutions
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 440-480 VV, 3-Phase, 60 Hz.
Temperature limits Do not exceed max fluid temperature 248°F or max ambient temperature 131°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. CM pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — CM Series
✓ Product Data Sheet — cm-10-2-97647209
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
EAN 5710620173750
Applications Heating, Air-conditioning, Pressure boosting, Domestic water supply, Industrial applications
Density 62.29 lb/ft³
Gross weight 70.0 lb
Liquid temperature range -4 .. 248 °F
Material Pricing Group 35
Max pressure at stated temp 232 psi / 194 °F
Max. capacity 2 ,
Net weight 64.5 lb
Product family CM
Range of ambient temperature -4 .. 131 °F
Rated flow 52.8 US gpm
Rated head 116.3 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Selected liquid temperature 68 °F

Motor Curves

Dimensional Drawing

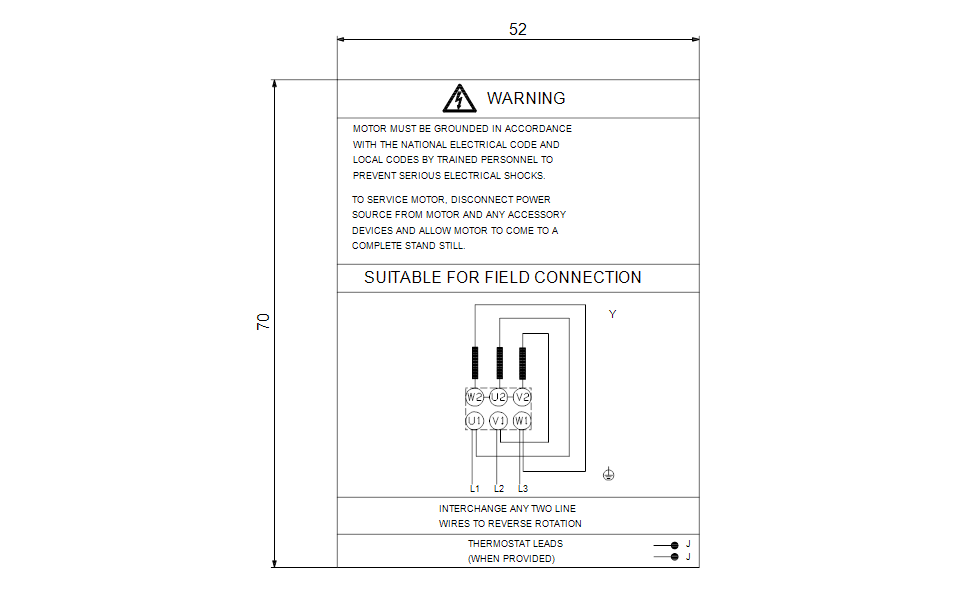

DWiring Diagram
