Grundfos 92607350 - CM 10-2 A-S-A-E-AQQE O-A-A-N | Horizontal | End Suction | Centrifugal

GRUNDFOSSKU: 92607350

Price:
Sale price$2,359.72
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

This Grundfos CM series replacement pump assembly fits horizontal end-suction centrifugal applications and is suited for industrial and commercial service technicians needing a close-coupled, service-special pump like the CM 10-2 model.

Key features

  • Designed as a centrifugal end-suction unit for general industrial pumping tasks
  • Tags indicate suitability for single- and multi-stage configurations, close-coupled or horizontal setups
  • Provides reliable performance and simplified serviceability for routine maintenance and repairs

Applications

Common uses include building services, booster systems, HVAC circulation, and light industrial fluid transfer where a compact, serviceable centrifugal pump is required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 92607350

EAN 5715116987538
Approvals CE
Approvals for drinking water WRAS
Built-in motor protection NONE
Cable included (Yes/No) N
Code for rubber E
Code for shaft seal AQQE
Connect code S
Connection 1 1/2 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Frame size 90HA
Frequency converter NONE
Gross weight 81.1 lb
Housing Cast iron
IE Efficiency class IE3
Impeller Stainless steel
Impellers 2
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Mains frequency 50 Hz
Material code A
Material Pricing Group 35
Max pressure at stated temp 145 psi / 194 °F
Maximum operating pressure 10 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor standard NEMA
Net weight 75.6 lb
Pump housing Cast iron
Pump speed on which pump data are based 2900 rpm
Pump version A
Pumped liquid Water
Range of ambient temperature -4 .. 131 °F
Rated current 5
Rated flow 52.8 US gpm
Rated head 128 ft
Rated power - P2 1.27 kW
Rated speed 2960-2970 rpm
Rated voltage 3 x 220-240D/380-415Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1
Size 90HA
Size of inlet connection 1 1/2 inch
Size of outlet connection 1 1/2 inch
Standard NEMA
Starting current 1100-1150 %
Suitable for 50/60 Hz Y
Terminal box position 12
Type of connection NPT(F)
Version A

Motor Curves

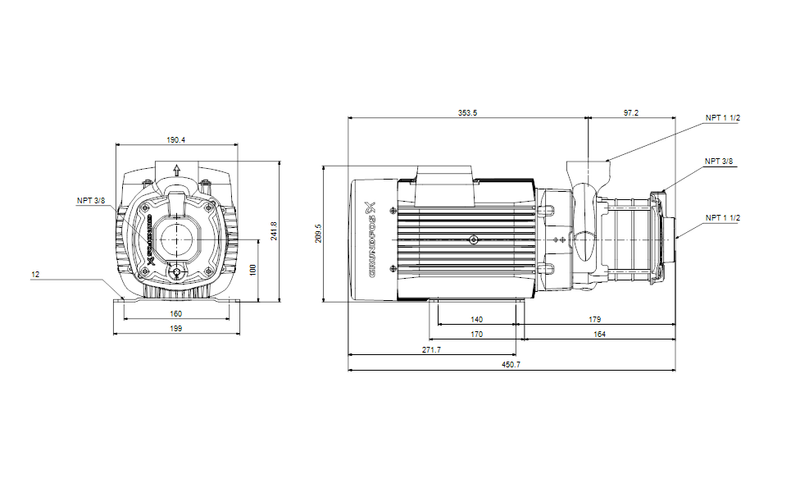

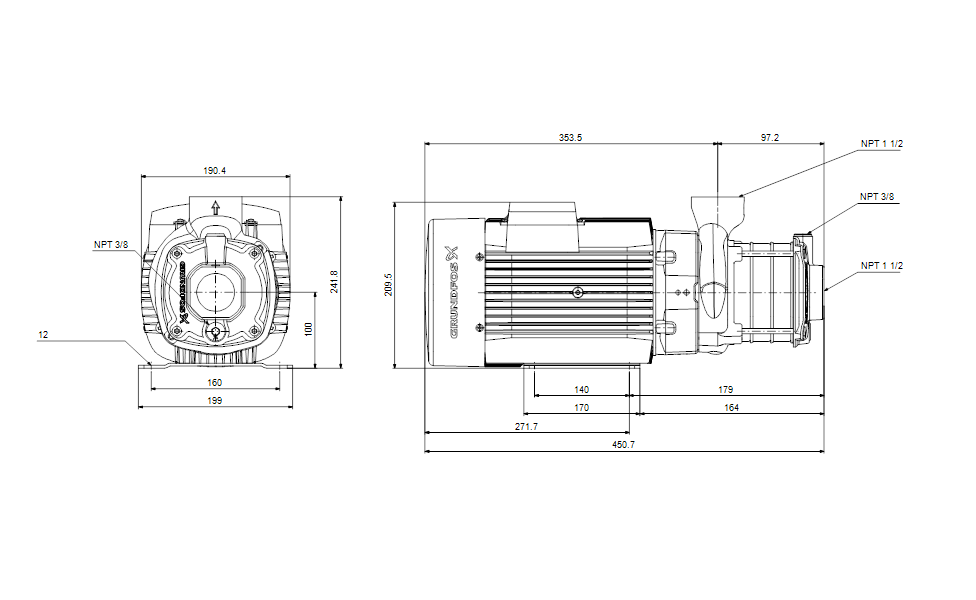

Dimensional Drawing

DWiring Diagram
