Grundfos 92590505 - CM 10-2 A-S-A-E-AVBE H-A-A-N | Horizontal | End Suction | Centrifugal

GRUNDFOSSKU: 92590505

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

The Grundfos 92590505 - CM 10-2 A-S-A-E-AVBE H-A-A-N is a horizontal end-suction centrifugal pump suited for industrial and commercial users seeking a compact replacement for booster and process systems. This configuration fits installations that require reliable single- or multi-stage centrifugal performance.

Key features

  • Manufactured by Grundfos for industrial applications and service replacement
  • Designed as a horizontal end-suction centrifugal unit often used in booster and close-coupled setups
  • Provides durable, service-friendly operation to support consistent flow and easy maintenance

Applications

Typical uses include building water supply, HVAC circulation, pressure boosting, and general industrial process water handling where centrifugal or multistage pumps are specified.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 92590505

EAN 5715116733333
Approvals CE
Approvals for drinking water ACS
Built-in motor protection NONE
Cable included (Yes/No) N
Code for rubber E
Code for shaft seal AVBE
Connect code S
Connection 1 1/2 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Frame size 100BB
Frequency converter NONE
Gross weight 94.4 lb
Housing Cast iron
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 2
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Mains frequency 60 Hz
Material code A
Material Pricing Group 35
Max pressure at stated temp 145 psi / 104 °F
Maximum operating pressure 10 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor standard NEMA
Net weight 88.9 lb
Pump housing Cast iron
Pump speed on which pump data are based 3480 rpm
Pump version A
Pumped liquid Water
Range of ambient temperature -4 .. 131 °F
Rated current 4.25 A
Rated flow 52.8 US gpm
Rated head 128 ft
Rated power - P2 3 kW
Rated speed 3540 rpm
Rated voltage 3 x 575 V V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1
Size 100BB
Size of inlet connection 1 1/2 inch
Size of outlet connection 1 1/2 inch
Standard NEMA
Starting current 15
Suitable for 50/60 Hz N
Terminal box position 12
Type of connection NPT(F)
Version A

Motor Curves

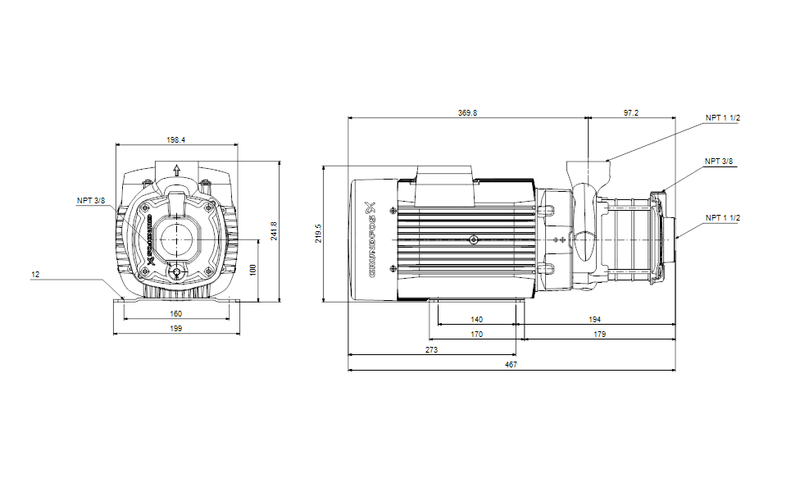

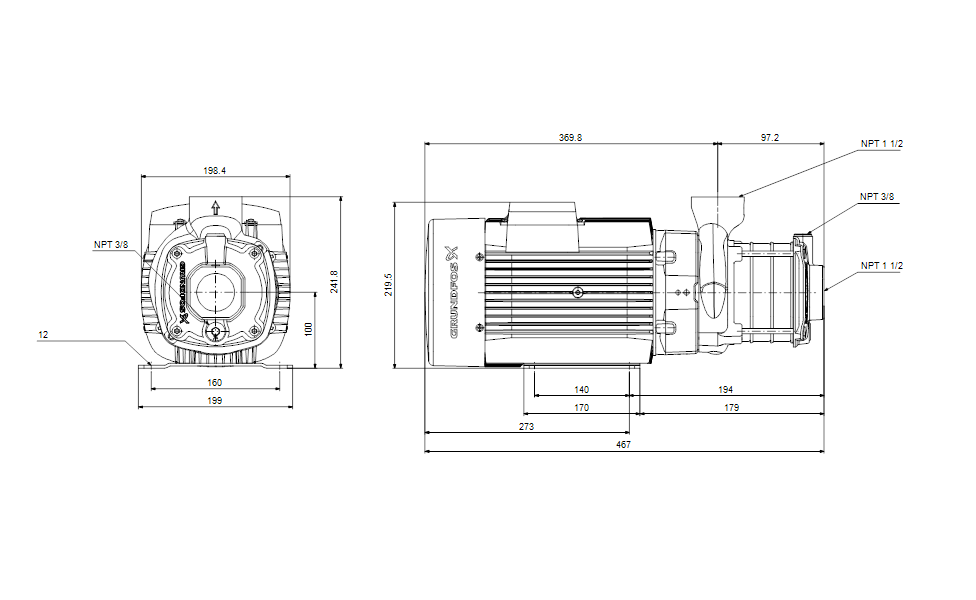

Dimensional Drawing

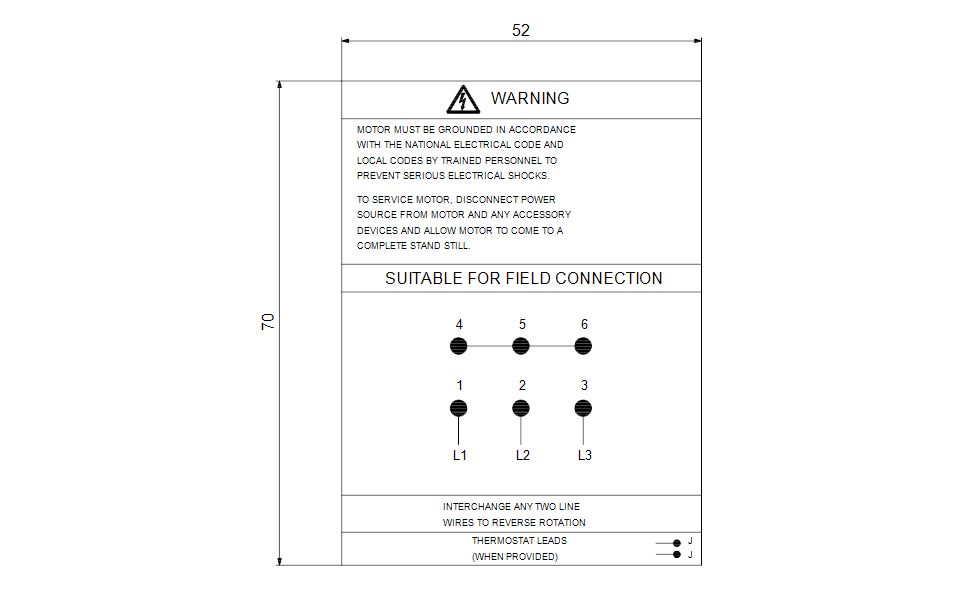

DWiring Diagram
