Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark

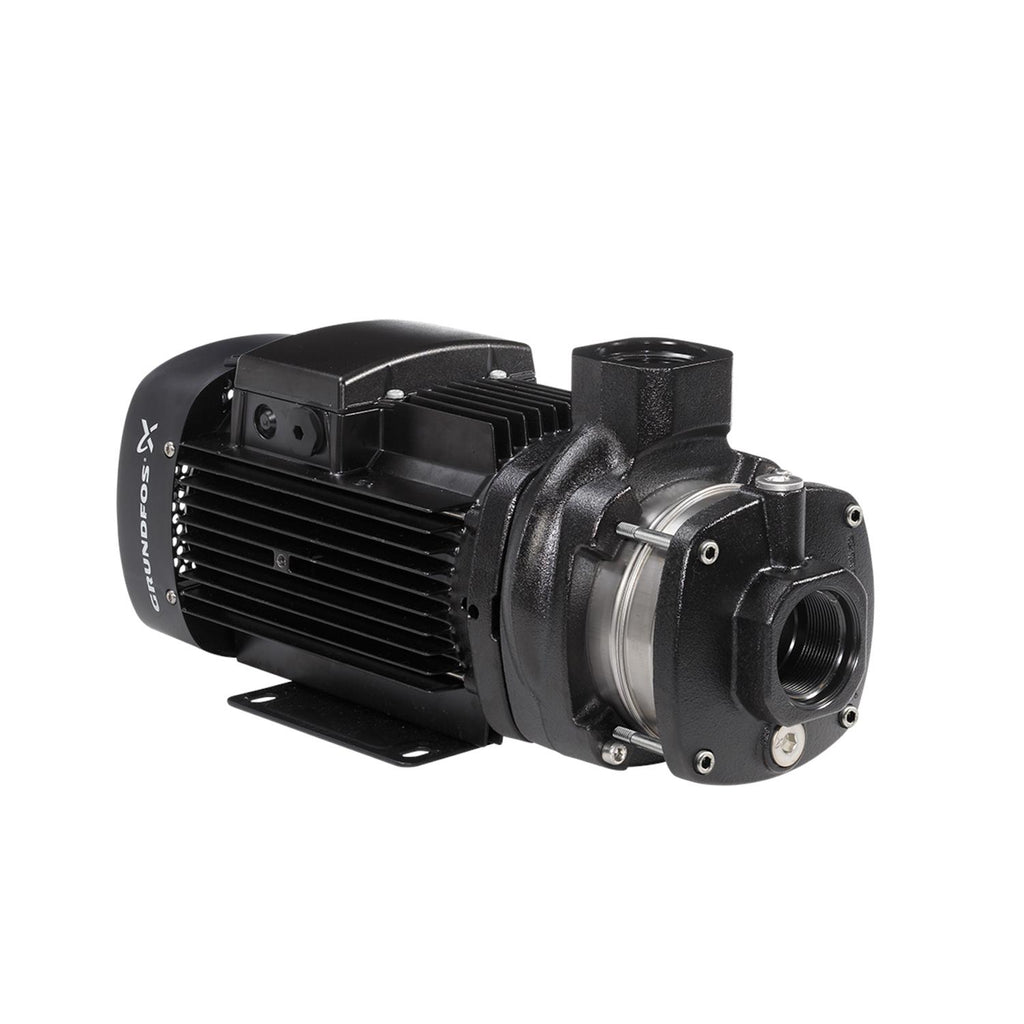

CM 10-1 A-S-A-V-AQQV H-A-A-N · Horizontal Multistage End-Suction Pump
The Grundfos 99377466 (CM 10-1 A-S-A-V-AQQV H-A-A-N) is a Horizontal Multistage End-Suction Pump. Reliable, quiet, compact horizontal end-suction pump. Modular design for flexible performance selection. For water supply, pressure boosting, and liquid transfer. Nominal performance: 52.8US gpm at 64.6ft. Rated 575V, 3-Phase, 60 Hz. Applications include HVAC: Heating, HVAC: Air Conditioning, Plumbing: Pressure Boosting and more.
Power
1.48HP
Voltage
575V
Phase
3-Phase
Max Flow
52.8US gpm
Max Head
64.6ft
Max Pressure
145.04psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
IE3 / NEMA Premium motor — reduces operating cost over service life
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product
Genuine Grundfos Part
OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.
Full Traceability
Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.
Authorized Source
PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.
Confirm Compatibility
Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.
Technical Support Available
PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.
Contact for Availability
Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.
Model Information — CM 10-1 A-S-A-V-AQQV H-A-A-N
Series: CM
Model Code: CM 10-1 A-S-A-V-AQQV H-A-A-N
Impeller Material: Stainless steel
Housing Material: Cast iron
Shaft Seal: AQQV
Technical Specifications
| Model Number | 99377466 |
| Product Series | CM |
| Series Description | Horizontal Multistage End-Suction Pump |
| Power | 1.48HP |
| Voltage | 575V |
| Phase | 3-Phase |
| Frequency | 60 Hz |
| Motor Speed | 3450rpm |
| Pump Speed | 3480rpm |
| Full Load Current | 1.72A |
| Motor Efficiency Class | IE3 / NEMA Premium |
| Insulation Class | F |
| Protection Class (IP) | IP55 |
| Nominal Flow | 52.8US gpm |
| Nominal Head | 64.6ft |
| Max Operating Pressure | 145.04psi |
| Max Fluid Temperature | 194°F |
| Max Ambient Temperature | 131°F |
| Inlet Connection | 1 1/2inch |
| Outlet Connection | 1 1/2inch |
| Pipe Standard | NPT(F) |
| Impeller Material | Stainless steel |
| Housing Material | Cast iron |
| Shaft Seal | AQQV |
| Approvals / Certifications | CE, CULUS, EAC, CURUS, UKCA |
Applications
HVAC: Heating
HVAC: Air Conditioning
Plumbing: Pressure Boosting
District heating
Residential water pressure boosting
Wash and clean
Industrial heating
Industrial water supply & transfer
Desalination
Municipal water transportation
Rotor & spray irrigation
Ground water transfer
Livestock & Wildlife Watering
Water Treatment Fertigation
Chemigation & Dosing
Pivot & Lateral Irrigation
Frost protection
Solar boosting and water supply solutions
Controls and digital groundwater management
Solar controls and digital water management
Municipal solar solutions
Agriculture solar solutions
Livestock watering with solar solutions
Community solar solutions
Important Notices
| Electrical | Verify supply voltage, phase, and frequency match nameplate before installation: 575V, 3-Phase, 60 Hz. |
| Temperature limits | Do not exceed max fluid temperature 194°F or max ambient temperature 131°F. Exceeding limits damages seals and motor insulation. |
| Dry running | Do not run dry. CM pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations. |
| Maintenance | Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation. |
Documentation
✓ Installation and Operating Manual (IOM) — CM Series
✓ Product Data Sheet — CM 10-1 A-S-A-V-AQQV H-A-A-N
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
- EAN
- 5713828121196
- Applications
- Heating, Air-conditioning, Pressure boosting, Domestic water supply, Industrial applications
- Approvals
- CE
- Approvals for drinking water
- WRAS
- Built-in motor protection
- NONE
- Cable included (Yes/No)
- N
- Code for rubber
- V
- Code for shaft seal
- AQQV
- Connect code
- S
- Connection
- 1 1/2 inch
- Curve tolerance
- ISO9906:2012 3B
- Density
- 62.29 lb/ft³
- Enclosure class (IEC 34-5)
- IP55
- Frame size
- 80CB
- Frequency converter
- NONE
- Gross weight
- 59.1 lb
- Housing
- Cast iron
- IE Efficiency class
- IE3 / NEMA Premium
- Impeller
- Stainless steel
- Impellers
- 1
- Insulation class (IEC 85)
- F
- Liquid temperature range
- -4 .. 194 °F
- Mains frequency
- 60 Hz
- Material code
- A
- Material Pricing Group
- 35
- Max pressure at stated temp
- 145 psi / 194 °F
- Maximum operating pressure
- 10 bar
- Minimum efficiency index, MEI ≥
- 0.7
- Model
- A
- Motor standard
- NEMA
- Net weight
- 53.6 lb
- Outlet position
- 12
- Product family
- CM
- Pump housing
- Cast iron
- Pump speed on which pump data are based
- 3480 rpm
- Pump version
- A
- Pumped liquid
- Water
- Range of ambient temperature
- -4 .. 131 °F
- Rated current
- 1.72 A
- Rated flow
- 52.8 US gpm
- Rated head
- 64.6 ft
- Rated power - P2
- 1.1 kW
- Rated speed
- 3450 rpm
- Rated voltage
- 3 x 575 V V
- Real Time
- Delivery date to be confirmed on Sales Order Update with real time availability and Net price
- Rubber
- V
- Selected liquid temperature
- 68 °F
- Service factor
- 1
- Size
- 80CB
- Size of inlet connection
- 1 1/2 inch
- Size of outlet connection
- 1 1/2 inch
- Standard
- NEMA
- Starting current
- 7.3
- Suitable for 50/60 Hz
- N
- Terminal box position
- 12
- Type of connection
- NPT(F)
- Version
- A

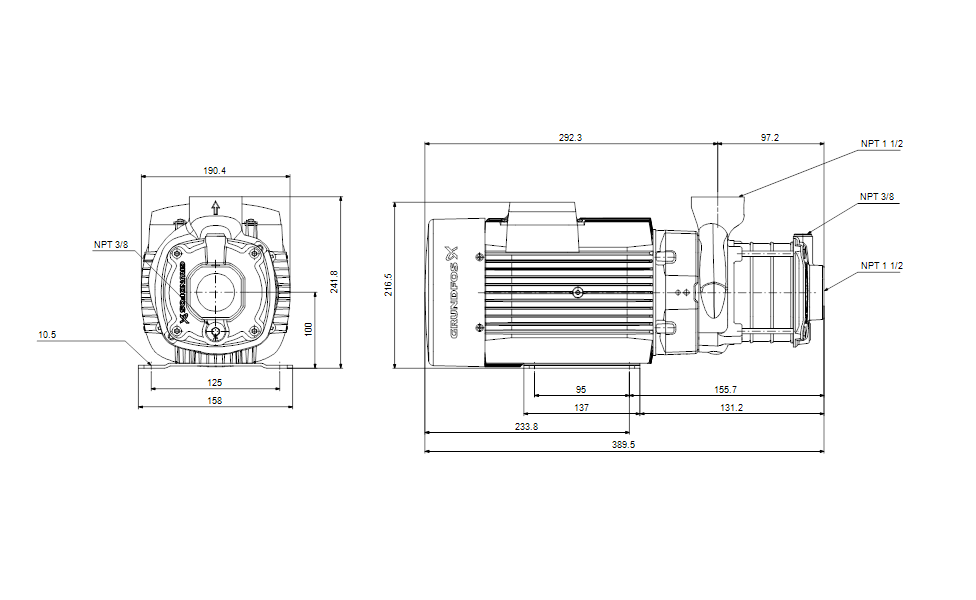

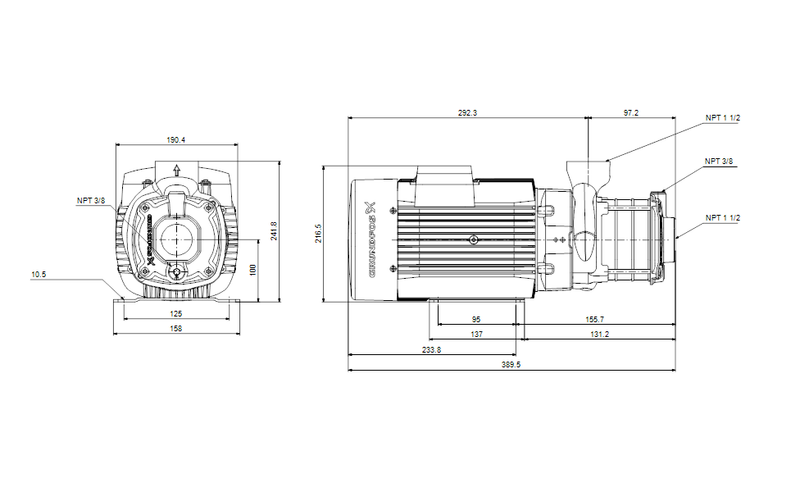

Dimensional Drawing

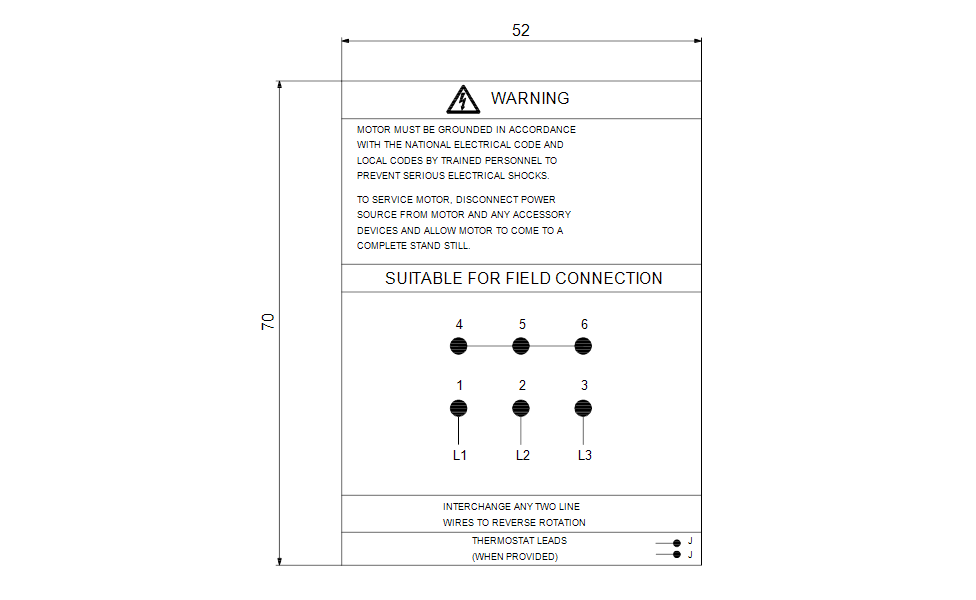

Wiring Diagram
