Grundfos 99128248 is a CM 10-1 horizontal end-suction centrifugal pump suited for industrial and commercial fluid transfer tasks, used by maintenance teams and service technicians for booster and general pumping applications.

Key features

  • Compact horizontal end-suction centrifugal design for tight installations
  • Service-special configuration built for repair and replacement workflows
  • Delivers reliable fluid transfer and easy integration into booster or close-coupled systems

Applications

Typical uses include building services booster systems, HVAC circulation, light industrial process pumping, and service replacement in centrifugal or close-coupled pump installations.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99128248

EAN 5712607284657
Approvals CE
Approvals for drinking water WRAS
Built-in motor protection NONE
Cable included (Yes/No) N
Code for rubber V
Code for shaft seal AQQV
Connect code R
Connection 1 1/2 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Frame size 80CB
Frequency converter NONE
Gross weight 46.3 lb
Housing Stainless steel
Impeller Stainless steel
Impellers 1
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Mains frequency 50 Hz
Material code I
Material Pricing Group 35
Max pressure at stated temp 232 psi / 194 °F
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.52
Model A
Motor standard IEC
Net weight 40.8 lb
Pump housing Stainless steel
Pump speed on which pump data are based 2900 rpm
Pump version A
Pumped liquid Water
Range of ambient temperature -4 .. 131 °F
Rated current 1.82-1.98 A
Rated flow 52.8 US gpm
Rated head 52.88 ft
Rated power - P2 0.64 kW
Rated speed 2910-2920 rpm
Rated voltage 3 x 380-415 V V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Service factor 1
Size 80CB
Size of inlet connection 1 1/2 inch
Size of outlet connection 1 1/2 inch
Standard IEC
Starting current 930-970 %
Suitable for 50/60 Hz Y
Terminal box position 12
Type of connection Rp
Version A

Motor Curves

Dimensional Drawing

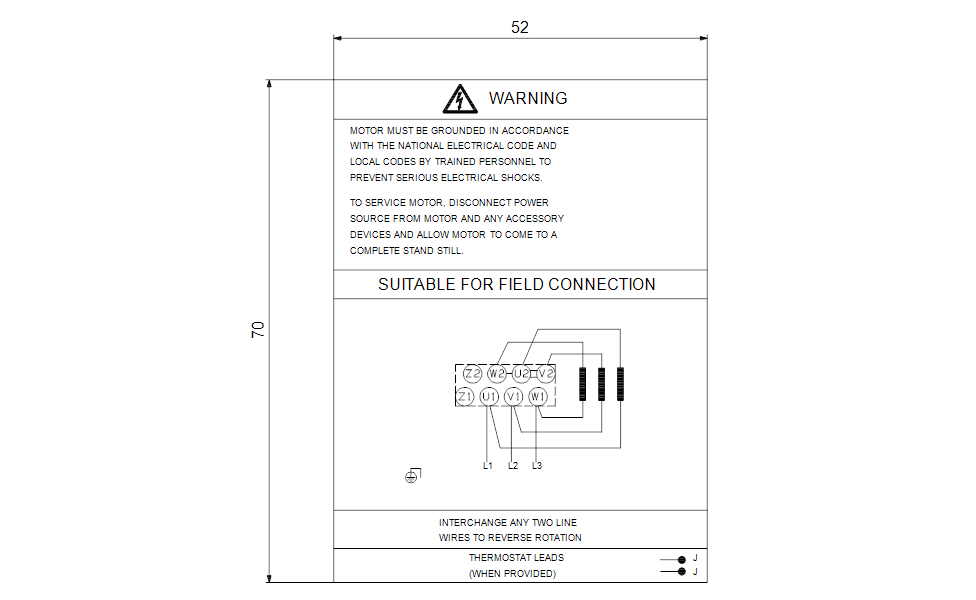

DWiring Diagram
