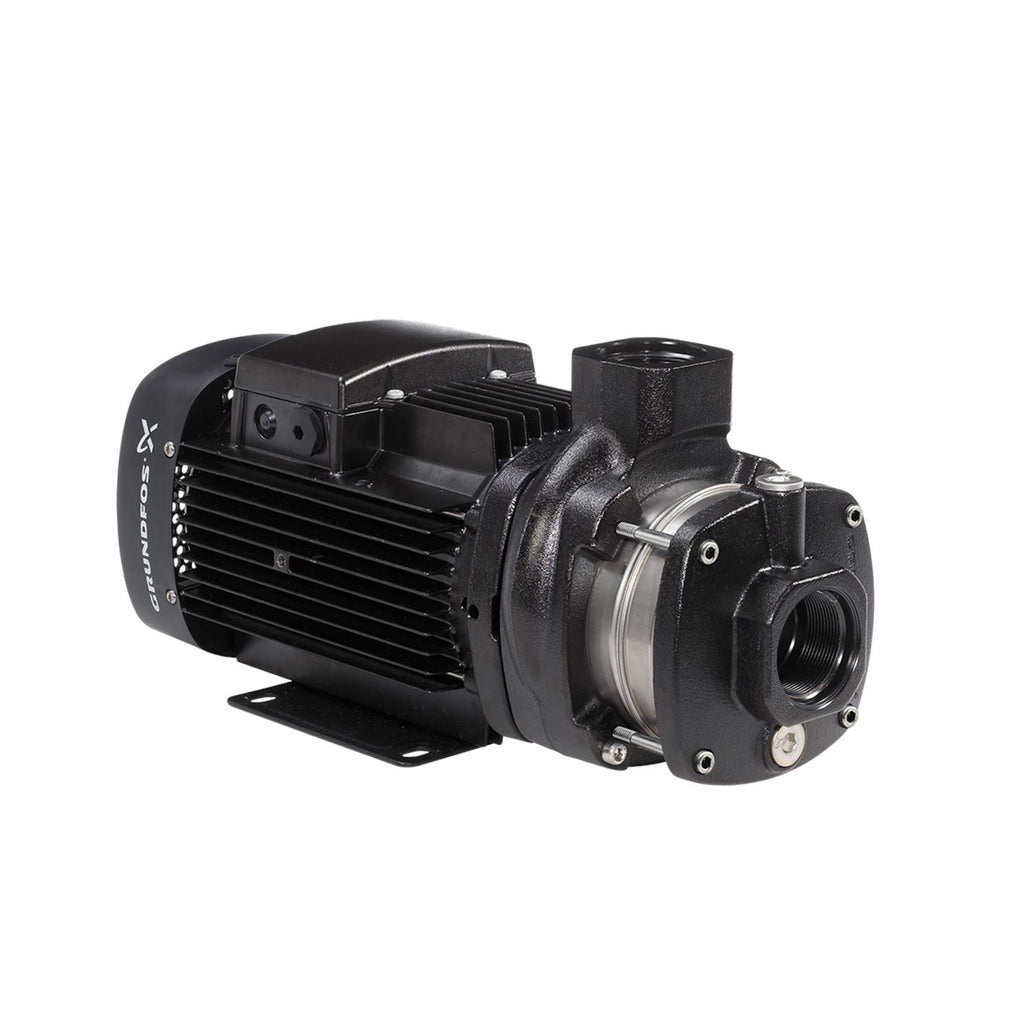

Grundfos 99087480 - CM 10-1 A-S-A-E-AQQE E-A-A-N | Horizontal | End Suction | Centrifugal

Save $644.92
GRUNDFOSSKU: 99087480

Price:
Sale price$757.08 Regular price$1,402.00
or Call for most up to date lead times. (781) 281-8905

Description

Overview

The Grundfos 99087480 - CM 10-1 A-S-A-E-AQQE E-A-A-N is a horizontal end-suction centrifugal pump suited for industrial and commercial fluid transfer. This CM-series unit is commonly used by maintenance and facility teams for booster and process systems.

Key features

  • CM series centrifugal design for reliable liquid handling
  • Horizontal, end-suction layout compatible with close-coupled installations
  • Engineered for booster and multistage system integration, offering consistent pressure and flow

Applications

Typical uses include building services, HVAC circulation, booster stations, process water transfer, and general industrial pumping tasks.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99087480

EAN 5712606525867
Applications Heating, Air-conditioning, Pressure boosting, Domestic water supply, Industrial applications
Approvals CE
Approvals for drinking water WRAS
Built-in motor protection NONE
Cable included (Yes/No) N
Code for rubber E
Code for shaft seal AQQE
Connect code S
Connection 1 1/2 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Frame size 80CB
Frequency converter NONE
Gross weight 56.7 lb
Housing Cast iron
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 1
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Mains frequency 60 Hz
Material code A
Material Pricing Group 35
Max pressure at stated temp 145 psi / 194 °F
Maximum operating pressure 10 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor standard NEMA
Net weight 51.2 lb
Outlet position 12
Product family CM
Pump housing Cast iron
Pump speed on which pump data are based 3480 rpm
Pump version A
Pumped liquid Water
Range of ambient temperature -4 .. 131 °F
Rated current 5
Rated flow 52.8 US gpm
Rated head 64.6 ft
Rated power - P2 1.1 kW
Rated speed 3430-3470 rpm
Rated voltage 3 x 208-230YY/440-480Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1
Size 80CB
Size of inlet connection 1 1/2 inch
Size of outlet connection 1 1/2 inch
Standard NEMA
Suitable for 50/60 Hz N
Terminal box position 12
Type of connection NPT(F)
Version A

Motor Curves

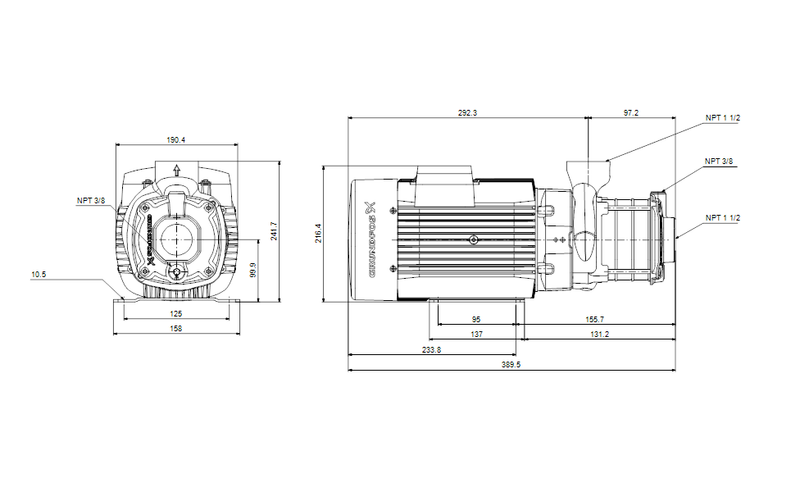

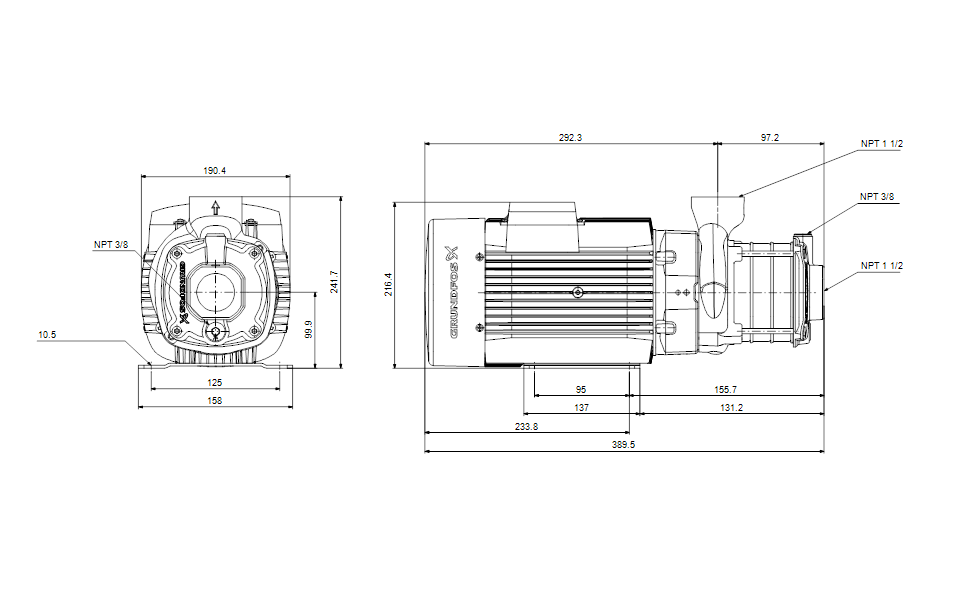

Dimensional Drawing

DWiring Diagram
