Description

Overview

Grundfos 96935710 (CM 1-7 A-R-G-E-AVBE O-A-A-N) is a horizontal end-suction centrifugal pump suited for commercial and light industrial users requiring compact, reliable fluid handling. The model fits applications where the CM/CME family is specified.

Key features

  • Manufactured for industrial and commercial pumping applications
  • Fits CM and CME pump families; compatible with booster and centrifugal system setups
  • End-suction centrifugal design delivers reliable pressure boosting and fluid transfer

Applications

Typical uses include building booster systems, HVAC circulation, water transfer, and general industrial process support where a compact centrifugal pump is required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 96935710

EAN 5700314056186
Applications Heating, Air-conditioning, Pressure boosting, Domestic water supply, Industrial applications
Approvals CE
Approvals for drinking water ACS
Built-in motor protection NONE
Cable included (Yes/No) N
Code for rubber E
Code for shaft seal AVBE
Connect code R
Connection 1 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Frame size 71BA
Frequency converter NONE
Gross weight 35.9 lb
Housing Stainless steel
IE Efficiency class IE3
Impeller Stainless steel
Impellers 7
Insulation class (IEC 85) F
Liquid temperature range -4 .. 104 °F
Mains frequency 50 Hz
Material code G
Material Pricing Group 35
Max pressure at stated temp 145 psi / 104 °F
Maximum operating pressure 10 bar
Minimum efficiency index, MEI ≥ 0.68
Model A
Motor standard IEC
Net weight 30.4 lb
Outlet position 12
Product family CM
Pump housing Stainless steel
Pump speed on which pump data are based 2900 rpm
Pump version A
Pumped liquid Water
Range of ambient temperature -4 .. 131 °F
Rated current 2
Rated flow 8.98 US gpm
Rated head 208.2 ft
Rated power - P2 0.43 kW
Rated speed 2890 rpm
Rated voltage 3 x 220-230D/380-400Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1
Size 71BA
Size of inlet connection 1 inch
Size of outlet connection 1 inch
Standard IEC
Starting current 610-660 %
Suitable for 50/60 Hz Y
Terminal box position 12
Type of connection Rp
Version A

Motor Curves

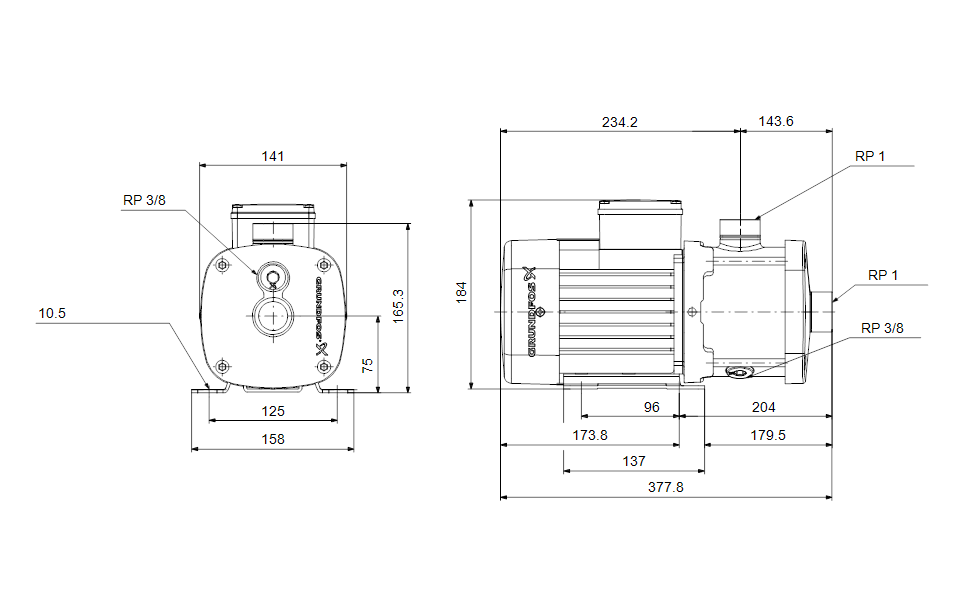

Dimensional Drawing

DWiring Diagram
