Grundfos 99377342 - CM 1-6 A-S-G-E-AQQE H-A-A-N | Horizontal | End Suction | Centrifugal

GRUNDFOSSKU: 99377342

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

The Grundfos 99377342 CM 1-6 A-S-G-E-AQQE H-A-A-N is a horizontal end-suction centrifugal pump suited for industrial and commercial fluid handling. It fits applications requiring compact, close-coupled or multistage configurations and is commonly used by maintenance and facilities teams.

Key features

  • Designed as a horizontal end-suction centrifugal unit for reliable single- or multi-stage operation
  • Suitable for booster, close-coupled, and horizontal multistage installations per common CM series uses
  • Provides dependable pump performance and ease of service to minimize downtime

Applications

Typical uses include building services, pressure boosting, HVAC circulation, and general industrial liquid transfer where a compact centrifugal pump is required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99377342

EAN 5713828118769
Applications Heating, Air-conditioning, Pressure boosting, Domestic water supply, Industrial applications
Approvals CE
Approvals for drinking water WRAS
Built-in motor protection NONE
Cable included (Yes/No) N
Code for rubber E
Code for shaft seal AQQE
Connect code S
Connection 1 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Frame size 80CB
Frequency converter NONE
Gross weight 43.2 lb
Housing Stainless steel
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 6
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Mains frequency 60 Hz
Material code G
Material Pricing Group 35
Max pressure at stated temp 232 psi / 194 °F
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.68
Model A
Motor standard NEMA
Net weight 37.7 lb
Outlet position 12
Product family CM
Pump housing Stainless steel
Pump speed on which pump data are based 3480 rpm
Pump version A
Pumped liquid Water
Range of ambient temperature -4 .. 131 °F
Rated current 1.72 A
Rated flow 8.98 US gpm
Rated head 178.4 ft
Rated power - P2 1.1 kW
Rated speed 3450 rpm
Rated voltage 3 x 575 V V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1
Size 80CB
Size of inlet connection 1 inch
Size of outlet connection 1 inch
Standard NEMA
Starting current 7.3
Suitable for 50/60 Hz N
Terminal box position 12
Type of connection NPT(F)
Version A

Motor Curves

Dimensional Drawing

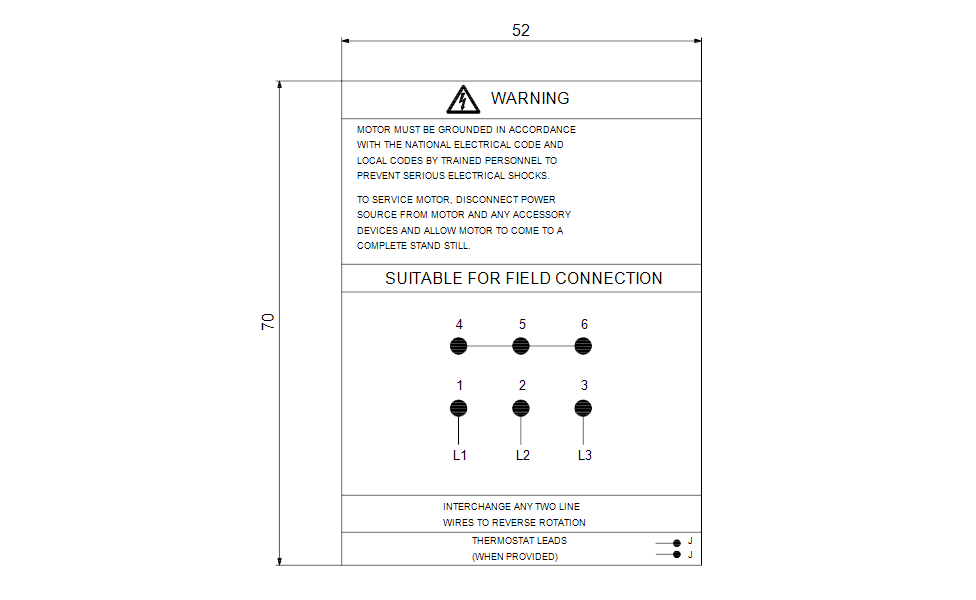

DWiring Diagram
