Grundfos 98125782 - CM 1-6 A-S-I-V-AQQV B-A-A-N | Horizontal | End Suction | Centrifugal

Save $874.92
GRUNDFOSSKU: 98125782

Price:
Sale price$1,027.08 Regular price$1,902.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

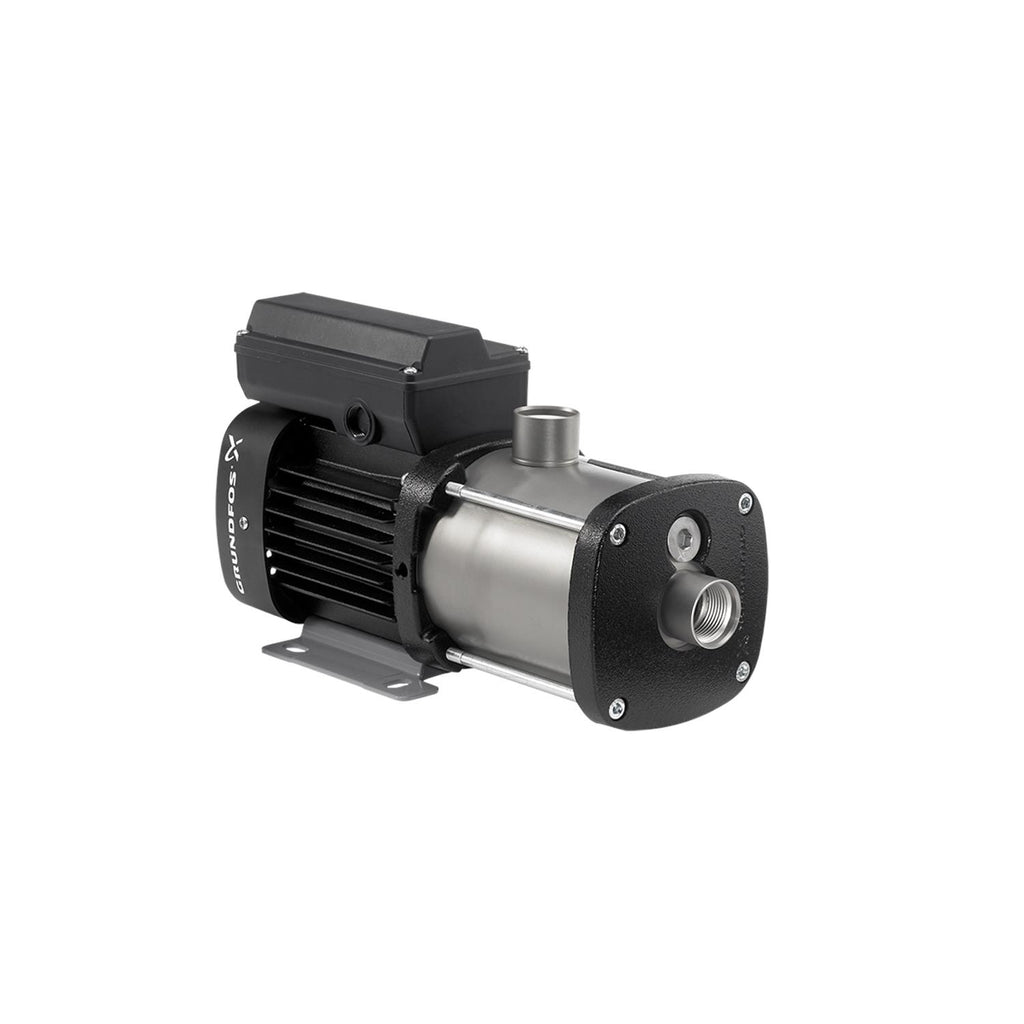

Grundfos 98125782 - CM 1-6 A-S-I-V-AQQV B-A-A-N Centrifugal Pump

The Grundfos 98125782 - CM 1-6 A-S-I-V-AQQV B-A-A-N is a high-performance horizontal end suction centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, a leader in pump technology, this model is ideal for boosting pressure and transferring fluids efficiently.

With its robust construction and reliable operation, the CM series is perfect for both single and multi-stage applications. This pump is categorized under various types including Cm, Cm Cme, CM; CME; CME-Plus, making it a versatile choice for your pumping needs.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility.

For more information on specifications and applications, feel free to reach out to our knowledgeable team. We are here to help you find the perfect solution for your pumping requirements.

EAN 5710629464262
Applications Heating, Air-conditioning, Pressure boosting, Domestic water supply, Industrial applications
Approvals CE
Approvals for drinking water WRAS
Built-in motor protection NONE
Cable included (Yes/No) N
Code for rubber V
Code for shaft seal AQQV
Connect code S
Connection 1 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Frame size 80AA
Frequency converter NONE
Gross weight 38.8 lb
Housing Stainless steel
Impeller Stainless steel
Impellers 6
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Mains frequency 60 Hz
Material code I
Material Pricing Group 35
Max pressure at stated temp 232 psi / 194 °F
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.68
Model A
Motor standard NEMA
Net weight 33.3 lb
Outlet position 12
Product family CM
Pump housing Stainless steel
Pump speed on which pump data are based 3480 rpm
Pump version A
Pumped liquid Water
Range of ambient temperature -4 .. 131 °F
Rated current 10.6/5.4 A
Rated flow 8.98 US gpm
Rated head 178.4 ft
Rated power - P2 0.78 kW
Rated speed 3240 rpm
Rated voltage 1 x 115/230 V V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Service factor 1
Size 80AA
Size of inlet connection 1 inch
Size of outlet connection 1 inch
Standard NEMA
Starting current 300-300 %
Suitable for 50/60 Hz N
Terminal box position 12
Type of connection NPT(F)
Version A

Motor Curves

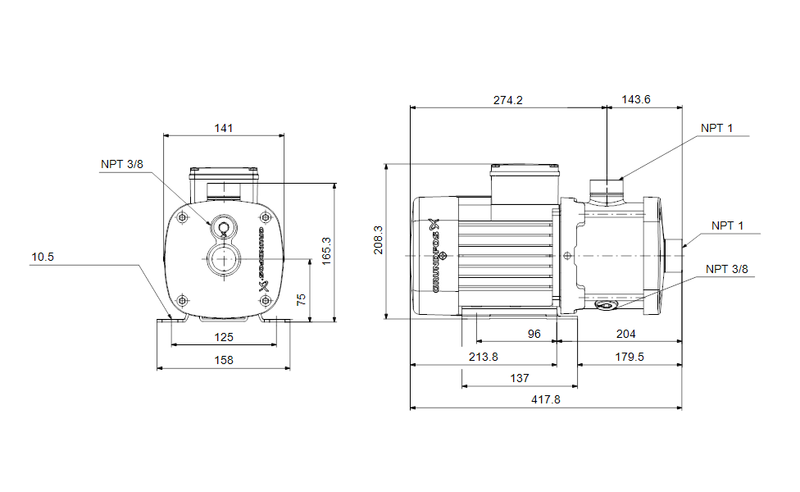

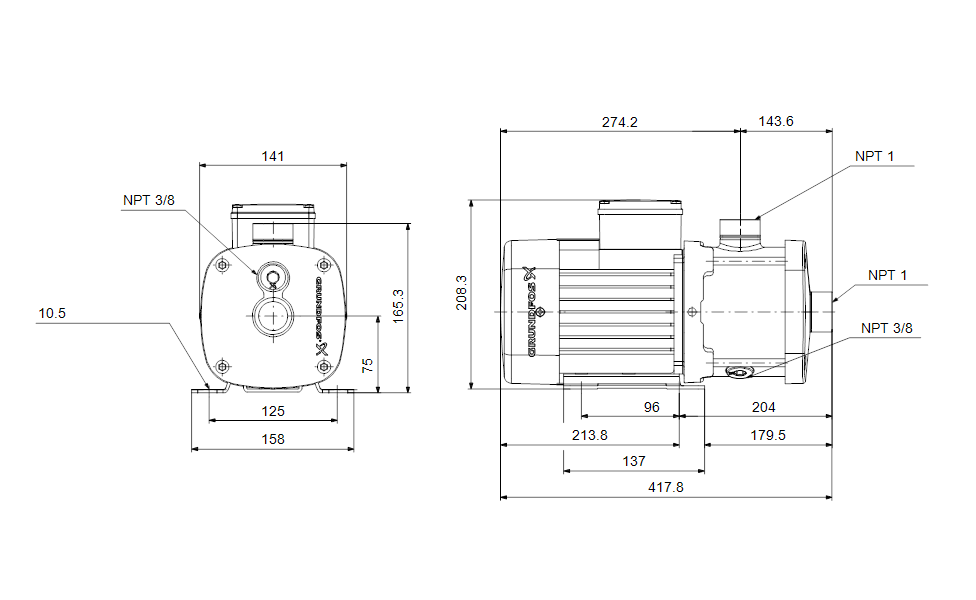

Dimensional Drawing

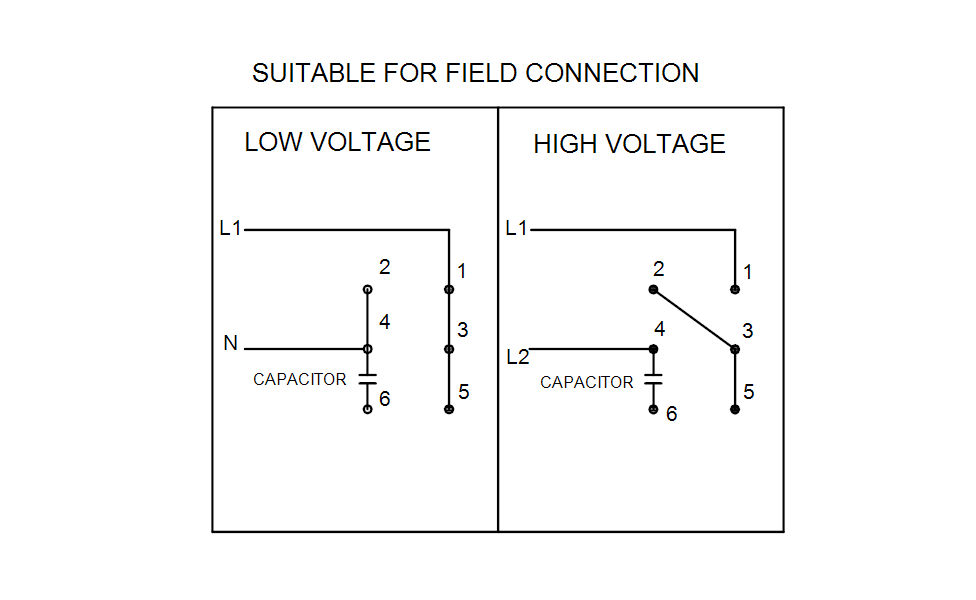

DWiring Diagram
