Grundfos 99433434 - CM 1-5 A-S-I-E-AQQE J-A-A-N | Multistage | Centrifugal | Horizontal

This item ships free!
GRUNDFOSSKU: 99433434

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

CM 1-5 A-S-I-E-AQQE J-A-A-N | Compact, reliable, horizontal, multistage, end-suction centrifugal pump with axial suction port and radial discharge port. Pump materials in contact with the liquid are in stainless steel. The mechanical shaft seal is a special designed, unbalanced O-ring seal. Pipework connection is via internal NPT pipe threads. The pump is fitted with a 3-phase, foot-mounted, fan-cooled asynchronous motor.

EAN 5713829038981
Density 62.29 lb/ft³
Gross weight 34.4 lb
Liquid temperature range -4 .. 248 °F
Material Pricing Group 35
Max pressure at stated temp 232 psi / 194 °F
Max. capacity 2 ,
Net weight 28.9 lb
Range of ambient temperature -4 .. 131 °F
Rated flow 8.98 US gpm
Rated head 148.6 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Selected liquid temperature 68 °F

Motor Curves

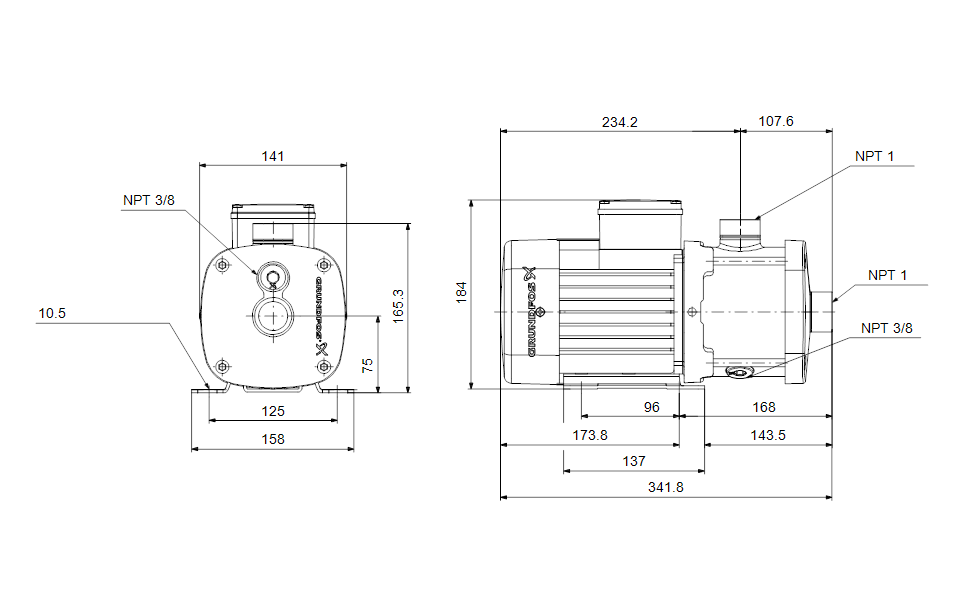

Dimensional Drawing

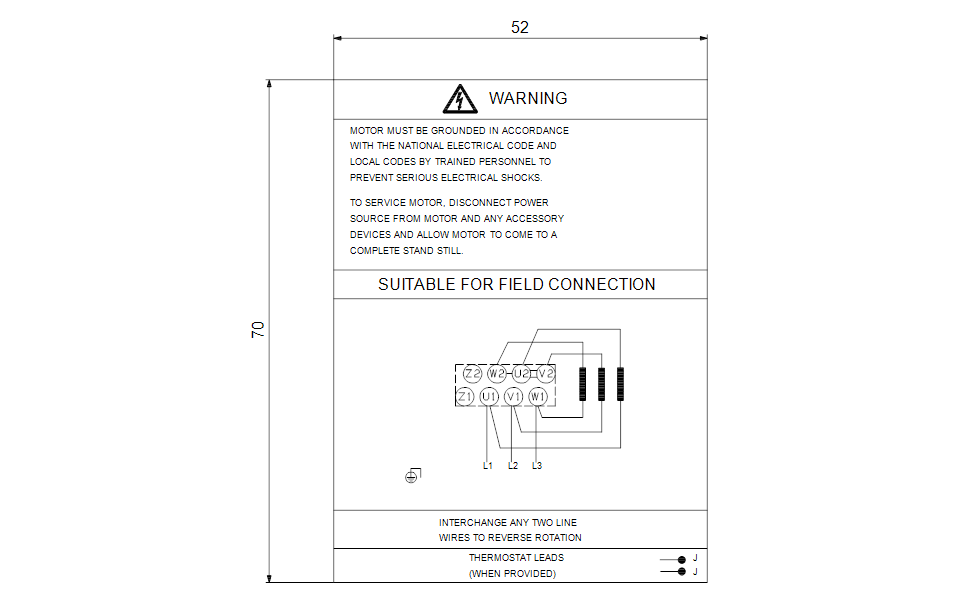

DWiring Diagram
