Grundfos 97892203 - CM 1-4 A-R-A-V-AQQV B1-A-A-N | Horizontal | End Suction | Centrifugal

GRUNDFOSSKU: 97892203

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
CM 1-4 A-R-A-V-AQQV B1-A-A-N · Horizontal Multistage End-Suction Pump
CM0.805HP115/230V1-Phase60 HzIP55Stainless steel

The Grundfos 97892203 (CM 1-4 A-R-A-V-AQQV B1-A-A-N) is a Horizontal Multistage End-Suction Pump. Reliable, quiet, compact horizontal end-suction pump. Modular design for flexible performance selection. For water supply, pressure boosting, and liquid transfer. Nominal performance: 8.98US gpm at 116.2ft. Rated 115/230V, 1-Phase, 60 Hz. Applications include HVAC: Heating, HVAC: Air Conditioning, Plumbing: Pressure Boosting and more.

Power
0.805HP
Voltage
115/230V
Phase
1-Phase
Max Flow
8.98US gpm
Max Head
116.2ft
Max Pressure
145.04psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
Built and tested to IEC and NEMA standards
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Genuine Grundfos Part

OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.

Full Traceability

Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.

Authorized Source

PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.

Confirm Compatibility

Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.

Technical Support Available

PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.

Contact for Availability

Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.

Model Information — CM 1-4 A-R-A-V-AQQV B1-A-A-N
Series: CM
Model Code: CM 1-4 A-R-A-V-AQQV B1-A-A-N
Impeller Material: Stainless steel
Housing Material: Cast iron
Shaft Seal: AQQV
Technical Specifications
Model Number 97892203
Product Series CM
Series Description Horizontal Multistage End-Suction Pump
Power 0.805HP
Voltage 115/230V
Phase 1-Phase
Frequency 60 Hz
Motor Speed 3240rpm
Pump Speed 3480rpm
Full Load Current 7,6/3,9A
Insulation Class F
Protection Class (IP) IP55
Nominal Flow 8.98US gpm
Nominal Head 116.2ft
Max Operating Pressure 145.04psi
Max Fluid Temperature 194°F
Max Ambient Temperature 131°F
Inlet Connection 1inch
Outlet Connection 1inch
Pipe Standard Rp
Impeller Material Stainless steel
Housing Material Cast iron
Shaft Seal AQQV
Approvals / Certifications CULUS, EAC, CURUS
Applications
HVAC: Heating
HVAC: Air Conditioning
Plumbing: Pressure Boosting
District heating
Residential water pressure boosting
Wash and clean
Industrial heating
Industrial water supply & transfer
Desalination
Municipal water transportation
Rotor & spray irrigation
Ground water transfer
Livestock & Wildlife Watering
Water Treatment Fertigation
Chemigation & Dosing
Pivot & Lateral Irrigation
Frost protection
Solar boosting and water supply solutions
Controls and digital groundwater management
Solar controls and digital water management
Municipal solar solutions
Agriculture solar solutions
Livestock watering with solar solutions
Community solar solutions
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 115/230V, 1-Phase, 60 Hz.
Temperature limits Do not exceed max fluid temperature 194°F or max ambient temperature 131°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. CM pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — CM Series
✓ Product Data Sheet — CM 1-4 A-R-A-V-AQQV B1-A-A-N
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
EAN 5710625918226
Applications Heating, Air-conditioning, Pressure boosting, Domestic water supply, Industrial applications
Approvals CE
Approvals for drinking water WRAS
Built-in motor protection NONE
Cable included (Yes/No) N
Code for rubber V
Code for shaft seal AQQV
Connect code R
Connection 1 inch
Curve tolerance ISO9906:2012 3B
Density 998.2 kg/m³
Enclosure class (IEC 34-5) IP55
Frame size 71BA
Frequency converter NONE
Gross weight 14.8 kg
Housing Cast iron
Impeller Stainless steel
Impellers 4
Insulation class (IEC 85) F
Liquid temperature range -20 .. 90 °C
Mains frequency 60 Hz
Material code A
Material Pricing Group 35
Max pressure at stated temp 10 bar / 90 °C
Maximum operating pressure 10 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor standard IEC
Net weight 12.3 kg
Outlet position 12
Product family CM
Pump housing Cast iron
Pump speed on which pump data are based 3480 rpm
Pump version A
Pumped liquid Water
Range of ambient temperature -20 .. 55 °C
Rated current 7.6/3.9 A
Rated flow 2.04 m³/h
Rated head 35.43 m
Rated power - P2 0.6 kW
Rated speed 3240 rpm
Rated voltage 1 x 115/230 V V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 20 °C
Service factor 1
Size 71BA
Size of inlet connection 1 inch
Size of outlet connection 1 inch
Standard IEC
Starting current 260-260 %
Suitable for 50/60 Hz N
Terminal box position 12
Type of connection Rp
Version A

Motor Curves

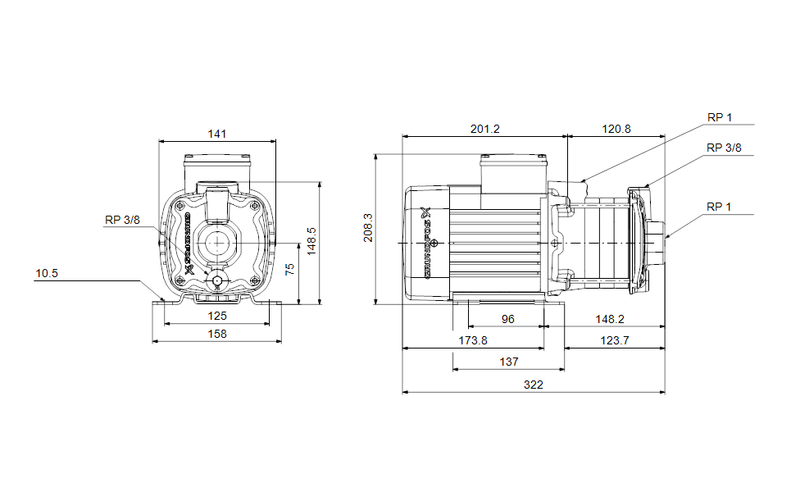

Dimensional Drawing

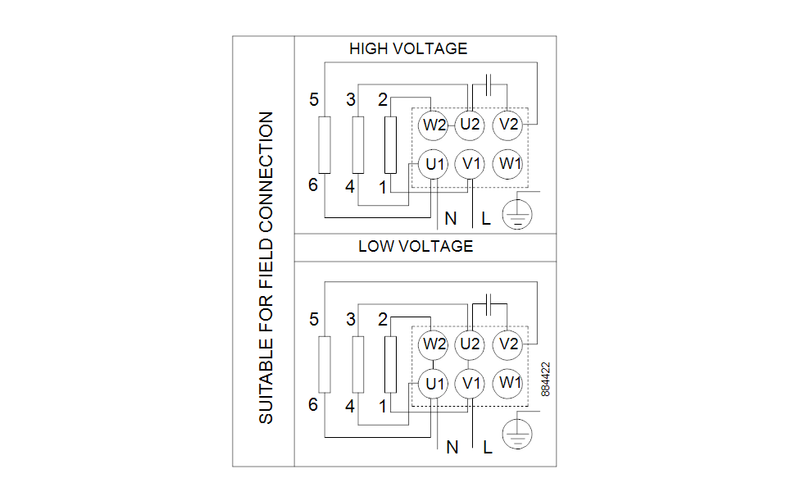

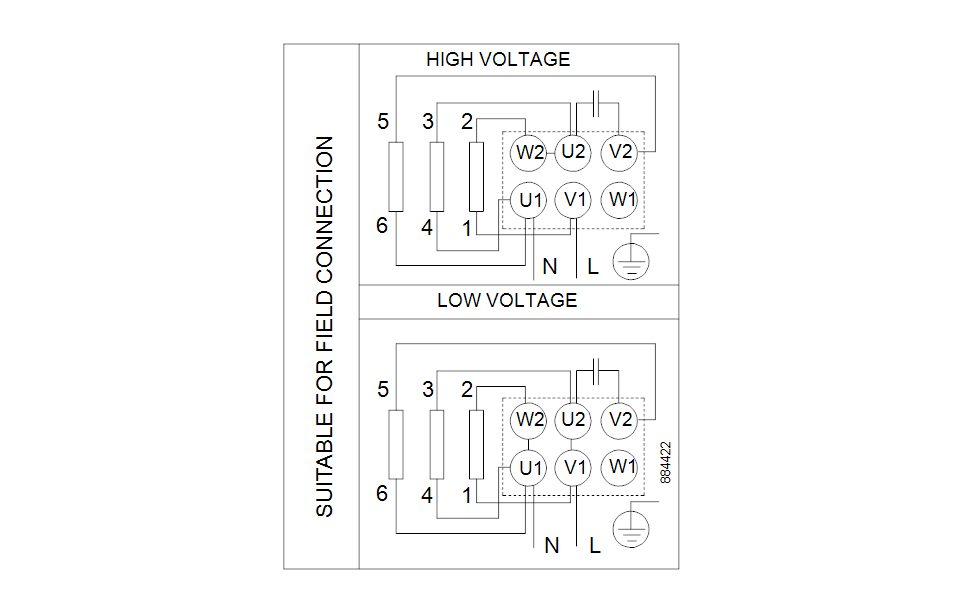

DWiring Diagram
