Grundfos 97568294 - CM 1-3 A-S-A-V-AQQV H-A-A-N | Horizontal | End Suction | Centrifugal

GRUNDFOSSKU: 97568294

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

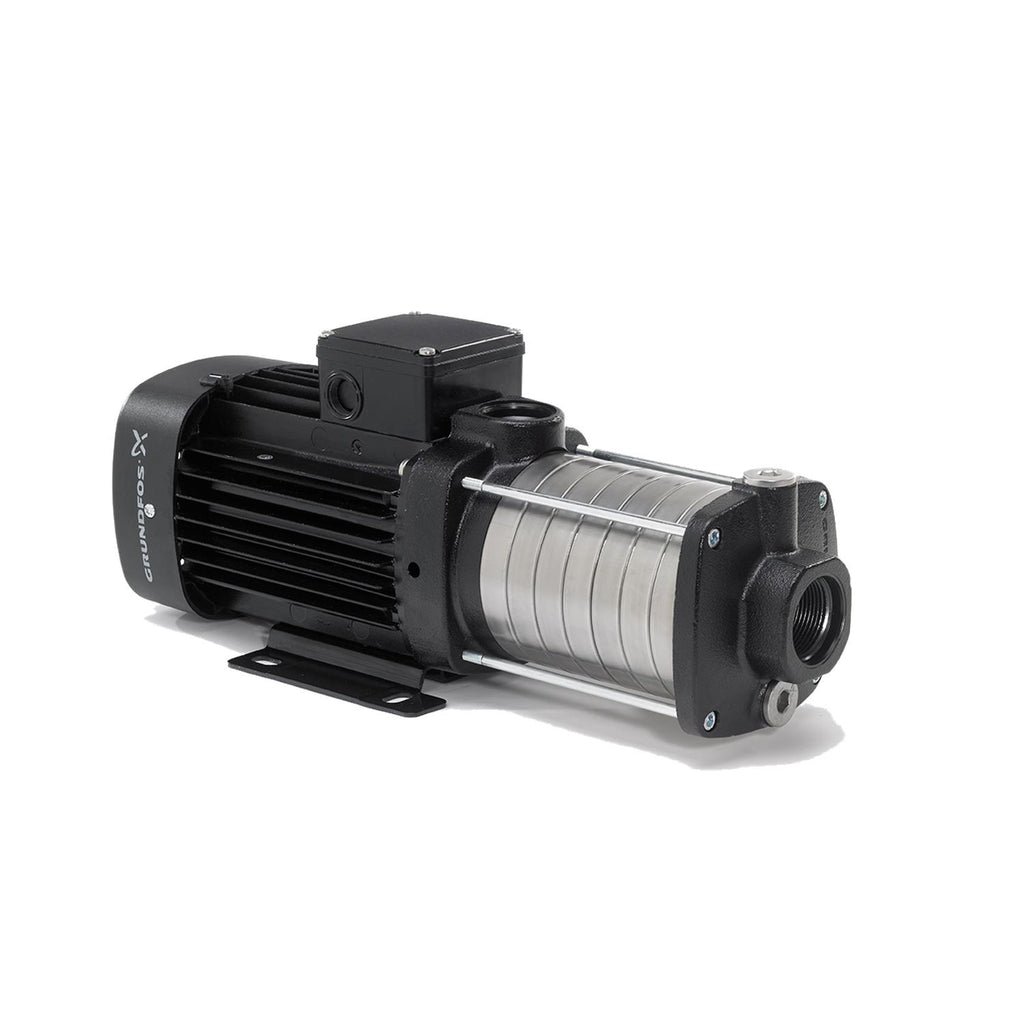

The Grundfos 97568294 CM 1-3 A-S-A-V-AQQV H-A-A-N is a horizontal, end-suction centrifugal pump designed for industrial and commercial fluid handling. Technicians and maintenance teams use this model where reliable pressure and flow control are required.

Key features

  • End-suction centrifugal design for efficient single-stage pumping
  • Horizontal configuration suitable for compact installations and close-coupled setups
  • Engineered to support booster and multi-stage applications for consistent pressure delivery

Applications

Typical uses include building services, pressure boosting, HVAC circulation, light industrial process systems, and general liquid transfer where a compact, horizontal centrifugal pump is specified.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 97568294

EAN 5700318668552
Applications Heating, Air-conditioning, Pressure boosting, Domestic water supply, Industrial applications
Approvals CE
Approvals for drinking water WRAS
Built-in motor protection NONE
Cable included (Yes/No) N
Code for rubber V
Code for shaft seal AQQV
Connect code S
Connection 1 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Frame size 71AA
Frequency converter NONE
Gross weight 30.4 lb
Housing Cast iron
Impeller Stainless steel
Impellers 3
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Mains frequency 60 Hz
Material code A
Material Pricing Group 35
Max pressure at stated temp 145 psi / 194 °F
Maximum operating pressure 10 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor standard NEMA
Net weight 24.9 lb
Outlet position 12
Product family CM
Pump housing Cast iron
Pump speed on which pump data are based 3480 rpm
Pump version A
Pumped liquid Water
Range of ambient temperature -4 .. 131 °F
Rated current 0.7 A
Rated flow 8.98 US gpm
Rated head 86.42 ft
Rated power - P2 0.43 kW
Rated speed 3340 rpm
Rated voltage 3 x 575 V V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Service factor 1
Size 71AA
Size of inlet connection 1 inch
Size of outlet connection 1 inch
Standard NEMA
Suitable for 50/60 Hz N
Terminal box position 12
Type of connection NPT(F)
Version A

Motor Curves

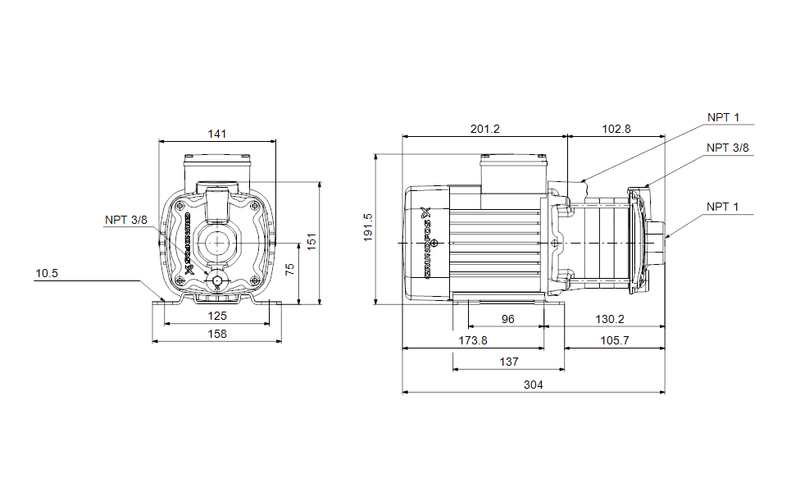

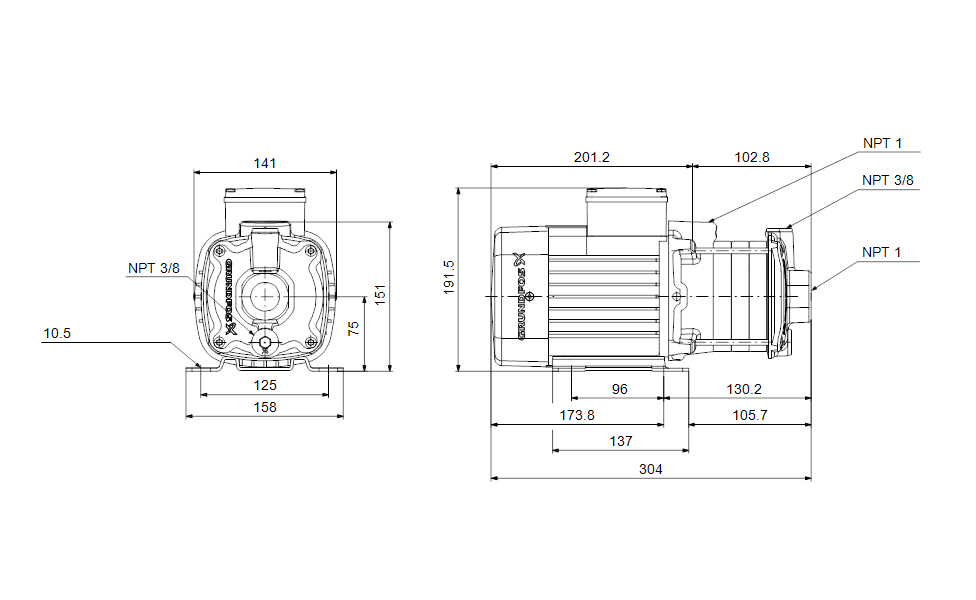

Dimensional Drawing

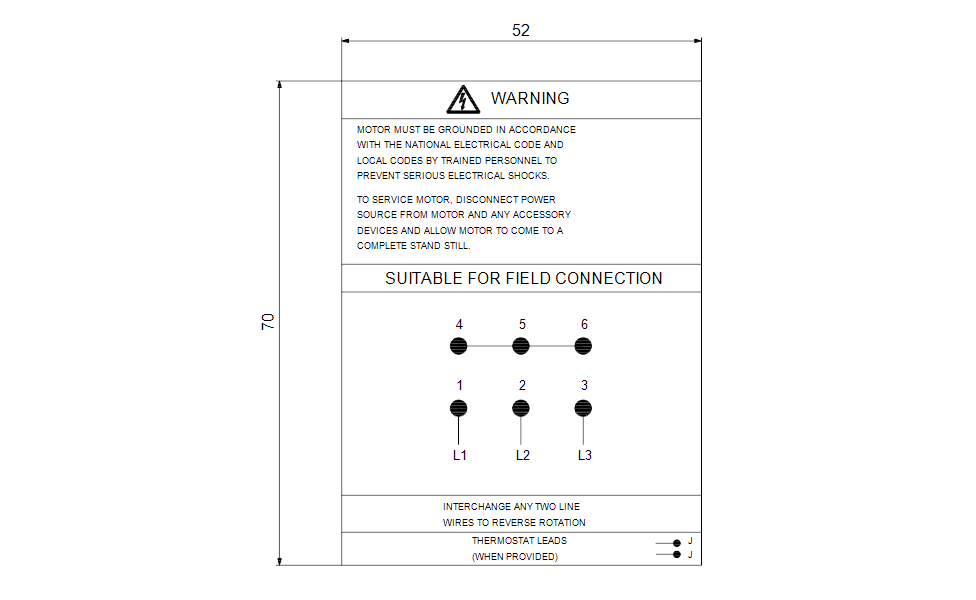

DWiring Diagram
