Grundfos 97527636 - CM 1-3 A-R-A-E-AQQE J-A-A-N | Horizontal | End Suction | Centrifugal

GRUNDFOSSKU: 97527636

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 97527636 - CM 1-3 A-R-A-E-AQQE J-A-A-N is a horizontal, end-suction centrifugal pump used by industrial and commercial service technicians for replacement and maintenance of Grundfos centrifugal systems.

Key features

  • End-suction centrifugal construction for efficient liquid handling
  • Configured for horizontal and close-coupled installations, compatible with booster and multistage setups
  • Service-special designation for use in repair, retrofit, and OEM replacement scenarios

Applications

Typical uses include building booster systems, industrial process water transfer, HVAC circulation, and service-repair jobs where Grundfos centrifugal performance is required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 97527636

EAN 5700317800472
Approvals CE
Approvals for drinking water WRAS
Built-in motor protection NONE
Cable included (Yes/No) N
Code for rubber E
Code for shaft seal AQQE
Connect code R
Connection 1 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Frame size 71AA
Frequency converter NONE
Gross weight 30.4 lb
Housing Cast iron
Impeller Stainless steel
Impellers 3
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Mains frequency 50 Hz
Material code A
Material Pricing Group 35
Max pressure at stated temp 145 psi / 194 °F
Maximum operating pressure 10 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor standard IEC
Net weight 24.9 lb
Pump housing Cast iron
Pump speed on which pump data are based 2900 rpm
Pump version A
Pumped liquid Water
Range of ambient temperature -4 .. 131 °F
Rated current 0.55-0.65 A
Rated flow 8.98 US gpm
Rated head 86.41 ft
Rated power - P2 0.25 kW
Rated speed 2870-2890 rpm
Rated voltage 3 x 380-415 V V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1
Size 71AA
Size of inlet connection 1 inch
Size of outlet connection 1 inch
Standard IEC
Starting current 730-780 %
Suitable for 50/60 Hz Y
Terminal box position 12
Type of connection Rp
Version A

Motor Curves

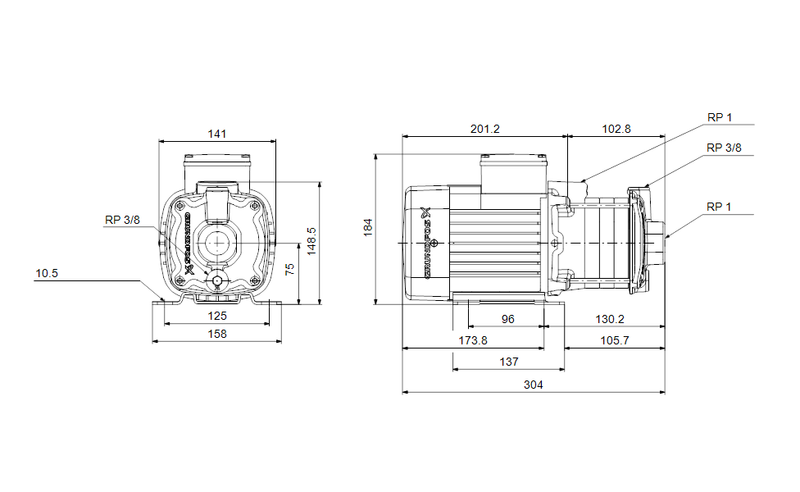

Dimensional Drawing

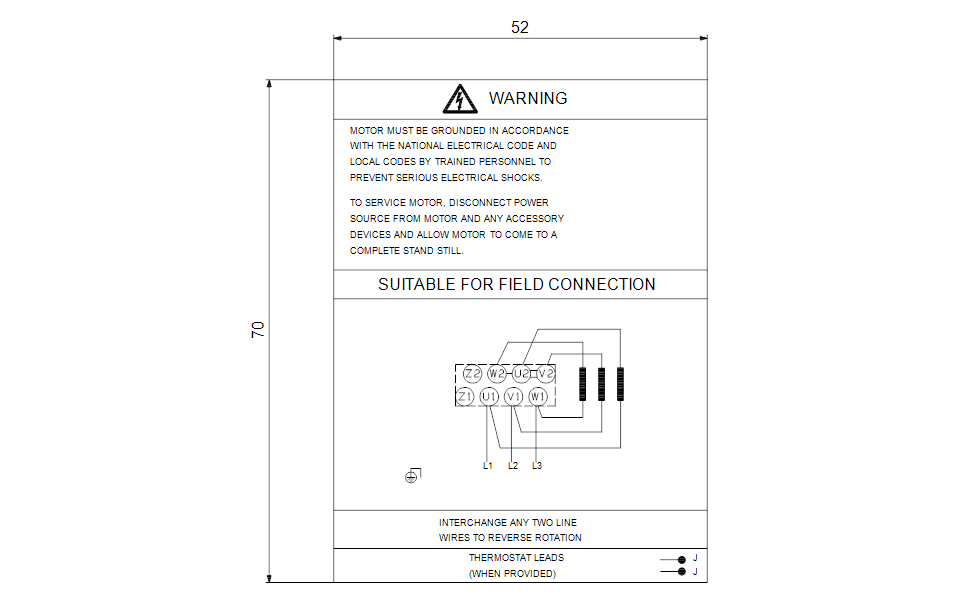

DWiring Diagram
