Close Coupled Motor, ODP, 3 HP, 3600 RPM, 230/460V, 145JM Frame, C-Face With Feet 460V 60HZ Three Phase 3 HP

WorldWide ElectricSKU: OCCP3-36-145JM

Price:
Sale price$469.11
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

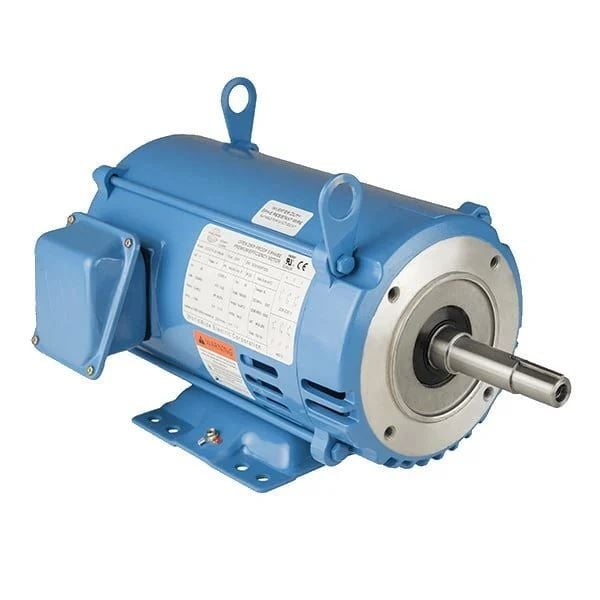

WorldWide Electric Close Coupled Pump Motor - 3 HP

Introducing the OCCP 3 HP Close Coupled Pump Motor from WorldWide Electric, designed for optimal performance in various pumping applications. This premium efficiency motor operates at 3600 RPM and is suitable for 3-phase systems with a voltage rating of 230/460V at 60 Hz. The 145JM frame ensures a robust and reliable installation, while the open drip-proof (ODP) design provides excellent cooling and protection against environmental factors.

Key features include:

  • Power: 3 HP
  • Speed: 3600 RPM
  • Voltage: 230/460V
  • Phase: 3-Phase
  • Frame: 145JM
  • Type: Close Coupled, C-Face with Feet
  • Construction: Rolled Steel
  • Efficiency: Premium Efficiency

This motor is ideal for applications requiring a close-coupled design, providing a compact and efficient solution for your pumping needs. At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the OCCP3-36-145JM. If you encounter any difficulties in finding the right item, don’t hesitate to reach out to our knowledgeable team for support.

Supplier Part Number 8501.52.4000
Category Electric Motors
Subcategory Close Coupled Pump Motors - ODP
Approximate Weight (lbs) 42
Degree of Protection IP23
Enclosure Type ODP
FL Efficiency (%) 85.5
Frame Size 145JM
Frequency 60/50 HZ*
Full Load Amps 3.6
Horsepower 3
Insulation Class Class F
Mounting Type C-Face with Feet
Phase Three-Phase
RPM 3600
Service Factor 1.15
Shaft Type JM
Voltage 230/460
