Description

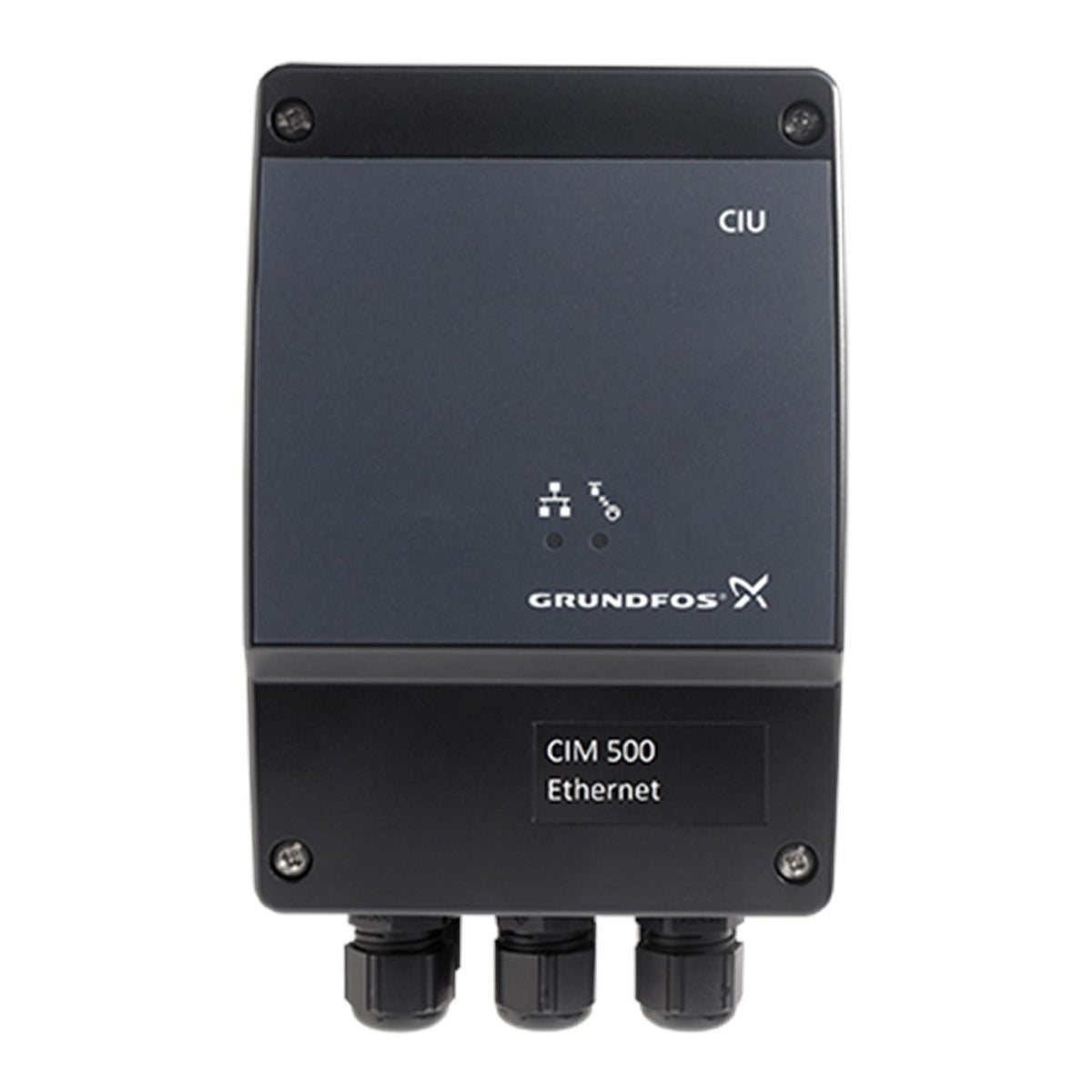

CIU 501 Ethernet, Modbus TCP, GRM IP The CIU 501 is a standard interface for data transmission between an industrial Ethernet networks based on Modbus TCP or Grundfos Remote Management system (GRM) and a Grundfos pump or controller. It makes data exchange possible between a Grundfos pump or pumping system and a PLC/ SCADA system or GRM. It features digital and analog IO which lets you connect to external sensors, actuators or for simple start/stop control of pumps. GENIbus communication based on RS45 interface to Grundfos pump or controller. Via a rotary switch you can select between protocols Modbus TCP and GRM IP. The interface module can be installed as a wall-mounted unit and is equipped with a 24-240 VAC/VDC power supply. The CIU unit must not be exposed to direct sunlight. Specifications Power supply: 24-230 V AC/DC
Ambient Temperature: 0°C to 45°C during operation
Enclosure class: IP 54
LEDs for status indicationSupported products: Grundfos E-pumps with GENIbus
MAGNA3 circulator with GENIbus module
TPED twinpump 11-22 kW
MP204 Motor protection
CUE VFD
CU 352 MPC controller with GENIbus module
CU 354 DDD controller with GENIbus module (only for Modbus TCP, PROFINET, GRM IP)
CU 362 Dedicated Controls with GENIbus module (only for Modbus TCP, PROFINET, GRM IP)
Smart digital dosing DDA XL (only for Modbus TCP, PROFINET, GRM IP)
Motor Curves

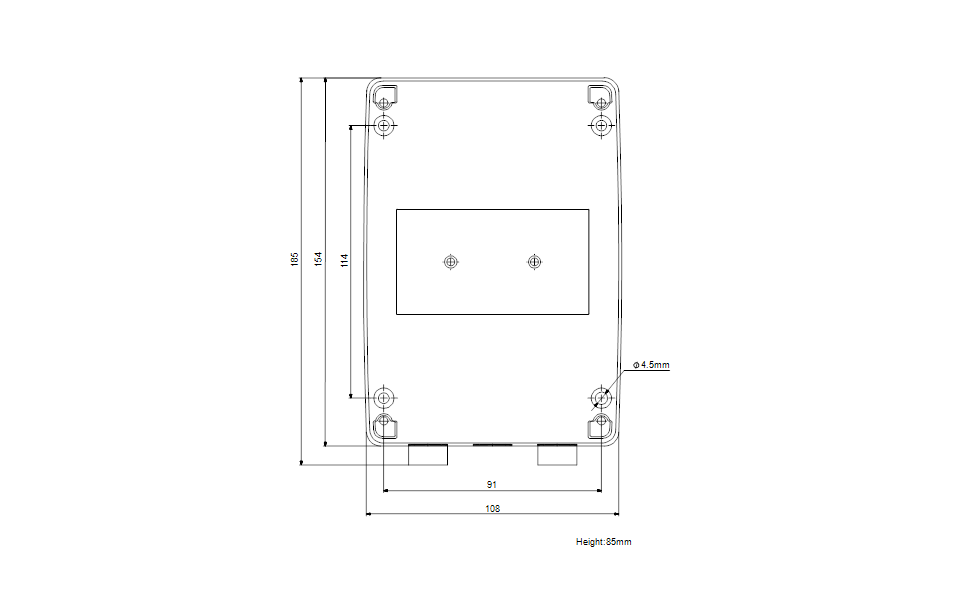

Dimensional Drawing
SMART Digital CHEMPAIRING SUITE 3.0 - SDCS CIU (Quick Guide)
A Wide Range (English) (Product brochure)
Process Driven Engineering (Leaflet)
Digitalization (Product brochure)
GRUNDFOS HYDROGEN SULPHIDE SOLUTION (Product brochure)
CIM/CIU COMMUNICATION INTERFACES (Product brochure)
Water Utility range (Product brochure)
Grundfos Remote Management (Installation and operating instructions)
