Description

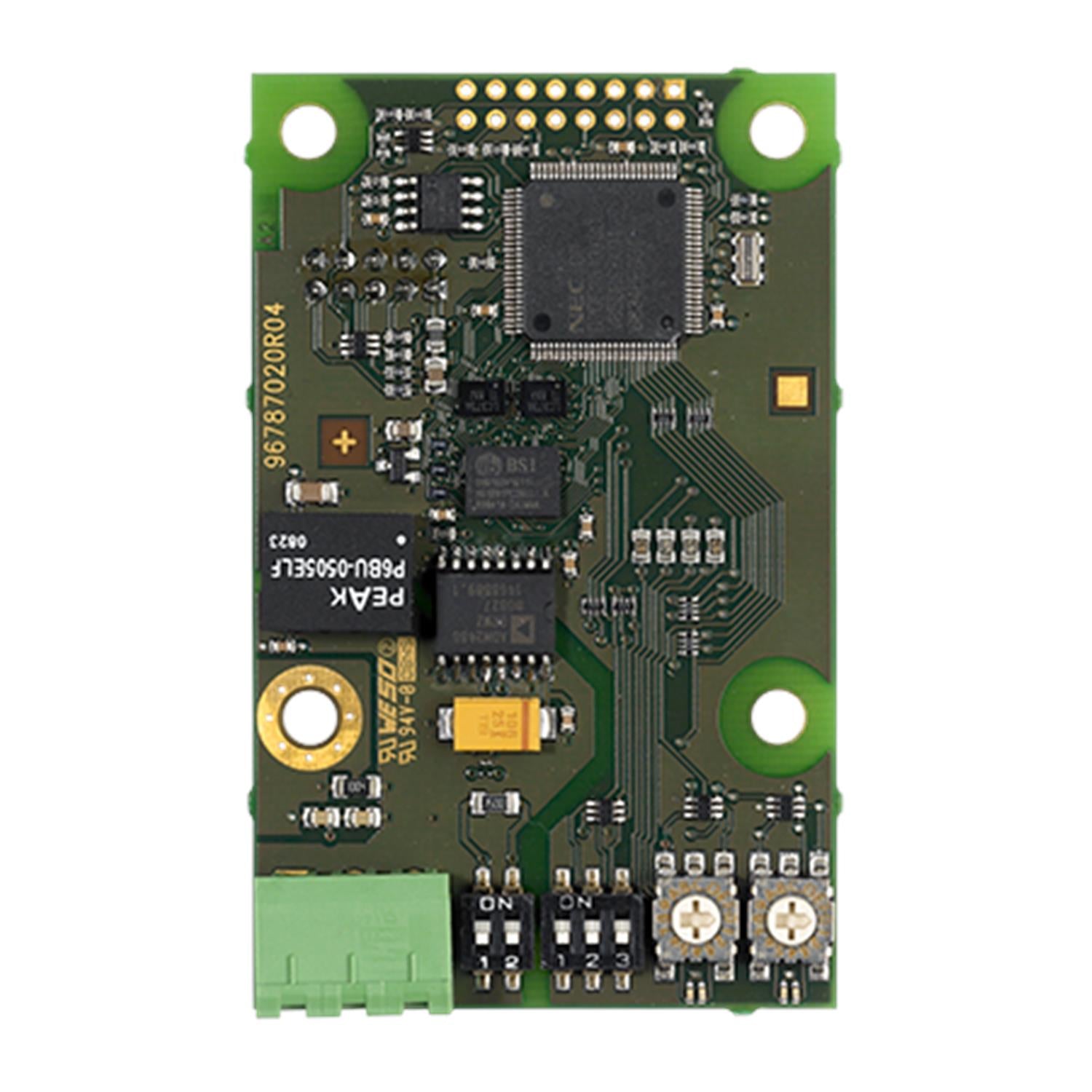

Communication interface for BACnet MS/TP | for building automationThe CIM 300 is a standard interface for data transmission between a BACnet MS/TP network and a Grundfos pump or controller. It makes data exchange possible between Grundfos pumping systems and a Building Management System or a supervisory controller. The communication interface is based on standard BACnet object types, allowing for straight forward data access over the network. The BACnet functional profile has been optimized for exchanging data between pumping systems and building management systems / operator workstations. The CIM 300 is an add-on communication module installed internally in the Grundfos product. Supported products: E-pump types up to 2. 2 kW and E-pump types at or above 11 kW
MAGNA3 circulators
CU 352 MPC controllerTransmission speeds (BACnet): 9. 6 / 19. 2 / 38. 4 / 76. 8 kbps
Motor Curves

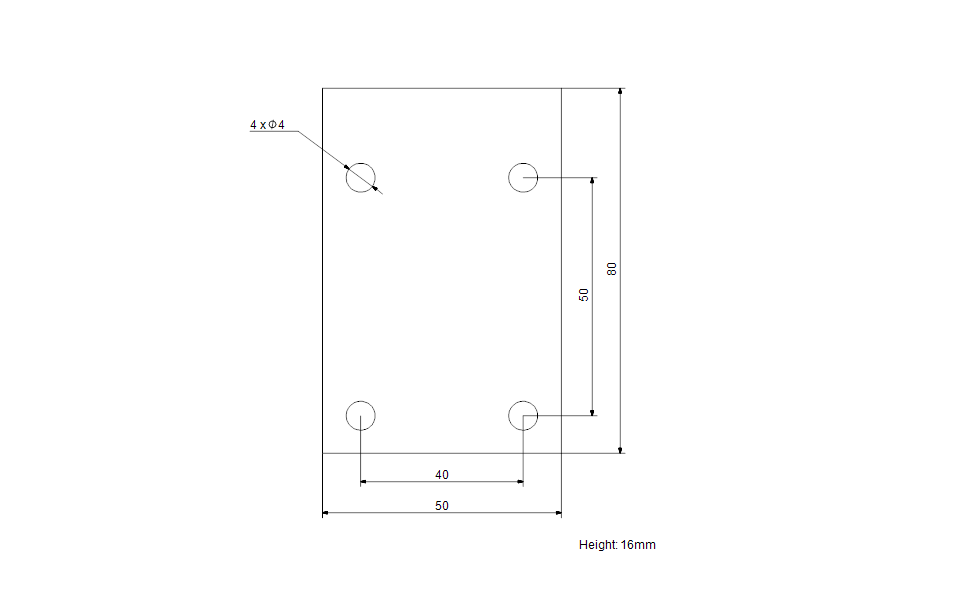

Dimensional Drawing
