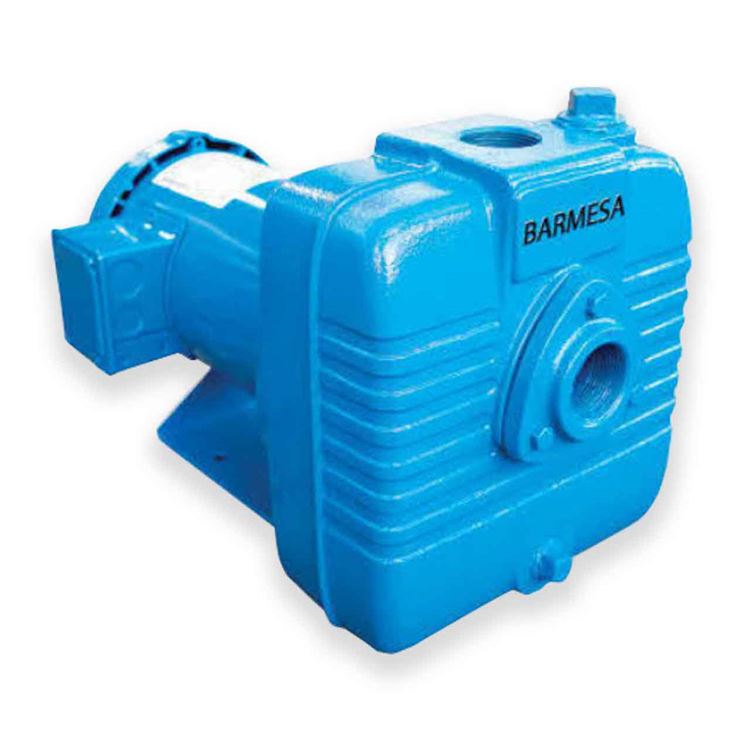

Barmesa BSP5CCE1-TBF Self-Priming Close Coupled Pump 3.0 HP 115/230V 1 Phase 230V 60HZ Single Phase 15 HP Cast Iron Bronze Neoprene Stainless Steel Enclosure 160°F 71°C Dewatering Use

Save $412.44 This item ships free!
BarmesaSKU: BSP5CCE1TBF

Price:
Sale price$3,024.56 Regular price$3,437.00
or Call for most up to date lead times. (781) 281-8905

Description

Barmesa Replacement Part — Component
Cast IronBSP3CCE, BSP4CCE & B

The Barmesa BSP5CCE1TBF (Cast Iron), compatible with the BSP3CCE, BSP4CCE & BSP5CCE series series.

Compatible Pump Series
BSP3CCE, BSP4CCE & BSP5CCE series — Self-Priming Close Coupled Pumps
Compactly designed with closely coupled motors and pumps, these units require no shaft alignment and are effortlessly installed . Ideal for confined spaces and rapid deployment needs, they efficiently self-prime and pump fluids without external aid. Suited for various settings, including residential
Motor: Open Drip Proof or TEFC, C-face, footed, squirrel cage induction, class B or F insulation. Single ph | Seal: Design: mechanical, self lubrication. Material: ceramic stationary part, carbon
  • Suction & Discharge: 1½" NPT, female.
  • Spherical solids handling: 3/8"
  • HP: 1.5, 2 & 3
  • RPM: 3500
  • Impeller: open, trash type, dynamically balanced. Cast iron ASTM A-48, Class 30.
Part Specifications
Part Number BSP5CCE1TBF
Material Cast Iron
Compatible Series BSP3CCE, BSP4CCE & BSP5CCE series
Brand Barmesa
CompatibilityThis part is designed for use with the BSP3CCE, BSP4CCE & BSP5CCE series series (Self-Priming Close Coupled Pumps) by Barmesa Pumps. Always verify using your pump's full model number before ordering. Contact PumpStop with your model number to confirm.
