Barmesa BSP20CCE3-BF Self-Priming Close Coupled Pump 10 HP 230/460V 3 Phase 460V 60HZ Three Phase 15 HP Cast Iron Bronze Neoprene Stainless Steel Enclosure 160°F 40°C Dewatering Use

Save $1,222.00 This item ships free!
BarmesaSKU: BSP20CCE3BF

Price:
Sale price$4,888.00 Regular price$6,110.00
or Call for most up to date lead times. (781) 281-8905

Description

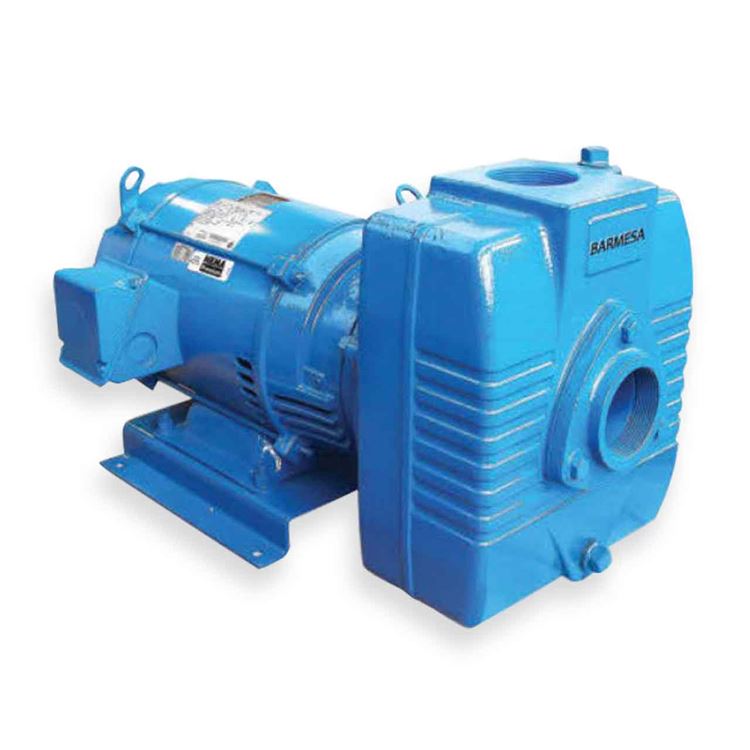

Barmesa BSP20CCE Series Self-Priming Close Coupled Pump

Self-Priming Close Coupled Pumps are Electric Motor Driven Centrifugal Pumps and come in 1½, 2 , 3, 5, 7½, 10 and 15 HP. Used for High Liquid Transfer, Irrigation and Dewatering.

Barmesa BSP20CCE Series Self-Priming Close Coupled Pump Features
Open Drip Proof , C-Face, Footed, Squirrel Cage Induction, Class B or F Insulated Motor.
Three Phase is 208-230/460V, 60 Hz, 3450 RPM
Cast Iron ASTM A-48, Class 30 Motor Housing and Bronze Volute
Check Valve is Neoprene Flap Type With Steel Weight
Seal is a Mechanical, Self Lubricating, Ni-Resist Stationary Part, Carbon Ring Seal and Exclusion in the Rotating Part. Buna-N Elastomer and Stainless Steel Spring.
3" NPT Discharge and Suction
Temperature Rating: 160°F (40°C)
