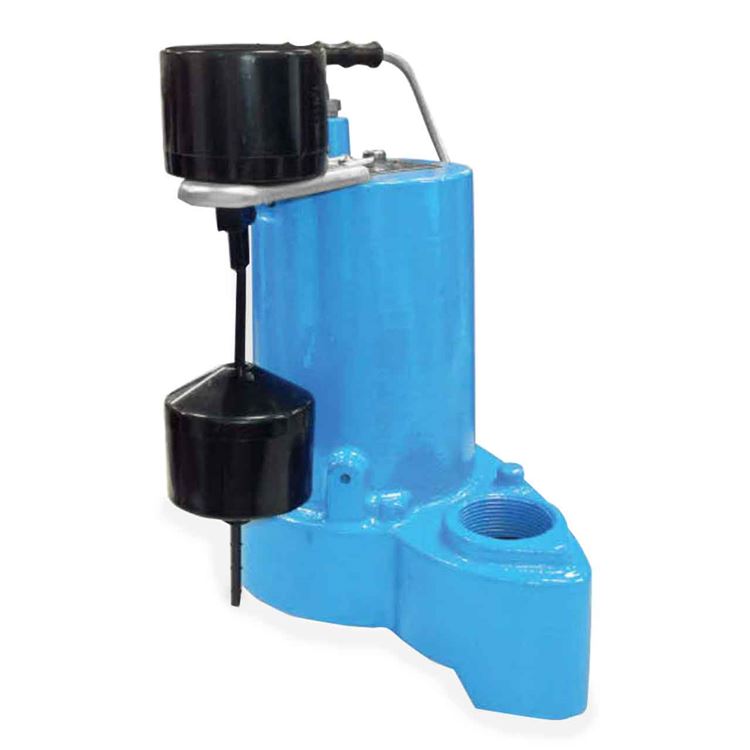

Image shown may not be actual product
Roll over image to zoom in
Click on image to zoom
Description
Barmesa Replacement Part — Component
The Barmesa BP33 (Cast Iron), compatible with the BP33 & BP50 series series.
Compatible Pump Series
BP33 & BP50 series — Submersible Sump/Utility Pumps
Designed to efficiently remove water from enclosed spaces like sump pits, basements, and utility areas , these pumps prevent flooding and water damage by swiftly pumping out accumulated water. Widely used in residential, commercial, and industrial settings, they aid in maintaining dry and safe envir
Motor: NEMA L, single phase, permanent split capacitor, 115 volts, 60 Hz, 3500 RPM, oil filled, with overlo | Seal: Design: single, mechanical, oil filled chamber. Material: carbon / ceramic / Bun
Designed to efficiently remove water from enclosed spaces like sump pits, basements, and utility areas , these pumps prevent flooding and water damage by swiftly pumping out accumulated water. Widely used in residential, commercial, and industrial settings, they aid in maintaining dry and safe envir
Motor: NEMA L, single phase, permanent split capacitor, 115 volts, 60 Hz, 3500 RPM, oil filled, with overlo | Seal: Design: single, mechanical, oil filled chamber. Material: carbon / ceramic / Bun
- Discharge: 1½" NPT, female, vertical.
- Spherical solids handling: 1/2"
- HP: 0.3 & 0.5
- RPM: 3500
- Impeller: 10 vane vortex, with vanes on back side, dynamically balanced. Cast ir
Part Specifications
| Part Number | BP33 |
| Material | Cast Iron |
| Compatible Series | BP33 & BP50 series |
| Brand | Barmesa |
CompatibilityThis part is designed for use with the BP33 & BP50 series series (Submersible Sump/Utility Pumps) by Barmesa Pumps. Always verify using your pump's full model number before ordering. Contact PumpStop with your model number to confirm.
