Description
The Grundfos 96293293 (BM hp 95-3-R NBR) is a Encapsulated pumps 17.5HP 380-415V 3-Phase — Booster modules. Nominal performance: 418US gpm at 118.1ft.
Why This Product
Submersible Sewage Construction — Continuous Submerged Duty
Motor is sealed for continuous submerged operation. Oil-filled motor section dissipates heat into the surrounding fluid. Cast iron construction throughout provides the wear resistance required for continuous sewage service.
Vortex / Channel Impeller — Solids Handling
Vortex impeller allows solids to pass without direct impeller contact — the fluid vortex carries solids through the pump. Channel impeller design provides maximum throughput for high-solids sewage. Select impeller type based on solids content and size.
Compact Design — Fits Standard Manholes
SL and SE series compact dimensions fit standard wet well manholes and sump dimensions without requiring custom basin modifications.
Grundfos Smart Connect — Remote Monitoring
Grundfos submersible pumps support Smart Connect monitoring — automatic level control, runtime monitoring, and alarm notification for remote wet well installations.
Double Mechanical Seal — Extended Service Life
Double mechanical seal in an oil-filled chamber provides redundant sealing protection. The outer seal prevents sewage from contacting the oil chamber — protecting the inner seal from abrasive and corrosive fluid exposure.
Cast Iron Construction — Industrial Grade Durability
Cast iron casing, impeller, and motor housing provide the mechanical strength and corrosion resistance required for continuous sewage pumping service. Cast iron is the industry standard for submersible sewage pump construction.
| Nominal Flow | 418US gpm |
| Nominal Head | 118.1ft |
| Max Operating Pressure | 1199.46psi |
| Max Fluid Temperature | 104°F |
| Power | 17.5HP |
| Voltage | 380-415V |
| Phase | 3-Phase |
| Frequency | 50 Hz |
| Motor Speed | 2840-2870-2880rpm |
| Full Load Current | 30.0-29.0A |
| Motor Start Method | direct-on-line |
| Min Efficiency Index (MEI) | -.-- |
| Protection Class (IP) | IP66 |
| Nominal Pipe Bore | 139 mm |
| Pipe Standard | PJE |
| Impeller Material | Stainless steel |
| Model Number | 96293293 |
| Product Series | BM hp 95-3-R |
| Model Code | BM hp 95-3-R NBR |
| Electrical | Requires correctly rated supply — 380-415V, 3-Phase, 50 Hz. Install with correctly rated circuit protection and motor starter. direct-on-line starting method. |
| Temperature limits | Do not exceed max fluid temperature 104°F. Operating outside these limits will damage seals and motor insulation. |
| Dry running | Do not run dry. BM hp 95-3-R pumps use the pumped fluid to lubricate the shaft seal — dry running destroys the seal within seconds. Install dry-run protection on all automatic installations. |
| Maintenance | Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance intervals. Contact PumpStop for documentation. |
Motor Curves

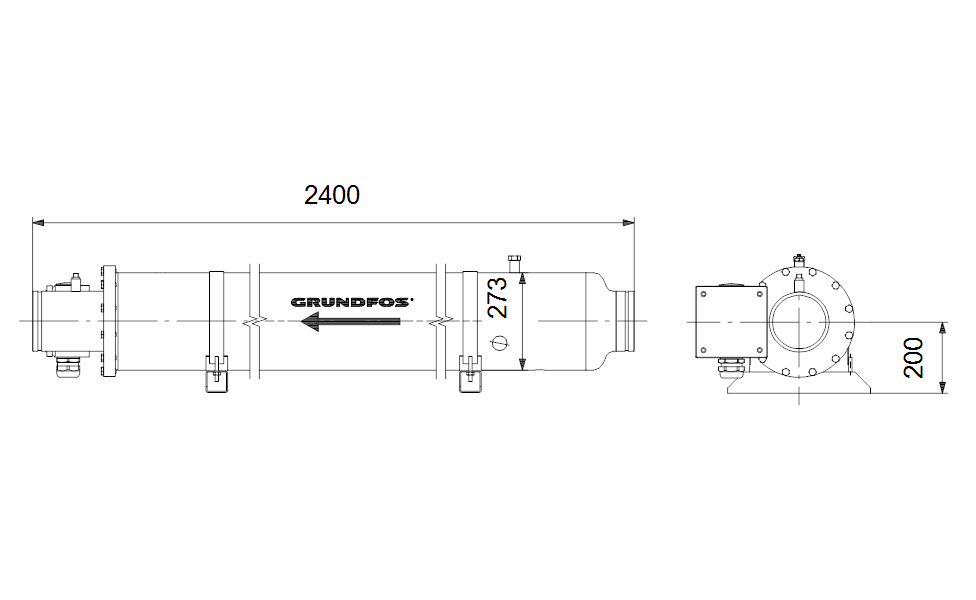

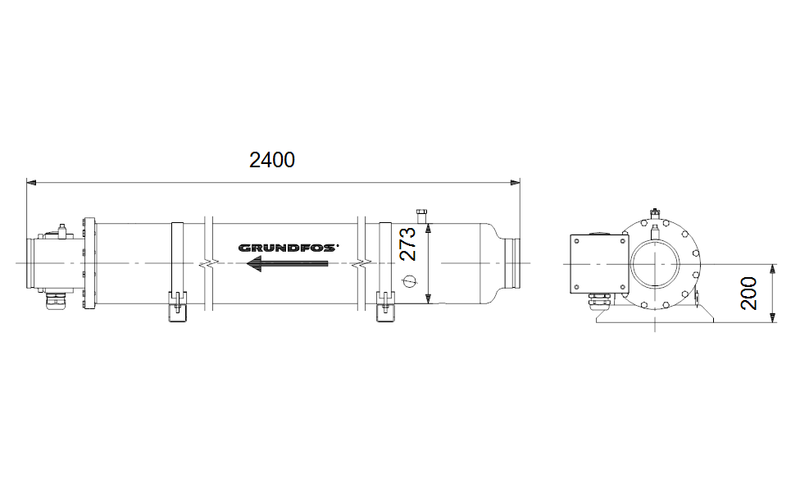

Dimensional Drawing
