Grundfos 96293304 - BM hp 77-3-R NBR | Submersible | Booster | High Pressure

Save $36,146.40
GRUNDFOSSKU: 96293304

Price:
Sale price$54,219.60 Regular price$90,366.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 96293304 - BM hp 77-3-R NBR Submersible High Pressure Booster Module

The Grundfos BM hp 77-3-R NBR is a high-performance submersible booster module designed for efficient liquid circulation and pressure boosting in systems operating under high static pressure. This robust unit is primarily utilized in BMEX systems, ensuring reliable operation and optimal performance.

Featuring a stainless steel sleeve and a completely sealed construction, the BM hp 77-3-R guarantees durability and longevity, making it an ideal choice for various applications requiring consistent high pressure. Its advanced design allows for seamless integration into existing systems, providing a dependable solution for your pumping needs.

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you're having trouble locating the right item, our knowledgeable team is here to help!

Upgrade your pumping system with the Grundfos BM hp 77-3-R NBR and experience the difference in performance and reliability.

EAN 5700831410140
Code for rubber NBR
Connection straight
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP66
Gross weight 534.0 lb
Impeller Stainless steel
Mains frequency 60 Hz
Material Pricing Group 37
Maximum liquid temperature 104 °F
Maximum operating pressure 82.7 bar
Maximum outlet pressure 82 bar
Maximum permissible inlet pressure 82 bar
Minimum efficiency index, MEI ≥ -.--
Model A
Motor Stainless steel
Net weight 354.0 lb
Pipe connection straight
Pipe connection standard PJE
Product family BM hp 77
Pump Stainless steel
Pumped liquid Water
Rated current 33.5-32.5 A
Rated flow 405 US gpm
Rated head 167.3 ft
Rated power - P2 18.5 kW
Rated speed 3450-3470-3480 rpm
Rated voltage 3 x 440-480 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber NBR
Selected liquid temperature 68 °F
Service factor 1.15
Stages 3
Standard PJE

Motor Curves

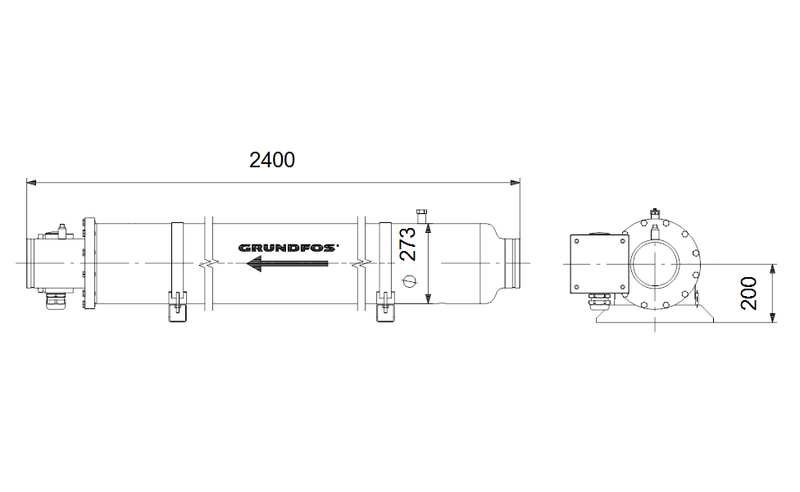

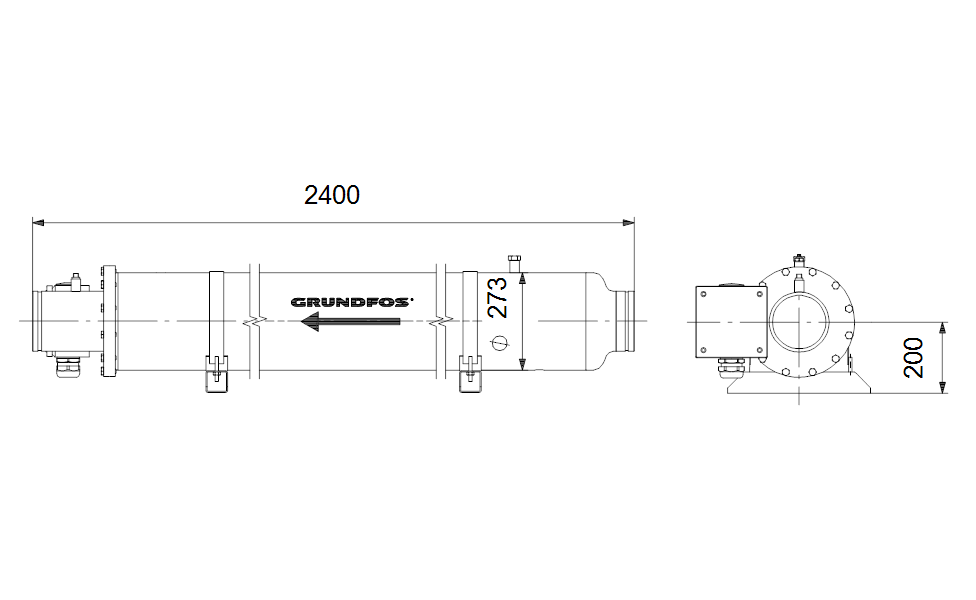

Dimensional Drawing
