Grundfos 95908992 - BM hp 46-3-R NBR | Submersible | Booster | High Pressure

Save $21,808.80
GRUNDFOSSKU: 95908992

Price:
Sale price$32,713.20 Regular price$54,522.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

BM hp 46-3-R NBR | High pressure booster modules are used for boosting and liquid circulation in systems under a high static pressure. BMhp is mainly used in BMEX systems. SP submersible pump with motor built into a stainless steel sleeve in a totally sealed construction.

EAN 5700838248005
Code for rubber NBR
Connection straight
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP66
Gross weight 310.0 lb
Impeller Stainless steel
Mains frequency 60 Hz
Material Pricing Group 37
Maximum liquid temperature 104 °F
Maximum operating pressure 82.7 bar
Maximum outlet pressure 82 bar
Maximum permissible inlet pressure 82 bar
Minimum efficiency index, MEI ≥ 0.4
Model E
Motor Stainless steel
Net weight 145.0 lb
Pipe connection straight
Pipe connection standard PJE
Product family BM hp 46
Pump Stainless steel
Pumped liquid Water
Rated current 17.4-17 A
Rated flow 242 US gpm
Rated head 118.1 ft
Rated power - P2 7.5 kW
Rated speed 2840-2860-2870 rpm
Rated voltage 3 x 440-480 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber NBR
Selected liquid temperature 68 °F
Service factor 1.15
Stages 3
Standard PJE

Motor Curves

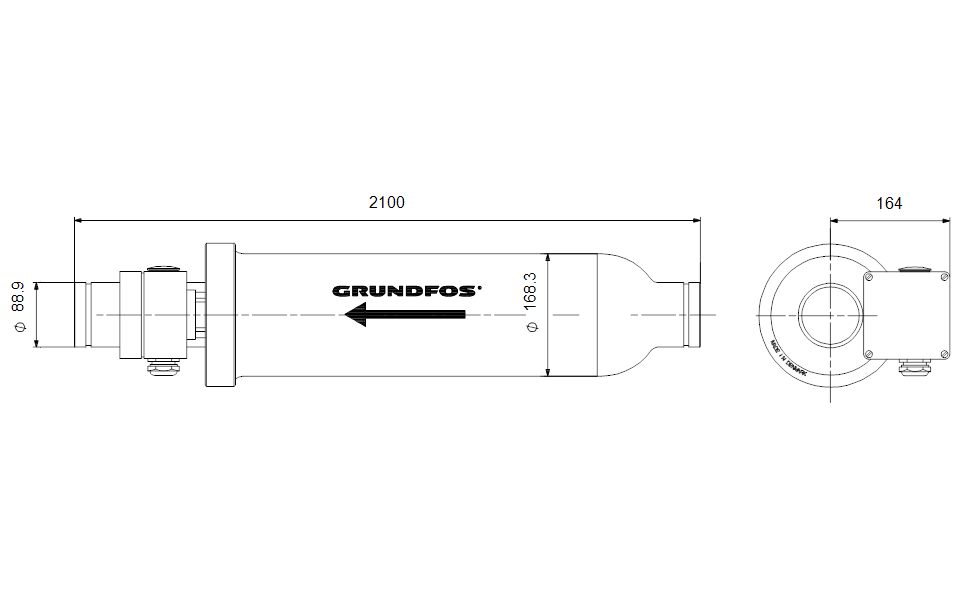

Dimensional Drawing
