Grundfos 95908998 - BM hp 125-2-AA-R NBR | Booster Module | Multistage | Inline

Save $38,858.80
GRUNDFOSSKU: 95908998

Price:
Sale price$58,288.20 Regular price$97,147.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

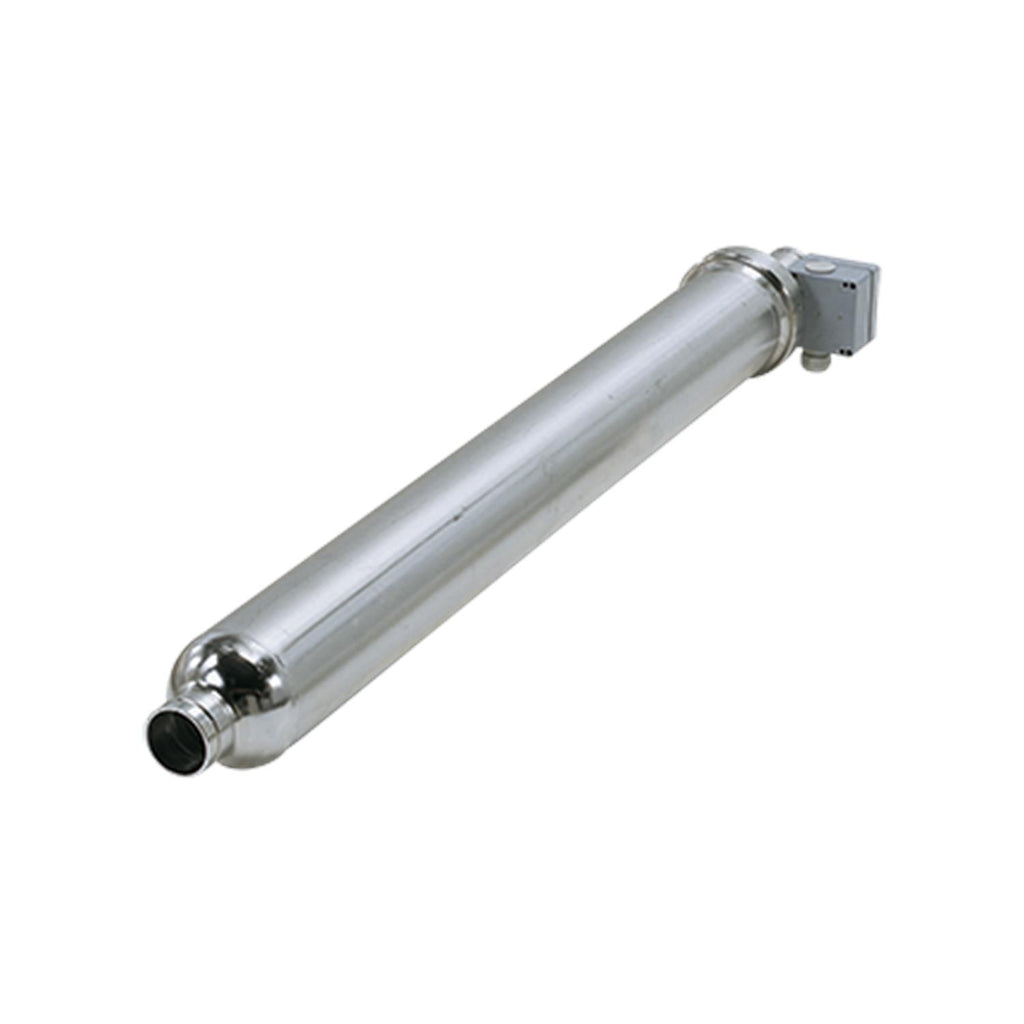

Grundfos 95908998 - BM hp 125-2-AA-R NBR Booster Module

The Grundfos 95908998 - BM hp 125-2-AA-R NBR is a high-performance booster module designed for various industrial applications. Manufactured by the renowned brand Grundfos, this multistage inline pump is engineered to deliver reliable and efficient performance, making it an ideal choice for boosting water pressure in a range of settings.

With its robust construction and advanced design, the BM hp 125-2-AA-R NBR ensures optimal functionality and longevity. This booster module is perfect for those seeking a dependable solution for their pumping needs.

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you're having trouble locating the right item, our team is here to help!

EAN 5700838268331
Code for rubber NBR
Connection straight
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP66
Gross weight 536.0 lb
Impeller Stainless steel
Impellers AA
Mains frequency 60 Hz
Material Pricing Group 37
Maximum liquid temperature 104 °F
Maximum operating pressure 82.7 bar
Maximum outlet pressure 82 bar
Maximum permissible inlet pressure 82 bar
Minimum efficiency index, MEI ≥ -.--
Model A
Motor Stainless steel
Net weight 356.0 lb
Number of reduced-diameter impellers AA
Pipe connection straight
Pipe connection standard PJE
Product family BM hp 125
Pump Stainless steel
Pumped liquid Water
Rated current 48-46.5 A
Rated flow 656 US gpm
Rated head 121.4 ft
Rated power - P2 22 kW
Rated speed 3450-3460-3480 rpm
Rated voltage 3 x 440-480 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber NBR
Selected liquid temperature 68 °F
Service factor 1
Stages 2
Standard PJE

Motor Curves

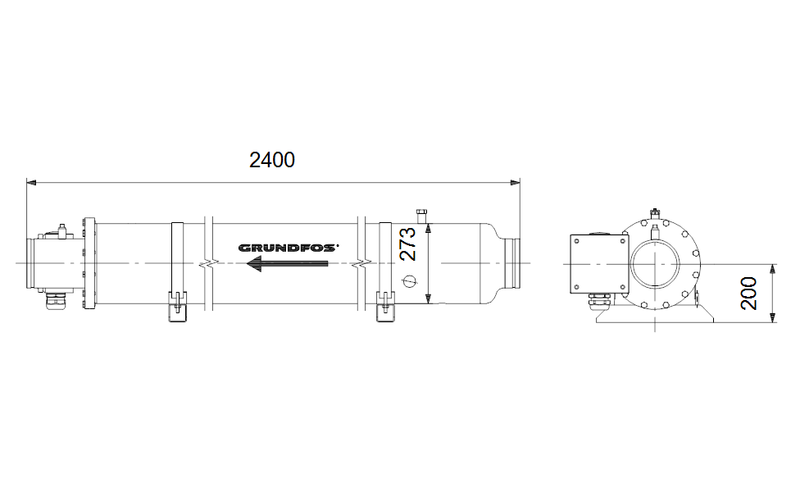

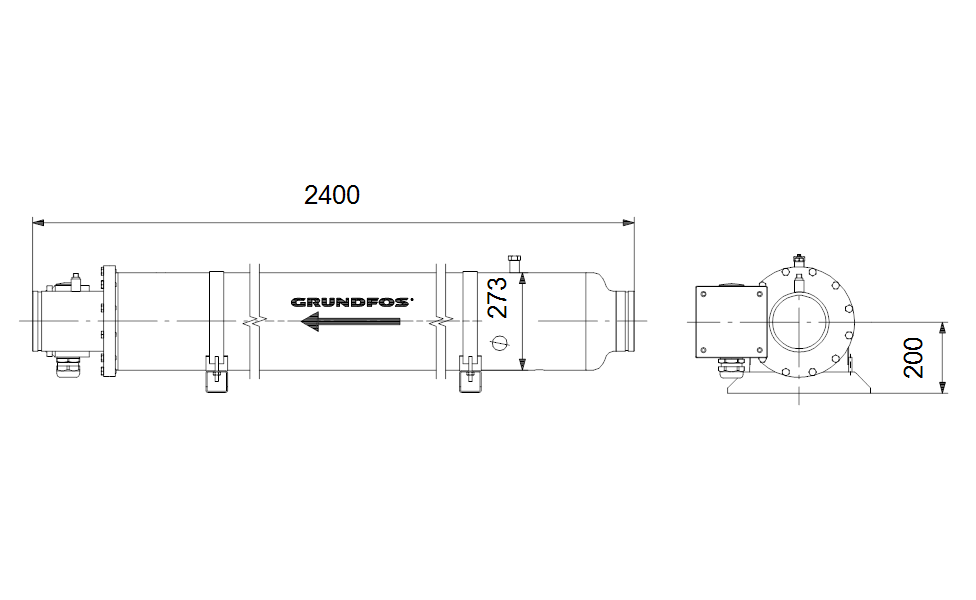

Dimensional Drawing
