Image shown may not be actual product
![Grundfos 14C71915 - BM 60-15R NBR]()
![Grundfos 14C71915 - BM 60-15R NBR]()
![Grundfos 14C71915 - BM 60-15R NBR]()
![Grundfos 14C71915 - BM 60-15R NBR]()
Description

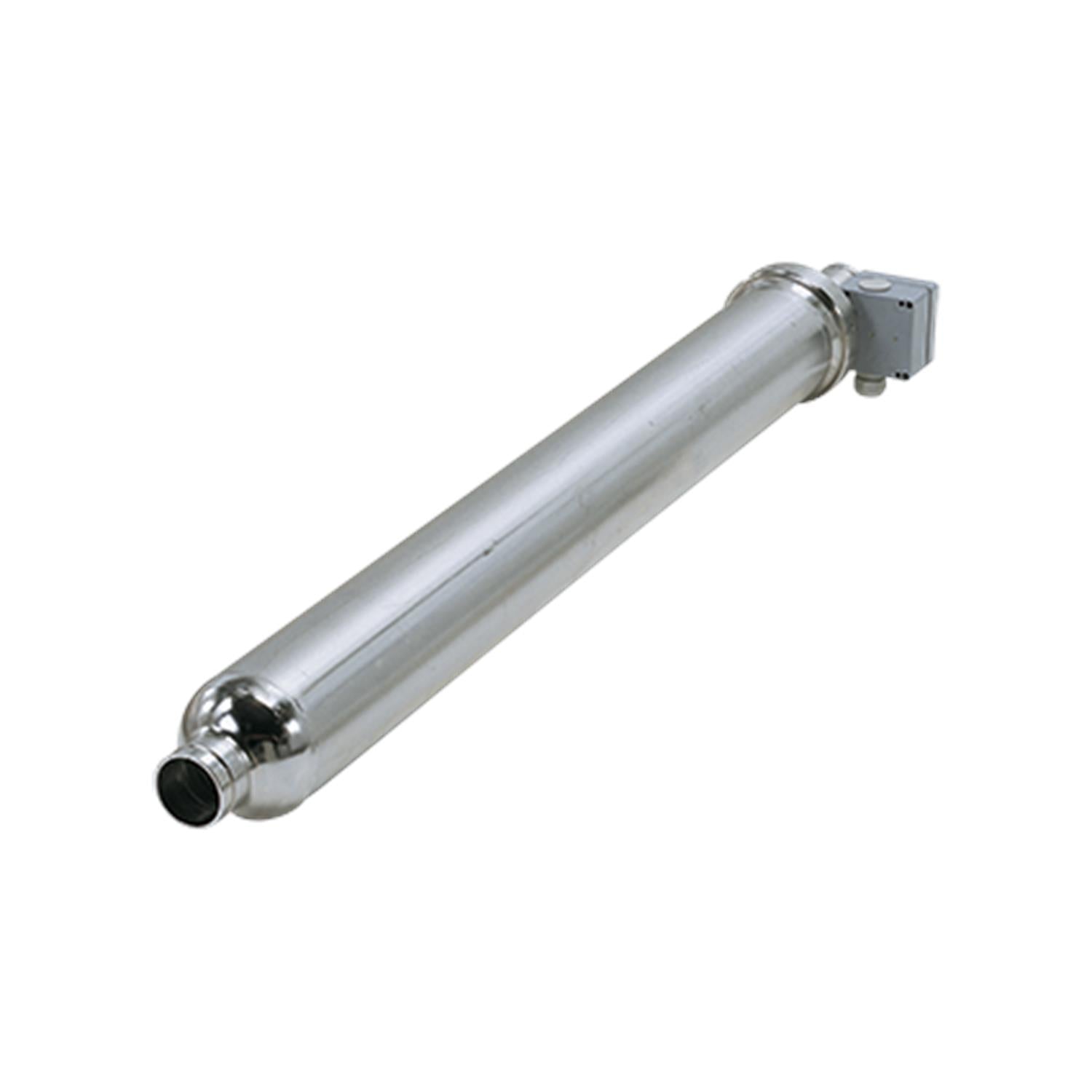

Grundfos 14C71915 - BM 60-15R NBR This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.
EAN
5700393963146
Applications
Pressure boosting, Groundwater supply, Industrial applications
Material Pricing Group
37
Maximum liquid temperature
104 °F
Code for rubber
NBR
Density
62.29 lb/ft³
Maximum operating pressure
82.7 bar
Power factor 1
0.87-0.85-0.82
Selected liquid temperature
68 °F
Rated voltage
3 x 380-400-415 V
Thermal protec
external
Pumped liquid
Water
Starting current
480-530-560 %
Mains frequency
50 Hz
Net weight
359.0 lb
Start. method
direct-on-line
Gross weight
505.0 lb
Rated power - P2
26 kW
Maximum outlet pressure
82 bar
Enclosure class (IEC 34-5)
IP66
Rated current
58.0-55.5-55.0 A
Pipe connection
straight
Minimum efficiency index, MEI ≥
0.4
Pipe connection standard
PJE
Built-in temp. transmitter
yes
Stages
15
Rated flow
264 US gpm
Model
E
Motor
Stainless steel
Rubber
NBR
Rated head
390.4 ft
Curve tolerance
ISO9906:2012 3B
Connection
straight
Impeller
Stainless steel
Pump
Stainless steel
Maximum permissible inlet pressure
60 bar
Standard
PJE
Motor Curves
Dimensional Drawing
