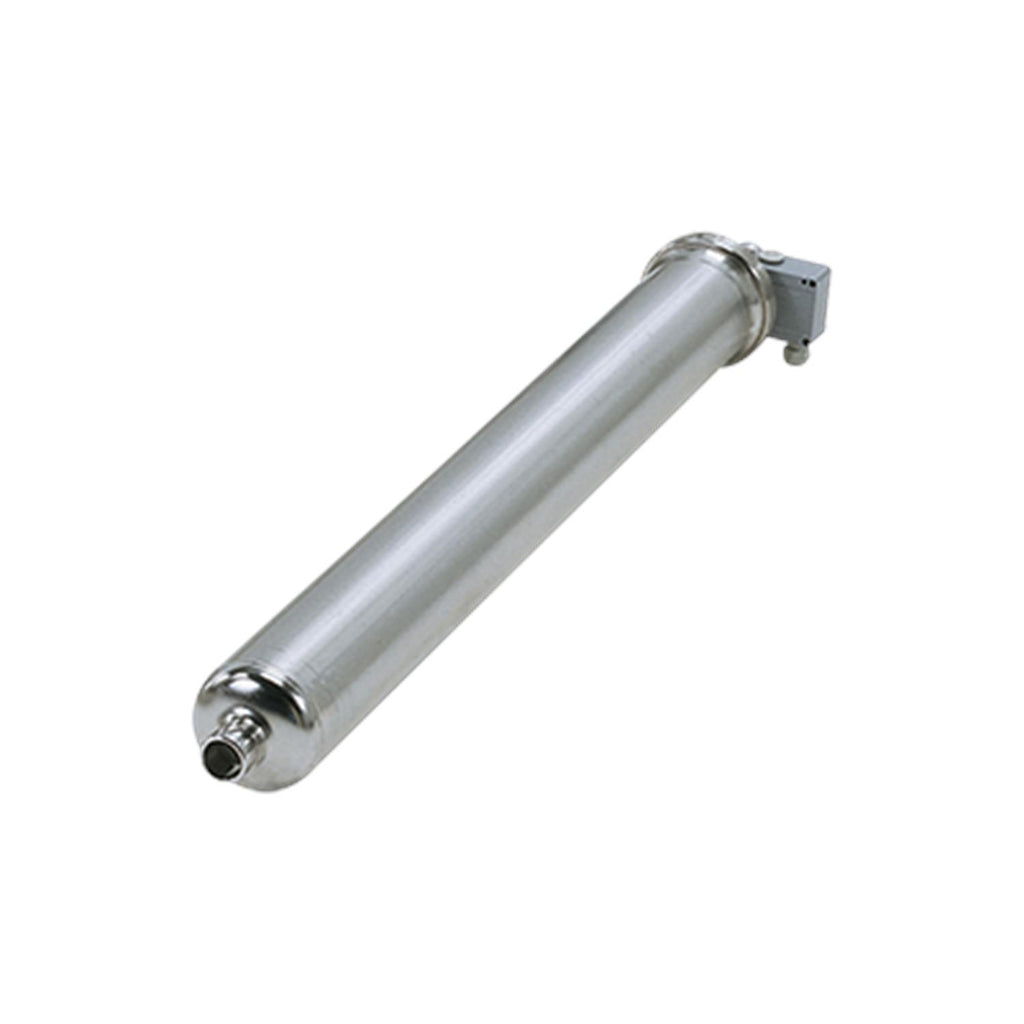

Grundfos 10761906 - BM 3A-6NE E/FKM | Booster Module | Multistage | Inline

Save $3,824.80
GRUNDFOSSKU: 10761906

Price:
Sale price$5,737.20 Regular price$9,562.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos BM 3A-6NE E/FKM is a multistage inline booster module designed for industrial booster and high-pressure systems, suited for contractors and plant maintenance teams.

Key features

  • Multistage inline booster module for increased pressure delivery
  • Designed for booster and high-pressure applications, compatible with Grundfos controls and accessories
  • Modular design for straightforward integration and maintenance

Applications

Commonly used for pressure boosting in industrial process systems, closed-loop circulation, and building services requiring reliable high-pressure delivery.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 10761906

EAN 5700392820044
Applications Pressure boosting, Groundwater supply, Industrial applications
Built-in temp. transmitter yes
Code for rubber E/FKM
Connection with bends
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP66
Gross weight 73.0 lb
Impeller Stainless steel
Mains frequency 50 Hz
Material Pricing Group 37
Maximum liquid temperature 104 °F
Maximum operating pressure 82.7 bar
Maximum outlet pressure 82 bar
Maximum permissible inlet pressure 50 bar
Minimum efficiency index, MEI ≥ 0.7
Model D
Motor Stainless steel
Net weight 6.62 lb
Pipe connection with bends
Pipe connection standard PJE
Power factor 1 0.86-0.84-0.82
Product family BM 4"
Pump Stainless steel
Pumped liquid Water
Rated current 2.08-2.00-2.00 A
Rated flow 13.2 US gpm
Rated head 88.59 ft
Rated power - P2 0.75 kW
Rated speed 2850-2870-2880 rpm
Rated voltage 3 x 380-400-415 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E/FKM
Selected liquid temperature 68 °F
Stages 6
Standard PJE
Start. method direct-on-line
Starting current 430-480-510 %
Thermal protec external

Motor Curves

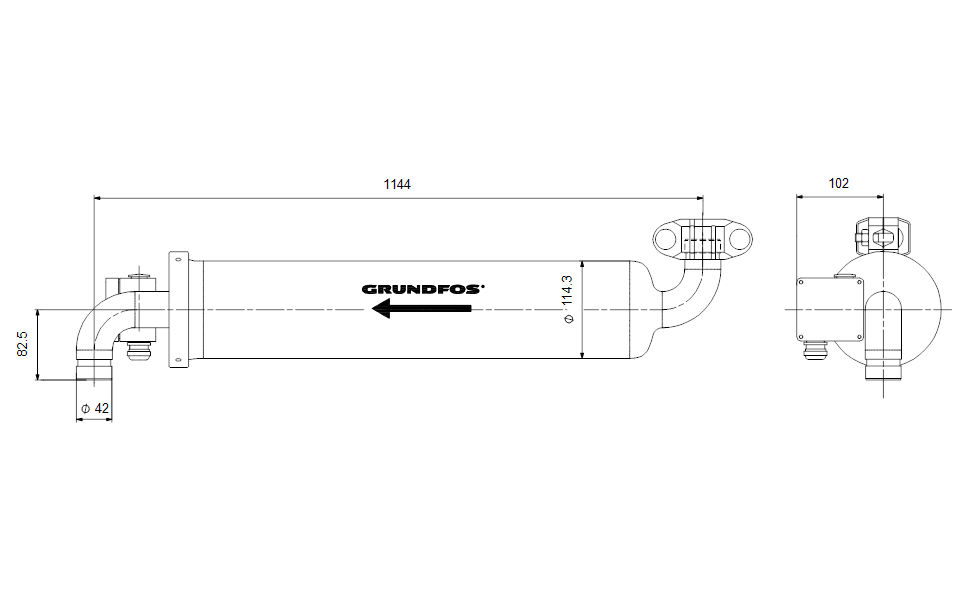

Dimensional Drawing
