Grundfos 98490821 - BM 17-8 NBR | Submersible | Booster | High Pressure

Save $10,504.00
GRUNDFOSSKU: 98490821

Price:
Sale price$15,756.00 Regular price$26,260.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

BM 17-8 NBR High pressure booster modules are usedfor boosting, liquid transfer and cir-culation in systems under a high staticpressure. SP submersible pump with motor builtinto a stainless steel sleeve in atotally sealed construction. Modules of different sizes can be com-bined and connected either in series orin parallel to meet exact Q/H require-ments.

EAN 5711496030451
Applications Pressure boosting, Groundwater supply, Industrial applications
Built-in temp. transmitter yes
Code for rubber NBR
Connection straight
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP66
Gross weight 247.0 lb
Impeller Stainless steel
Mains frequency 60 Hz
Material Pricing Group 37
Maximum current consumption 17.4 A
Maximum liquid temperature 104 °F
Maximum operating pressure 82.7 bar
Maximum outlet pressure 82 bar
Maximum permissible inlet pressure 50 bar
Minimum efficiency index, MEI ≥ 0.7
Model E
Motor Stainless steel
Net weight 174.0 lb
Pipe connection straight
Pipe connection standard PJE
Power factor 1 0.84-0.83-0.80
Product family BM 6"
Pump Stainless steel
Pumped liquid Water
Rated current 17.4-16.8-16.6 A
Rated flow 88.1 US gpm
Rated head 305.1 ft
Rated power - P2 7.5 kW
Rated voltage 3 x 440-460-480 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber NBR
Selected liquid temperature 68 °F
Service factor 1.15
Stages 8
Standard PJE
Start. method direct-on-line
Starting current 410-440-470 %
Thermal protec external

Motor Curves

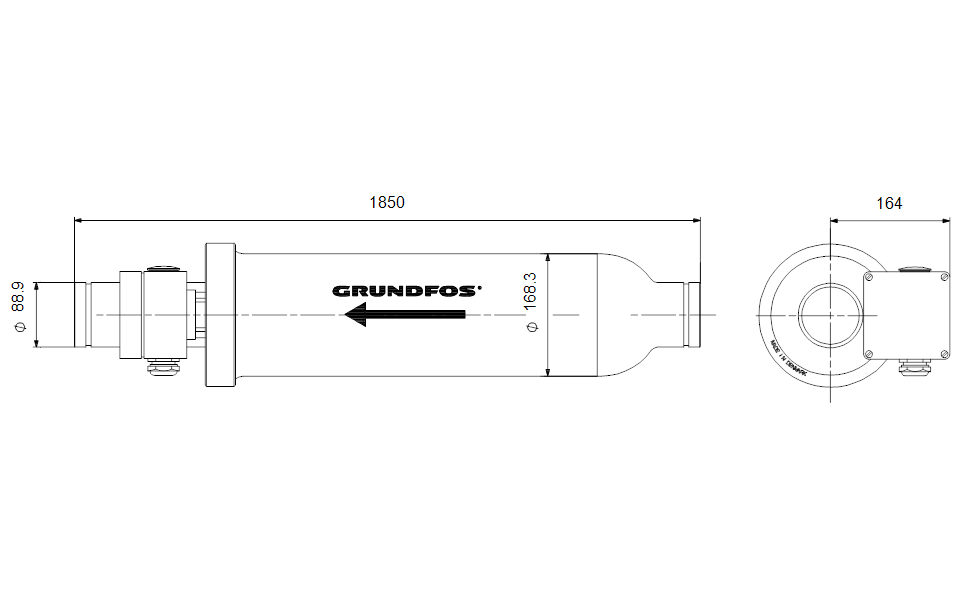

Dimensional Drawing
