Grundfos 98490823 - BM 17-12 NBR | Booster Module | Multistage | Inline

Save $11,923.20
GRUNDFOSSKU: 98490823

Price:
Sale price$17,884.80 Regular price$29,808.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

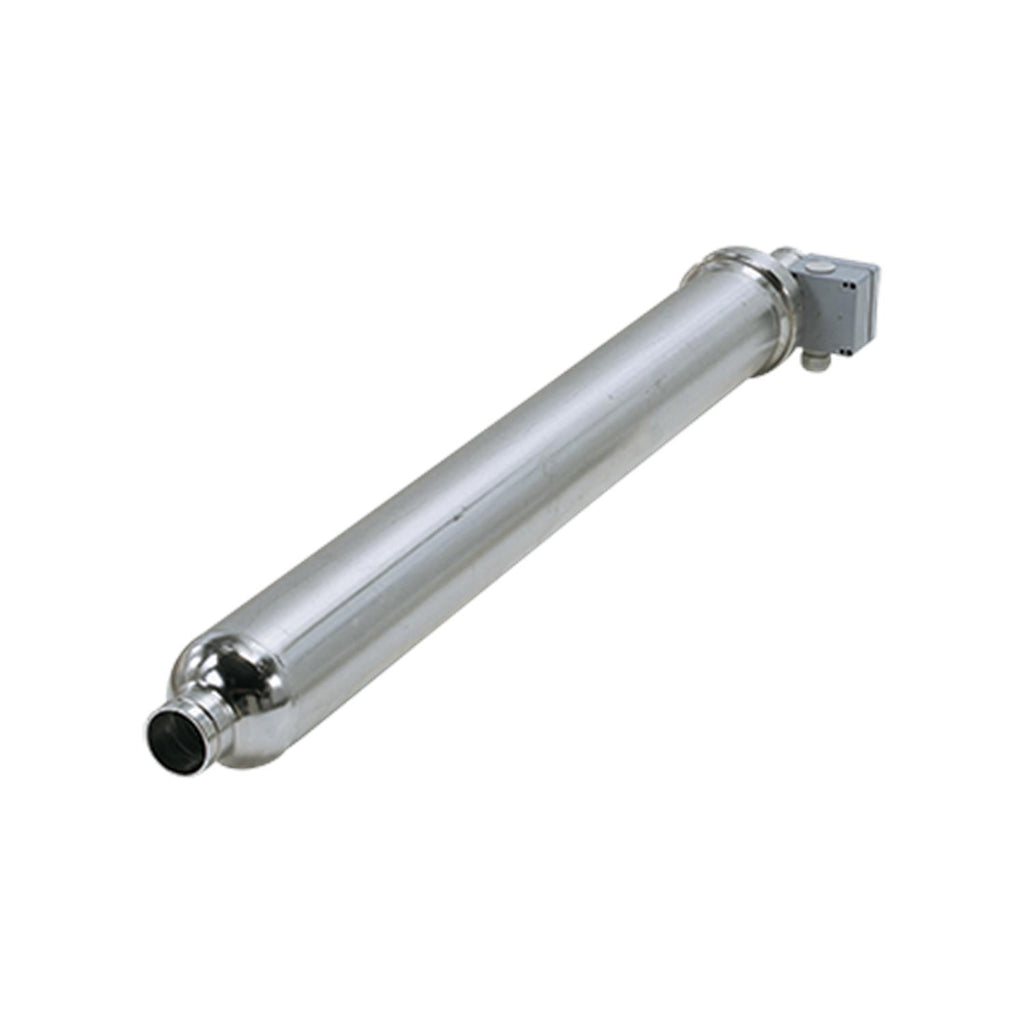

Grundfos 98490823 - BM 17-12 NBR Booster Module

The Grundfos 98490823 - BM 17-12 NBR is a high-performance booster module designed for various industrial applications. Manufactured by the renowned brand Grundfos, this multistage inline pump is engineered to deliver reliable and efficient performance, making it an ideal choice for boosting water pressure in a range of settings.

With its robust construction and advanced design, the BM 17-12 NBR ensures optimal functionality and longevity. This booster module is part of the Grundfos centrifugal pump family, which includes both single and multi-stage options, catering to diverse pumping needs.

At Pump-Stop.com, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, feel free to reach out to our knowledgeable team at (781) 281-8905.

Before making a purchase, we recommend checking your current pump for the exact part number or SKU that matches the 98490823. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5711496030475
Applications Pressure boosting, Groundwater supply, Industrial applications
Built-in temp. transmitter yes
Code for rubber NBR
Connection straight
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP66
Gross weight 303.0 lb
Impeller Stainless steel
Mains frequency 60 Hz
Material Pricing Group 37
Maximum current consumption 25 A
Maximum liquid temperature 104 °F
Maximum operating pressure 82.7 bar
Maximum outlet pressure 82 bar
Maximum permissible inlet pressure 50 bar
Minimum efficiency index, MEI ≥ 0.7
Model E
Motor Stainless steel
Net weight 214.0 lb
Pipe connection straight
Pipe connection standard PJE
Power factor 1 0.84-0.83-0.80
Product family BM 6"
Pump Stainless steel
Pumped liquid Water
Rated current 25.0-24.4-24.0 A
Rated flow 88.1 US gpm
Rated head 459.3 ft
Rated power - P2 11 kW
Rated voltage 3 x 440-460-480 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber NBR
Selected liquid temperature 68 °F
Service factor 1.15
Stages 12
Standard PJE
Start. method direct-on-line
Starting current 420-460-490 %
Thermal protec external

Motor Curves

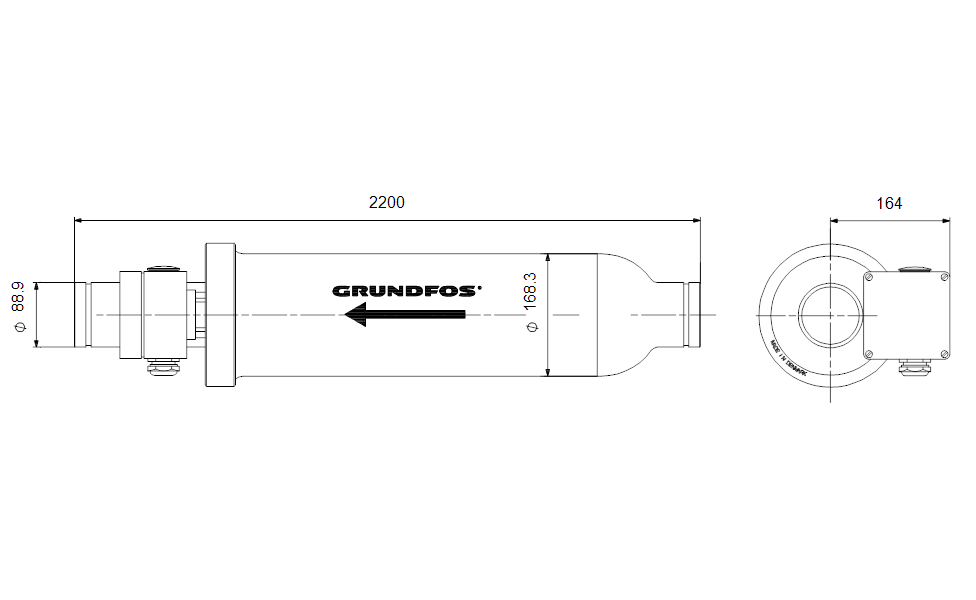

Dimensional Drawing
