Baldor ZDVSM44304T-4 - 300 HP, 1790-2685RPM, 3 Phase, 60-90HZ, 449T, A441 90HZ Three Phase 300 HP

Save $16,000.75
BaldorSKU: ZDVSM44304T-4

Price:
Sale price$48,002.25 Regular price$64,003.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

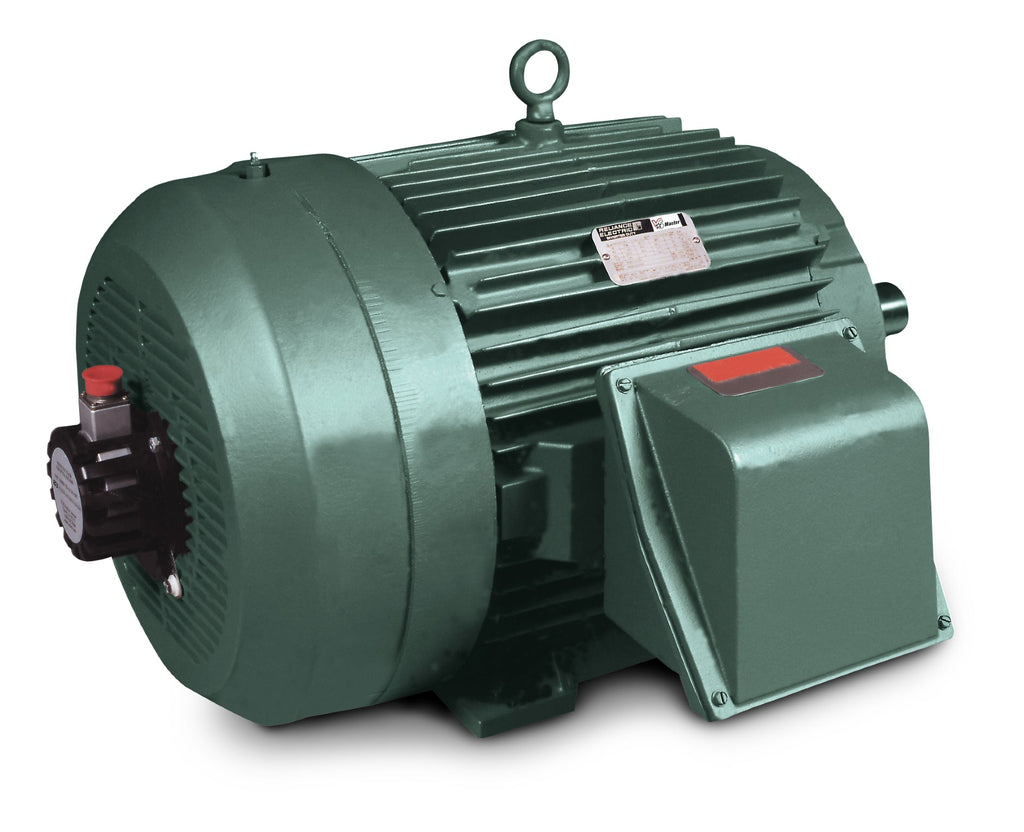

Baldor-Reliance AC VS Master Motor - 300 HP

Introducing the Baldor ZDVSM44304T-4, a high-performance AC VS Master Motor designed for demanding applications. With a robust power output of 300 HP and a versatile speed range of 1790-2685 RPM, this three-phase motor operates efficiently at 60-90 Hz. The motor features a 449T frame size and is built to deliver reliable performance in various industrial settings.

As a trusted vendor, Baldor ensures that this motor meets the highest standards of quality and durability, making it an ideal choice for your operational needs. Whether you are looking to replace an existing motor or upgrade your system, the Baldor ZDVSM44304T-4 is engineered to provide exceptional performance and longevity.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches to ensure compatibility. If you are having trouble locating the right item, our knowledgeable team is here to help!

Product Details:

  • Product Code: ZDVSM44304T-4
  • Type: AC VS Master Motor
  • Power: 300 HP
  • Speed Range: 1790-2685 RPM
  • Phase: 3 Phase
  • Frequency: 60-90 Hz
  • Frame Size: 449T

Choose the Baldor ZDVSM44304T-4 for reliable and efficient motor performance in your industrial applications.

UPC 781568469149
Supplier Part Number ZDVSM44304T-4
Category AC Motors
Subcategory AC VS Master Motors
Agency Approvals CURUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 2817.0
Auxillary Box No Auxillary Box
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Catalog Number ZDVSM44304T-4
Constant Torque Speed Range 1000:1
Current @ Voltage 322.000 A @ 460.0 V, 338.000 A @ 460.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 96.2 %
Enclosure TEFC
Feedback Device ENCODER
Frame 449T
Frame Material Cast Iron
Frequency 60.00 Hz, 90.00 Hz
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 322.0 a
Insulation Class F
Inverter Code Inverter Duty
KVA Code M
Lifting Lugs Standard Lifting Lugs
Max Speed 3600 rpm
Motor Lead Quantity/Wire Size 12 @ 1 AWG
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type A44160M
Mounting Arrangement F1
Number of Poles 4
Output 300.000 hp @ 60 Hz, 300.000 hp @ 90 Hz
Output @ Frequency 300.000 HP @ 90 HZ, 300.000 HP @ 60 HZ
Overall Length 56.66 IN
Phase 3
Power Factor 86
Pulley End Bearing Type Ball
Pulley Face Code Standard
Service Factor 1
Shaft Diameter 3.375 IN
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1790 rpm, 2685 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,000 rpm
Synchronous Speed @ Frequency 3000 RPM @ 90 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Voltage 460 V @ 60 Hz, 460 V @ 90 Hz
Voltage @ Frequency 460.0 V @ 60 HZ, 460.0 V @ 90 HZ
