Baldor ZDVSM4408T-4 - 250 HP, 1790-2685RPM, 3 Phase, 60-90HZ, 449T, A441 90HZ Three Phase 250 HP

Save $16,000.75
BaldorSKU: ZDVSM4408T-4

Price:
Sale price$48,002.25 Regular price$64,003.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

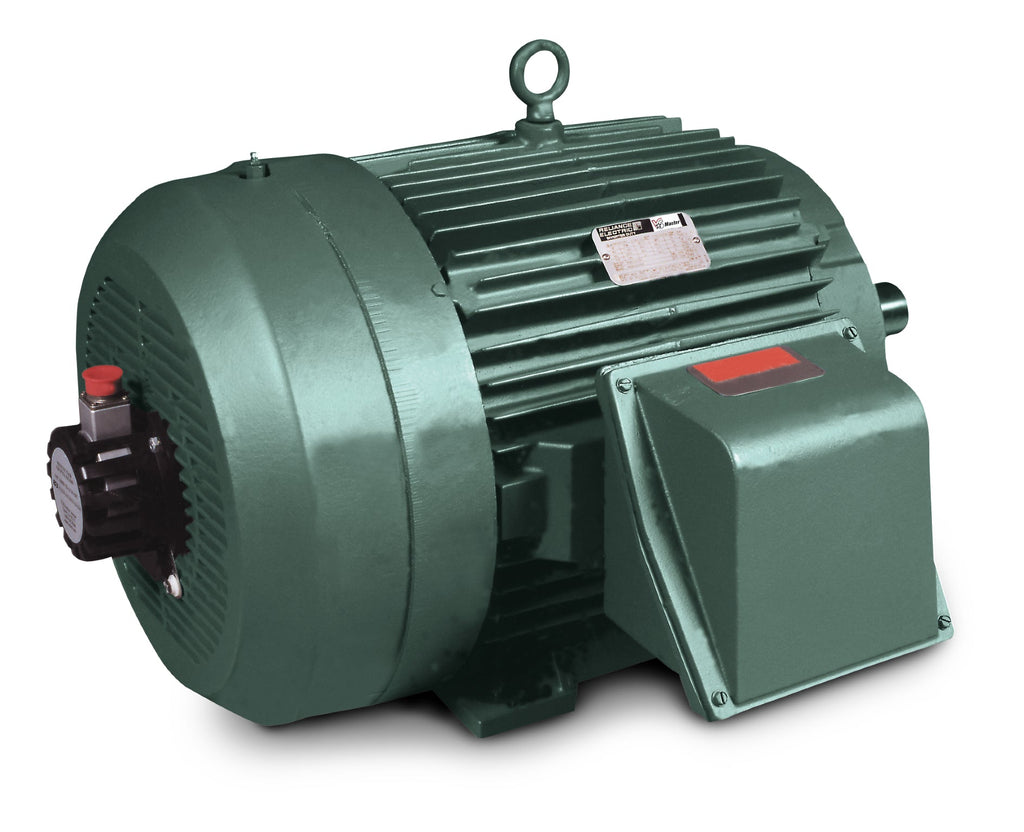

Baldor-Reliance AC VS Master Motor - Model ZDVSM4408T-4

Experience superior performance with the Baldor-Reliance AC VS Master Motor, designed for high efficiency and reliability. This powerful motor boasts a robust 250 HP output, operating at variable speeds ranging from 1790 to 2685 RPM. It is engineered for three-phase applications and supports a frequency range of 60 to 90 Hz, making it versatile for various industrial uses.

Key Features:

  • Power: 250 HP
  • Speed Range: 1790-2685 RPM
  • Phase: 3 Phase
  • Frequency: 60-90 Hz
  • Frame Size: 449T
  • Product Code: ZDVSM4408T-4

This motor is ideal for applications requiring precise speed control and high torque, ensuring optimal performance in demanding environments. At Pump-Stop, we are your preferred source for replacement pumps and parts, providing you with the best solutions for your needs.

If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches to ensure compatibility. Don’t hesitate to reach out if you need help locating the right item!

UPC 781568469118
Supplier Part Number ZDVSM4408T-4
Category AC Motors
Subcategory AC VS Master Motors
Agency Approvals CURUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 2768.999
Auxillary Box No Auxillary Box
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Catalog Number ZDVSM4408T-4
Constant Torque Speed Range 1000:1
Current @ Voltage 272.000 A @ 460.0 V, 277.000 A @ 460.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 95.8 %
Enclosure TEFC
Feedback Device ENCODER
Frame 449T
Frame Material Cast Iron
Frequency 60.00 Hz, 90.00 Hz
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 272.0 a
Insulation Class F
Inverter Code Inverter Duty
KVA Code L
Lifting Lugs Standard Lifting Lugs
Max Speed 3600 rpm
Motor Lead Quantity/Wire Size 6 @ 2/0 AWG
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type A44128M
Mounting Arrangement F1
Number of Poles 4
Output 250.000 hp @ 60 Hz, 250.000 hp @ 90 Hz
Output @ Frequency 250.000 HP @ 90 HZ, 250.000 HP @ 60 HZ
Overall Length 56.66 IN
Phase 3
Power Factor 87
Pulley End Bearing Type Ball
Pulley Face Code Standard
Service Factor 1
Shaft Diameter 3.375 IN
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1790 rpm, 2685 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,000 rpm
Synchronous Speed @ Frequency 3000 RPM @ 90 HZ
Thermal Device - Bearing None
Thermal Device - Winding Normally Closed Thermostat
Voltage 460 V @ 60 Hz, 460 V @ 90 Hz
Voltage @ Frequency 460.0 V @ 60 HZ, 460.0 V @ 90 HZ
