Baldor ZDVSM4400T-4 - 100 HP, 1785-2680RPM, 3 Phase, 60-90HZ, 405T, A400 90HZ Three Phase 100 HP

Save $6,869.00
BaldorSKU: ZDVSM4400T-4

Price:
Sale price$20,607.00 Regular price$27,476.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

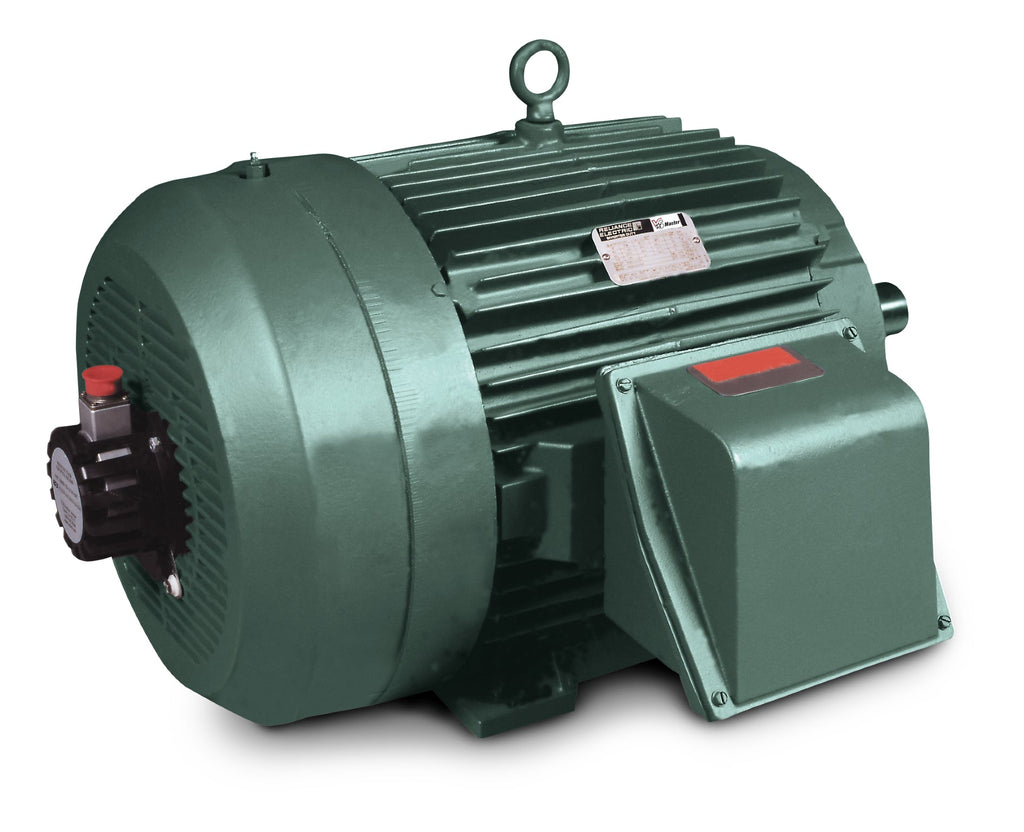

Baldor-Reliance AC VS Master Motor - Model ZDVSM4400T-4

Upgrade your industrial applications with the Baldor ZDVSM4400T-4, a high-performance AC VS Master Motor designed for efficiency and reliability. This robust motor delivers 100 HP power and operates at variable speeds ranging from 1785 to 2680 RPM. With a three-phase design and compatibility with 60-90Hz frequency, it is ideal for a variety of demanding environments.

Key specifications include:

  • Power: 100 HP
  • Speed Range: 1785-2680 RPM
  • Phase: 3 Phase
  • Frequency: 60-90 Hz
  • Frame Size: 405T
  • Product Code: ZDVSM4400T-4

As the preferred source for replacement pumps and parts, Pump-Stop.com is here to assist you in finding the right motor for your needs. If you have questions or need help identifying the correct part, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. Don’t hesitate to reach out if you need assistance!

UPC 781568469071
Supplier Part Number ZDVSM4400T-4
Category AC Motors
Subcategory AC VS Master Motors
Agency Approvals CURUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 1297.0
Auxillary Box No Auxillary Box
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Catalog Number ZDVSM4400T-4
Constant Torque Speed Range 1000:1
Current @ Voltage 112.000 A @ 460.0 V, 115.000 A @ 460.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 94.1 %
Enclosure TEFC
Feedback Device ENCODER
Frame 405T
Frame Material Cast Iron
Frequency 60.00 Hz, 90.00 Hz
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 112.0 a
Insulation Class F
Inverter Code Inverter Duty
KVA Code L
Lifting Lugs Standard Lifting Lugs
Max Speed 3600 rpm
Motor Lead Quantity/Wire Size 3 @ 1 AWG
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type A40064M
Mounting Arrangement F1
Number of Poles 4
Output 100.000 hp @ 60 Hz, 100.000 hp @ 90 Hz
Output @ Frequency 100.000 HP @ 90 HZ, 100.000 HP @ 60 HZ
Overall Length 42.40 IN
Phase 3
Power Factor 86
Pulley End Bearing Type Ball
Pulley Face Code Standard
Service Factor 1
Shaft Diameter 2.875 IN
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1785 rpm, 2680 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,000 rpm
Synchronous Speed @ Frequency 3000 RPM @ 90 HZ
Thermal Device - Bearing None
Thermal Device - Winding Normally Closed Thermostat
Voltage 460 V @ 60 Hz, 460 V @ 90 Hz
Voltage @ Frequency 460.0 V @ 60 HZ, 460.0 V @ 90 HZ
