Baldor ZDVSM4316T - 75 HP, 1800RPM, 3 Phase, 60HZ, 365T, TEFC, Foot, 60HZ Three Phase 75 HP

Save $5,473.75
BaldorSKU: ZDVSM4316T

Price:
Sale price$16,421.25 Regular price$21,895.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

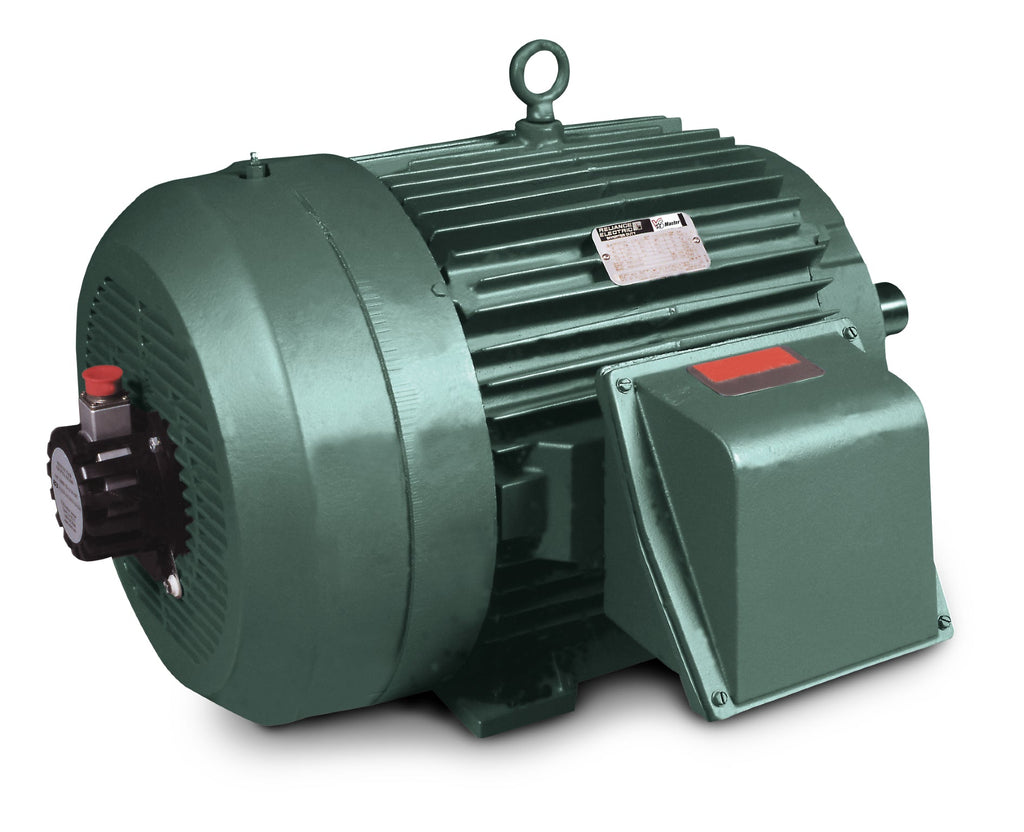

Baldor ZDVSM4316T - 75 HP AC VS Master Motor

Discover the power and reliability of the Baldor ZDVSM4316T, a high-performance 75 HP AC VS Master Motor designed for demanding industrial applications. Operating at 1800 RPM, this robust motor is engineered for three-phase power systems at 60Hz, making it an ideal choice for various machinery and equipment.

Key Features:

  • Power: 75 HP
  • Speed: 1800 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 365T
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Mounting: Foot-mounted

This Baldor-Reliance motor is built to withstand harsh environments while delivering exceptional performance and efficiency. Whether you are replacing an existing motor or upgrading your system, the ZDVSM4316T is a reliable choice that ensures optimal operation.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor ZDVSM4316T. Our team is here to help you find the perfect solution for your needs.

UPC 781568469064
Supplier Part Number ZDVSM4316T
Category AC Motors
Subcategory AC VS Master Motors
Agency Approvals CURUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 944.0
Auxillary Box No Auxillary Box
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Catalog Number ZDVSM4316T
Constant Torque Speed Range 1000:1
Current @ Voltage 89.200 A @ 460.0 V, 85.600 A @ 460.0 V, 178.000 A @ 230.0 V, 171.000 A @ 230.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Enclosure TEFC
Feedback Device TACHOMETER
Frame 365T
Frame Material Cast Iron
Frequency 60.00 Hz, 90.00 Hz
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 85.6 a
Insulation Class F
Inverter Code Inverter Duty
KVA Code J
Lifting Lugs No Lifting Lugs
Max Speed 3600 rpm
Motor Lead Quantity/Wire Size 3 @ 2 AWG
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type A36068M
Mounting Arrangement F1
Number of Poles 4
Output 75.000 hp @ 60 Hz, 75.000 hp @ 90 Hz
Output @ Frequency 75.000 HP @ 60 HZ, 75.000 HP @ 90 HZ
Overall Length 36.75 IN
Phase 3
Pulley End Bearing Type Ball
Pulley Face Code Standard
Service Factor 1
Shaft Diameter 2.374 IN
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1785 rpm, 2675 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding Normally Closed Thermostat
Voltage 230 V @ 60 Hz, 460 V @ 60 Hz, 230 V @ 90 Hz, 460 V @ 90 Hz
Voltage @ Frequency 460.0 V @ 60 HZ, 460.0 V @ 90 HZ, 230.0 V @ 90 HZ, 230.0 V @ 60 HZ
