Baldor ZDVSM4314T - 60 HP, 1800RPM, 3 Phase, 60HZ, 364T, TEFC, Foot, 60HZ Three Phase 60 HP

Save $4,511.75
BaldorSKU: ZDVSM4314T

Price:
Sale price$13,535.25 Regular price$18,047.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

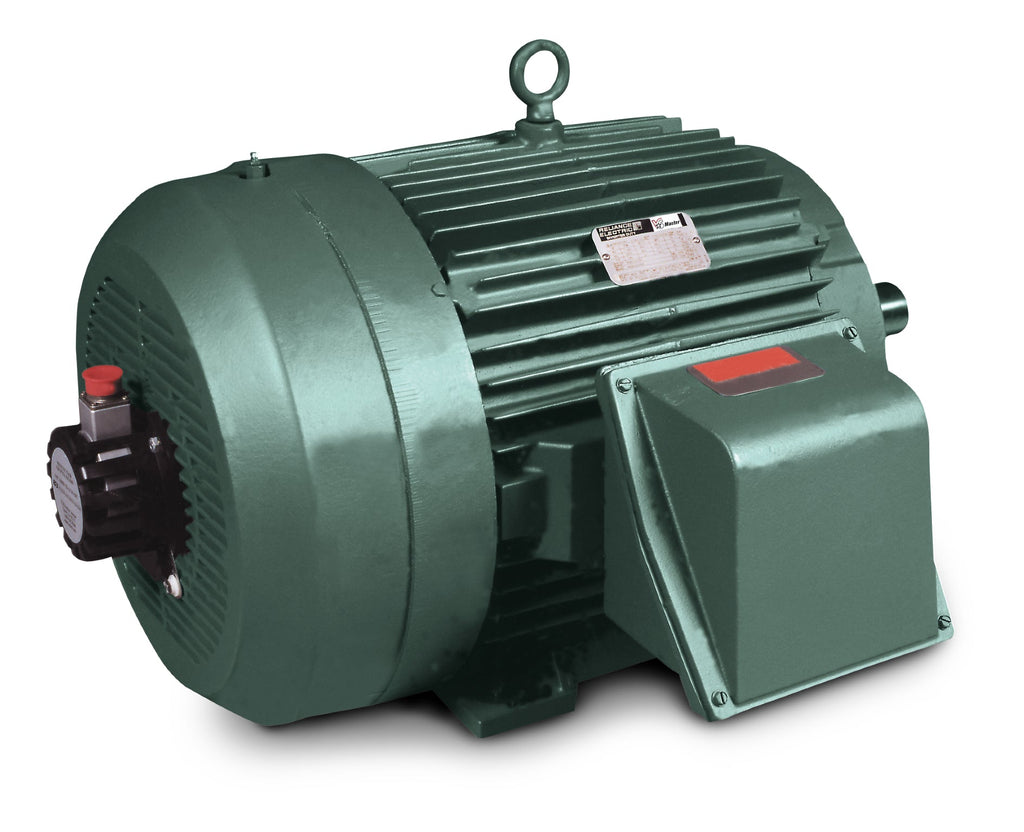

Baldor-Reliance AC VS Master Motor - Model ZDVSM4314T

Upgrade your industrial applications with the Baldor ZDVSM4314T, a high-performance AC VS Master Motor designed for reliability and efficiency. This robust motor features:

  • Power: 60 HP
  • Speed: 1800 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 364T
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Mounting Type: Foot-mounted

This motor is ideal for a variety of applications, providing exceptional performance and durability. As a trusted vendor, Baldor ensures that you receive a product that meets the highest standards in the industry.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor ZDVSM4314T to ensure compatibility. Don’t hesitate to reach out if you need help locating the right item!

UPC 781568469057
Supplier Part Number ZDVSM4314T
Category AC Motors
Subcategory AC VS Master Motors
Agency Approvals CURUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 907.0
Auxillary Box No Auxillary Box
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Catalog Number ZDVSM4314T
Constant Torque Speed Range 1000:1
Current @ Voltage 71.200 A @ 460.0 V, 69.100 A @ 460.0 V, 142.000 A @ 230.0 V, 138.000 A @ 230.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Enclosure TEFC
Feedback Device TACHOMETER
Frame 364T
Frame Material Cast Iron
Frequency 60.00 Hz, 90.00 Hz
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 69.1 a
Insulation Class F
Inverter Code Inverter Duty
KVA Code J
Lifting Lugs No Lifting Lugs
Max Speed 3600 rpm
Motor Lead Quantity/Wire Size 3 @ 4 AWG
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type A36062M
Mounting Arrangement F1
Number of Poles 4
Output 60.000 hp @ 60 Hz, 60.000 hp @ 90 Hz
Output @ Frequency 60.000 HP @ 60 HZ, 60.000 HP @ 90 HZ
Overall Length 36.75 IN
Phase 3
Pulley End Bearing Type Ball
Pulley Face Code Standard
Service Factor 1
Shaft Diameter 2.374 IN
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1785 rpm, 2675 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding Normally Closed Thermostat
Voltage 230 V @ 60 Hz, 460 V @ 60 Hz, 230 V @ 90 Hz, 460 V @ 90 Hz
Voltage @ Frequency 460.0 V @ 60 HZ, 460.0 V @ 90 HZ, 230.0 V @ 90 HZ, 230.0 V @ 60 HZ
