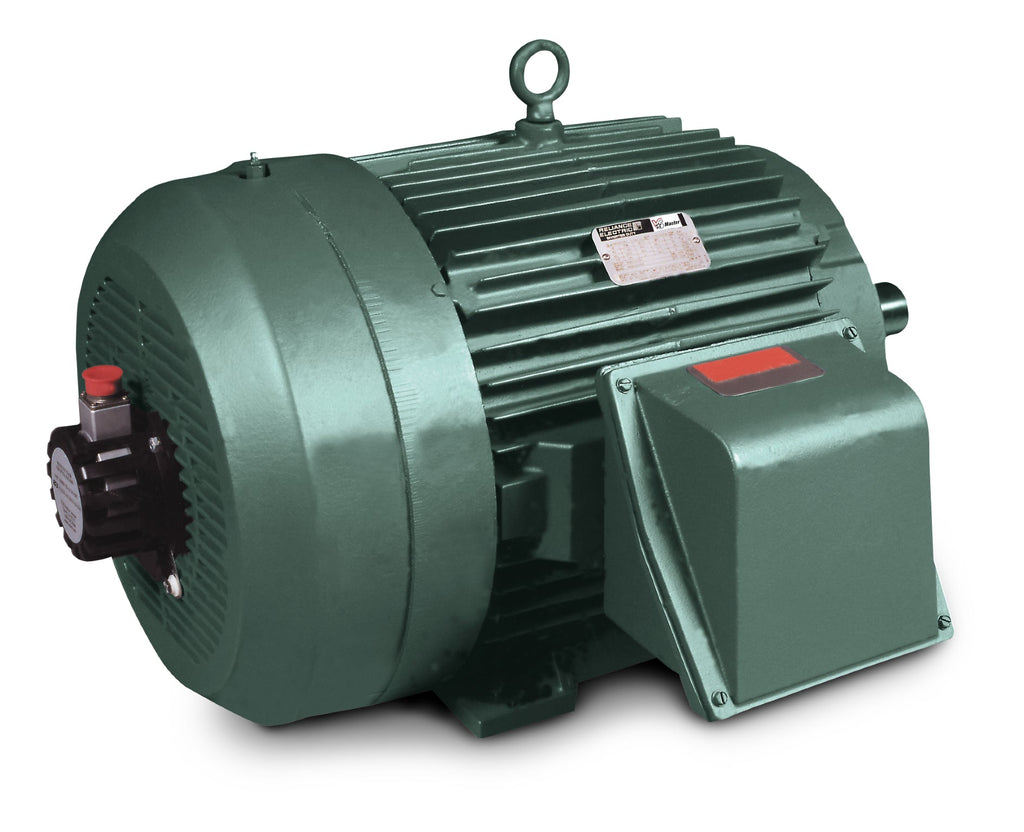

Baldor ZDVSM4115T - 50 HP, 1775RPM, 3 Phase, 60HZ, 326T, 1272M, TEFC, F1 60HZ Three Phase 50 HP 1272 M Cable

Save $3,777.50
BaldorSKU: ZDVSM4115T

Price:
Sale price$11,332.50 Regular price$15,110.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Baldor-Reliance AC VS Master Motors:

50HP, 1775RPM, 3PH, 60HZ, 326T, 1272M, TEFC, F1

Product Code: ZDVSM4115T

UPC 781568474068
Supplier Part Number ZDVSM4115T
Category AC Motors
Subcategory AC VS Master Motors
Product Family General Purpose
Agency Approvals UR, CSA
Ambient Temperature 40 °C
Approximate Weight (lbs) 721.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number ZDVSM4115T
Current @ Voltage 116.000 A @ 230.0 V, 58.000 A @ 460.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 94.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device ENCODER
Frame 326T
Frame Material Iron
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 58.0 a
Insulation Class F
Inverter Code Inverter Duty
KVA Code H
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Max Speed 2700 rpm
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 6 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 1272M
Mounting Arrangement F1
Number of Poles 4
Output 50.000 hp
Output @ Frequency 50.000 HP @ 60 HZ
Overall Length 33.14 IN
Phase 3
Power Factor 85
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS NON-COMPLIANT
Service Factor 1
Shaft Diameter 2.125 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1775 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding Normally Closed Thermostat
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
