Baldor ZDVSM4110T - 40 HP, 1775RPM, 3 Phase, 60HZ, 324T, 1254M, TEFC, F1 60HZ Three Phase 40 HP 1254 M Cable

Save $3,218.50
BaldorSKU: ZDVSM4110T

Price:
Sale price$9,655.50 Regular price$12,874.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

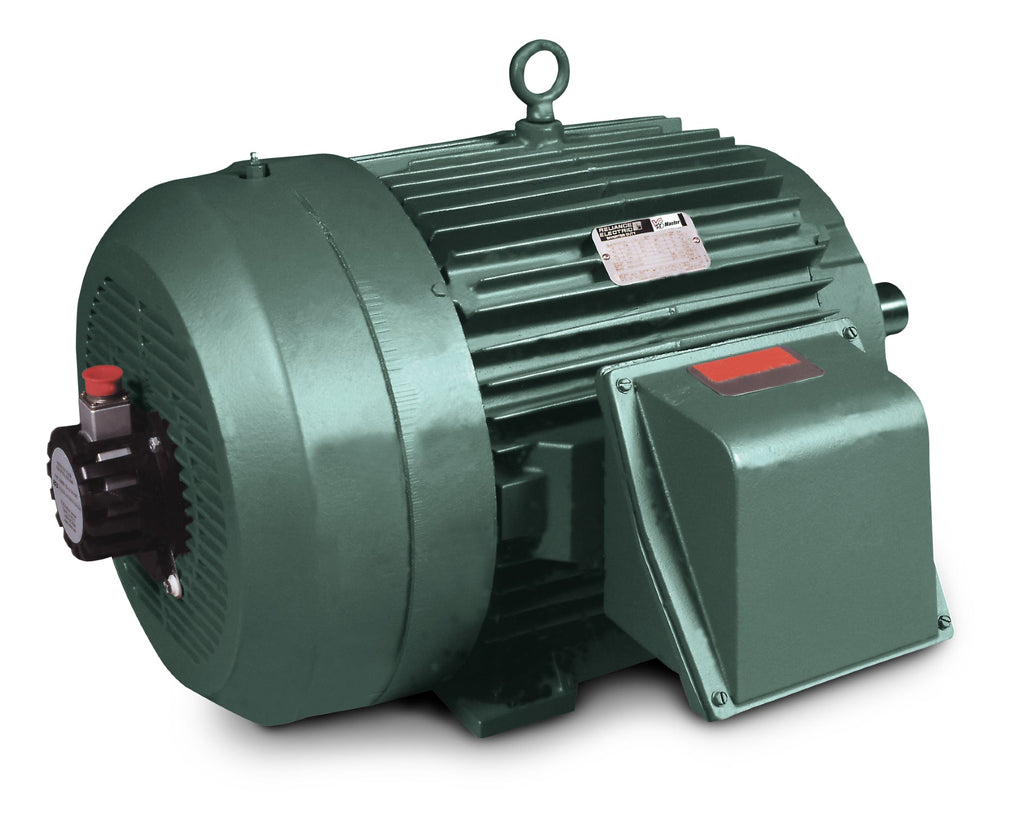

Baldor ZDVSM4110T - 40 HP AC VS Master Motor

Upgrade your industrial applications with the Baldor ZDVSM4110T, a high-performance 40 HP AC VS Master Motor designed for reliability and efficiency. Operating at 1775 RPM, this 3-phase motor is optimized for 60Hz power supply, making it an ideal choice for various heavy-duty applications.

Specifications:

  • Power: 40 HP
  • Speed: 1775 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 324T
  • Insulation Class: 1254M
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Product Code: ZDVSM4110T

This Baldor-Reliance motor is built to withstand demanding environments while providing consistent performance. Its TEFC design ensures protection against dust and moisture, making it suitable for a variety of industrial settings.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor ZDVSM4110T to ensure compatibility. Don’t hesitate to reach out if you need help locating the right item!

UPC 781568469033
Supplier Part Number ZDVSM4110T
Category AC Motors
Subcategory AC VS Master Motors
Product Family General Purpose
Agency Approvals CSA, UR
Ambient Temperature 40 °C
Approximate Weight (lbs) 715.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number ZDVSM4110T
Current @ Voltage 48.000 A @ 460.0 V, 96.000 A @ 230.0 V, 102.000 A @ 208.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 94.1 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device ENCODER
Frame 324T
Frame Material Cast Iron
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 48.0 a
Insulation Class F
Inverter Code Inverter Duty
KVA Code H
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Max Speed 2700 rpm
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 8 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 1254M
Mounting Arrangement F1
Number of Poles 4
Output 40.000 hp
Output @ Frequency 40.000 HP @ 60 HZ
Overall Length 33.14 IN
Phase 3
Power Factor 82
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS NON-COMPLIANT
Service Factor 1
Shaft Diameter 2.125 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1775 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding Normally Closed Thermostat
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 460 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
