Baldor ZDVSM3774T - 10 HP, 1760RPM, 3 Phase, 60HZ, 215TC, 0748M, TEFC, F 60HZ Three Phase 10 HP 0748 M Cable

Save $1,948.75
BaldorSKU: ZDVSM3774T

Price:
Sale price$5,846.25 Regular price$7,795.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

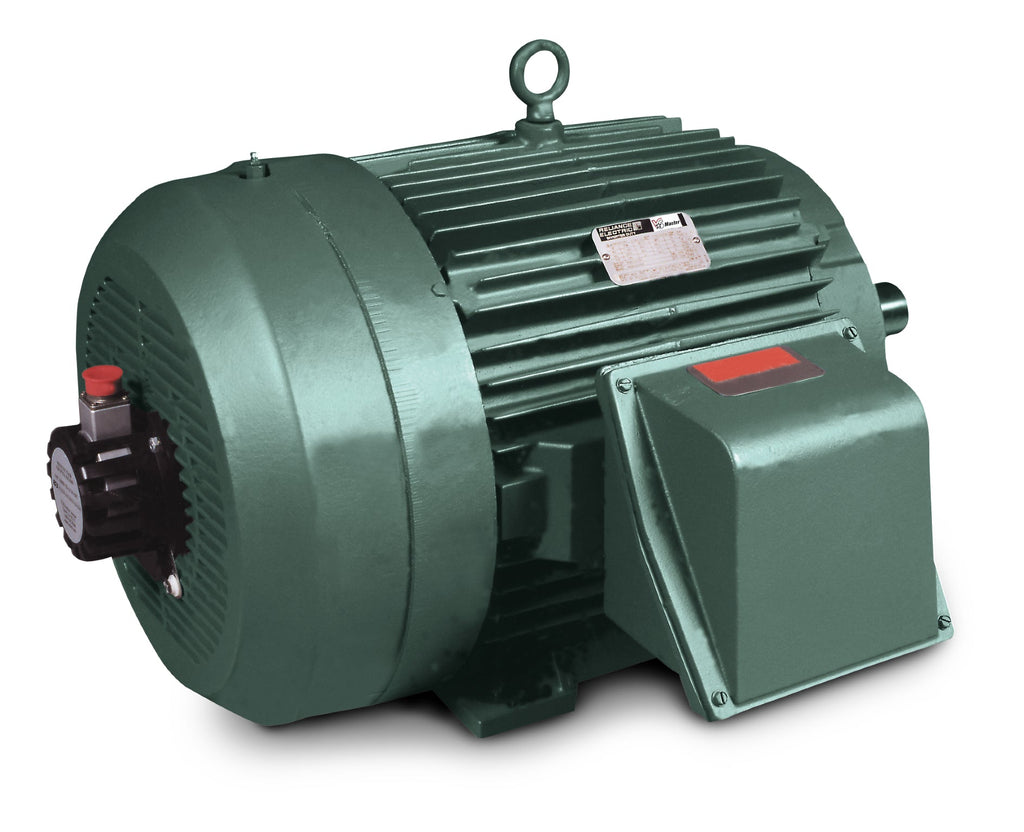

Baldor-Reliance AC VS Master Motors - Model ZDVSM3774T

Introducing the Baldor ZDVSM3774T, a high-performance AC VS Master Motor designed for demanding applications. With a robust 10 HP power output and a speed of 1760 RPM, this 3-phase motor operates efficiently at 60Hz, making it an ideal choice for various industrial and commercial uses.

Specifications:

  • Power: 10 HP
  • Speed: 1760 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 215TC
  • Model Number: 0748M
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)

This motor is engineered for durability and reliability, making it a preferred choice for those seeking quality and performance. At Pump-Stop, we pride ourselves on being the go-to source for replacement pumps and parts, ensuring you have access to the best products for your needs.

If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor ZDVSM3774T to ensure compatibility. Our team is here to help you find the perfect solution!

UPC 781568469002
Supplier Part Number ZDVSM3774T
Category AC Motors
Subcategory AC VS Master Motors
Product Family General Purpose
Agency Approvals UR, CSA
Ambient Temperature 40 °C
Approximate Weight (lbs) 210.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number ZDVSM3774T
Current @ Voltage 12.500 A @ 460.0 V, 25.000 A @ 230.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 92.4 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device ENCODER
Frame 215TC
Frame Material Cast Iron
Frequency 60.00 Hz
Front Face Code Encoder/Feedback Device
Front Shaft Indicator No Key Or Flat
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 12.5 a
Insulation Class F
Inverter Code Inverter Duty
KVA Code H
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Max Speed 4500 rpm
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 14 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 0748M
Mounting Arrangement F1
Number of Poles 4
Output 10.000 hp
Output @ Frequency 10.000 HP @ 60 HZ
Overall Length 24.59 IN
Phase 3
Power Factor 82
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS NON-COMPLIANT
Service Factor 1
Shaft Diameter 1.375 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1760 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding Normally Closed Thermostat
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
