Baldor ZDVSM3665T - 5 HP, 1750RPM, 3 Phase, 60HZ, 184TC, 0641M, TEFC, F1 60HZ Three Phase 5 HP 0641 M Cable

Save $1,445.00
BaldorSKU: ZDVSM3665T

Price:
Sale price$4,335.00 Regular price$5,780.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

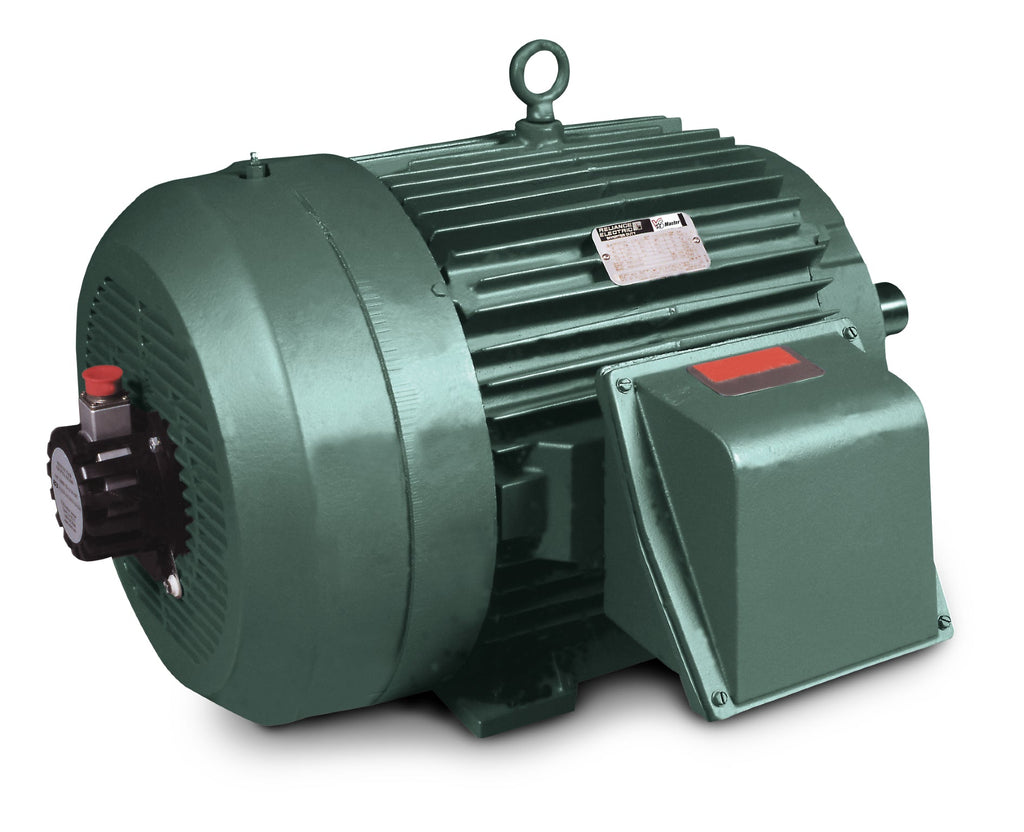

Baldor ZDVSM3665T - 5 HP AC VS Master Motor

Upgrade your industrial applications with the Baldor ZDVSM3665T, a high-performance 5 HP, 1750 RPM, 3-phase AC VS Master Motor. Designed for reliability and efficiency, this motor operates at 60Hz and features a 184TC frame size, making it ideal for various demanding environments.

Key specifications include:

  • Power: 5 HP
  • Speed: 1750 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame Size: 184TC
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Product Code: ZDVSM3665T

This Baldor-Reliance motor is engineered for durability and optimal performance, making it a perfect choice for various applications in manufacturing and processing. At Pump-Stop, we are your preferred source for replacement pumps and parts, ensuring you find the right solution for your needs.

If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor ZDVSM3665T to ensure compatibility. Don't hesitate to reach out if you need help!

UPC 781568468982
Supplier Part Number ZDVSM3665T
Category AC Motors
Subcategory AC VS Master Motors
Product Family General Purpose
Agency Approvals UR, CSA
Ambient Temperature 40 °C
Approximate Weight (lbs) 129.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number ZDVSM3665T
Current @ Voltage 13.200 A @ 230.0 V, 6.600 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 89.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device ENCODER
Frame 184TC
Frame Material Cast Iron
Frequency 60.00 Hz
Front Face Code Encoder/Feedback Device
Front Shaft Indicator No Key Or Flat
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 6.6 a
Insulation Class F
Inverter Code Inverter Duty
KVA Code J
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Max Speed 4000 rpm
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 16 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 0642M
Mounting Arrangement F1
Number of Poles 4
Output 5.000 hp
Output @ Frequency 5.000 HP @ 60 HZ
Overall Length 20.23 IN
Phase 3
Power Factor 79
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS NON-COMPLIANT
Service Factor 1
Shaft Diameter 1.125 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1750 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding Normally Closed Thermostat
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 460 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
